Flomec

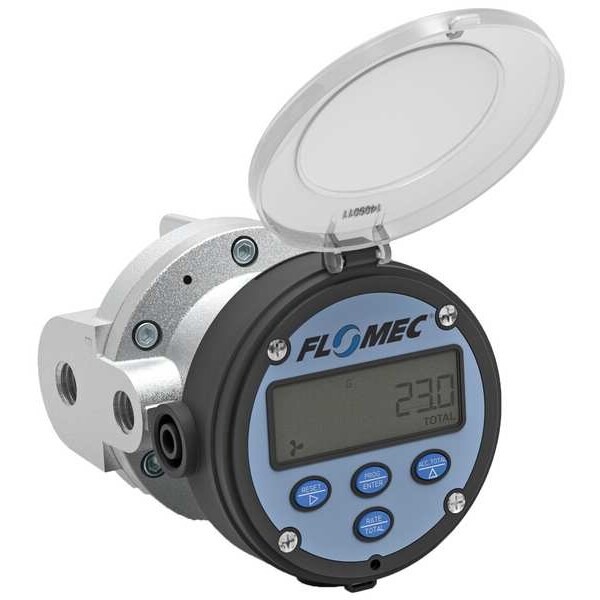

Electronic Flowmeter, 1/2", FNPT, 2.68" L

product price: $1,316.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Oval Gear
  • Housing Material Aluminum
  • For Pipe Size 1/2 in
  • Flow Material High Viscosity, Lubricants, Oil, Thick Fluids
  • Connection Size 1/2 in
See all product information

Product Information

  • Brand Flomec
  • MFR # OM015A001-822R5G
  • Zoro # G600690097
  • Country of Origin Australia
  • Category Flowmeters

Dimensions

For Pipe Size 1/2 in
Connection Size 1/2 in
Length (In.) 4 3/10 in
Width (In.) 4 3/10 in
Height (In.) 6 in
Overall Width 4.3 in
Overall Length 4.3 in
Overall Height 6 in
Manufacturer Warranty Length 1 yr

Details

Item Electronic Flowmeter
Type Oval Gear
Housing Material Aluminum
Flow Material High Viscosity, Lubricants, Oil, Thick Fluids
Connection Type FNPT
Max. Pressure 990 psi
Max. Viscosity 1,000 cps
Frequency Range (Hz) 2.8 to 112
Wetted Materials Aluminum, Ceramic, FKM, PPS
Flow Range 0.26 to 10.6 gpm
Fluid Temp. Range -22 Degrees to 176 Degrees F
Power Requirement 8 to 24 V DC
Display Type Digital
Flow Range (GPM) 0.26 to 10.6
Flow Range (LPM) 1 to 40
Flow Range @ GPH 15.6 to 636
O-Ring FKM
Accuracy (%) +/- 0.5
Display Units gal
Standards CE Certified
Rotor Type PPS Oval Gear
Shaft Material Stainless Steel
Seal Material Viton
Sensor Type Oval Gear
Output Type 4-20 mA
Media Temperature - Minimum 14 Degrees F
Rotor Material PPS
Unit Of Measure Gallons, Liters
Wetted Material Aluminum, Ceramic, Viton, PPS, Stainless Steel
Voltage - Maximum 30V DC
Accuracy +/-0.5%
Includes Totalizer Yes
Flow Rate - Maximum 10.6 gpm
Operating Pressure - Maximum 990 psi
Viscosity - Maximum 1,000 cps
Product Type Oval Gear Flow Meter
Media Temperature - Maximum 140 Degrees F
Frequency - Minimum 2 4/5 Hz
Frequency - Maximum 112 Hz
Flow Rate - Minimum 0.26 gpm
Compatible Flow Material Fuel Oils, Fuels, Grease, Lubricants, Oils

Description

Electronic Flowmeter, Product Type Oval Gear Flow Meter, Accuracy +/-0.5 Percent, Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Fuel Oils, Fuels, Grease, Lubricants, Oils, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 1,000 cps, Voltage - Maximum 30V DC, Housing Material Aluminum, Rotor Material PPS, Seal Material Viton, Shaft Material Stainless Steel
