  9. Flowmeter, Nutating Disc, PTB, 1 In FNPT
Shop All Flowmeters
Flomec

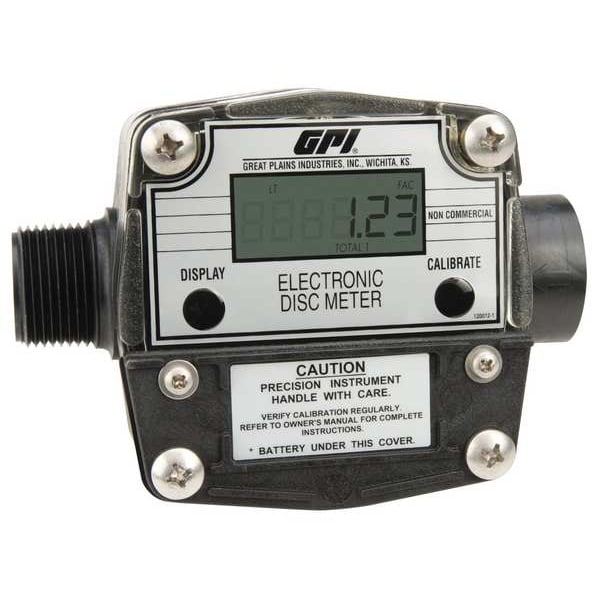

Flowmeter, Nutating Disc, PTB, 1 In FNPT

product price: $533.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material PBT
  • Type Nutating Disc
  • Flow Material Agricultural Chemicals
  • Connection Size 1/2 in
  • Connection Type FNPT
See all product information

Product Information

Dimensions

Connection Size 1/2 in
Length (In.) 6 in
Fitting Size (In.) 1
Overall Length 6 in
Manufacturer Warranty Length 2 yr
Overall Width 2.1 in

Details

Item Electronic Flowmeter
Housing Material PBT
Type Nutating Disc
Flow Material Agricultural Chemicals
Connection Type FNPT
Max. Pressure 50 psi
Max. Viscosity 463 SUS
Wetted Materials 316 Stainless Steel, Ferrite, Fluorocarbon, PBT Polyester
Flow Range 2 to 20 gpm
Fluid Temp. Range 15 Degrees to 130 Degrees F
O-Ring Fluorocarbon
Flow Range (LPM) 7 to 75
Includes Battery
Fitting Type 1" FNPT Inlet, 1MNPT Outlet
Agency Compliance CE
Flow Range (GPM) 2 to 20
Pressure Rating (PSI) 50
Display Units L
Rotor Type PTB Polyester
Display Type Digital
Flow Range @ lessthan 5 cps 2 to 20 gpm
Fluid Temp. Range (Deg. C) 15F to 130F
Special Features Battery Powered, Rate And Total Indication
Flow Range @ GPH 120 to 13200
Repeatability .5
Accuracy (%) +/-2
Fluid Temp. Range (Deg. F) 15 to 130
Ambient Temperature 32 to 140 Degrees F
Seal Material Viton
Standards CE Certified
Output Type 4-20 mA
Flow Rate - Minimum 7 lpm
Operating Pressure - Maximum 50 psi
Rotor Material PBT
O-Ring Material Viton
Media Temperature - Maximum 130 Degrees F
Product Type Flow Meter
Flow Rate - Maximum 75 lpm
Includes Totalizer Yes
Viscosity - Maximum 463 SUS
Accuracy +/-2%
Media Temperature - Minimum 15 Degrees F
Flowmeter Type Turbine
Wetted Material 304 Stainless Steel, Ferrite, Viton, PBT
Compatible Flow Material Water
Unit Of Measure Liters

Description

Electronic Flowmeter, Product Type Flow Meter, Flowmeter Type Turbine, Accuracy +/-2 Percent, Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum 15 Degrees F, Viscosity - Maximum 463 SUS, Housing Material PBT, Rotor Material PBT, O-Ring Material Viton, Seal Material Viton, Wetted Material 304 Stainless Steel, Ferrite, Viton, PBT, Standards CE Certified, Unit Of Measure Liters, Output Type 4-20 mA

Restrictions

  • Hazardous material
