Shop All Water Testing Meters
Flomec

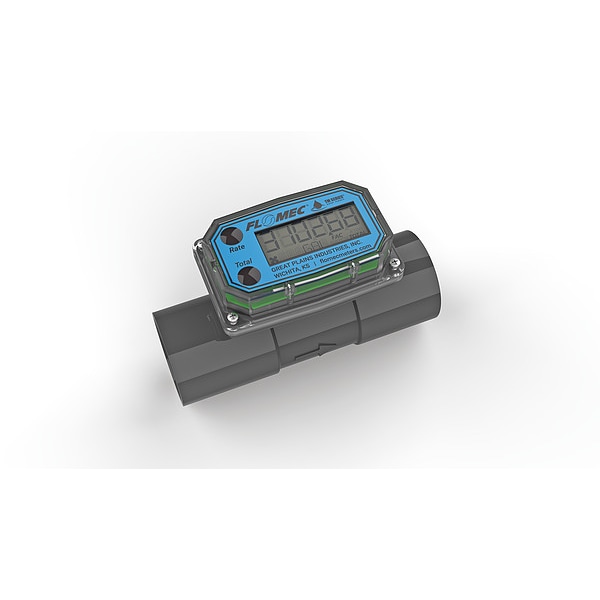

Watermeter

product price: $524.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Turbine
  • Accuracy +/-3%
  • Frequency Range (Hz) 36 to 360
  • Sensor Type Turbine
  • Power Requirement Two Alkaline AAA Batteries
See all product information

Product Information

Dimensions

For Pipe Size 1 1/2 in
Length (In.) 5 2/5 in
Width (In.) 2 1/10 in
Connection Size 1 1/2 in
Height (In.) 3 3/5 in
Overall Height 0.9 in
Overall Length 5.4 in
Overall Width 2.1 in
Manufacturer Warranty Length 1 yr

Details

Item Watermeter
Type Turbine
Accuracy +/-3%
Frequency Range (Hz) 36 to 360
Sensor Type Turbine
Power Requirement Two Alkaline AAA Batteries
Flow Range (LPM) 38 to 380
Connection Type Spigot
Standards CE Certified
Housing Material PVC
Wetted Materials 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide
Rotor Type PVDF
Max. Pressure 225 psig
Flow Material Water-based non-corrosive fluids
Flow Range @ GPH 600 to 6000
Display Units Barrels, Cubic Centimeters, Cubic Feet, Cubic Meters, Imperial Gallons, Liters, Ounces, Quarts, gal
Display Type Digital
Max. Viscosity 20 cps
Flow Range (GPM) 10 to 100
Flow Range 10 to 100 gpm
Fluid Temp. Range 32 Degrees to 140 Degrees F
Accuracy (%) +/- 3
Viscosity - Maximum 20 cps
Media Temperature - Maximum 140 Degrees F
Output Type 4-20 mA
Shaft Material Tungsten Carbide
Wetted Material 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide
Frequency - Minimum 1/4 kHz
Product Type Water Meter
Rotor Material PVDF
Media Temperature - Minimum 32 Degrees F
Flowmeter Type Turbine
Operating Pressure - Maximum 225 psi
Unit Of Measure Gallons, Liters
Flow Rate - Minimum 10 gpm
Compatible Flow Material Water
Frequency - Maximum 3 Hz
Includes Totalizer Yes
Flow Rate - Maximum 100 gpm
Mounting Orientation Universal

Description

Watermeter, Product Type Water Meter, Flowmeter Type Turbine, Accuracy +/-3 Percent, Connection Size 1 1/2 in, Connection Type Spigot, Compatible Flow Material Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVC, Rotor Material PVDF, Shaft Material Tungsten Carbide, Wetted Material 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide, Standards CE Certified, Unit Of Measure Gallons, Liters
