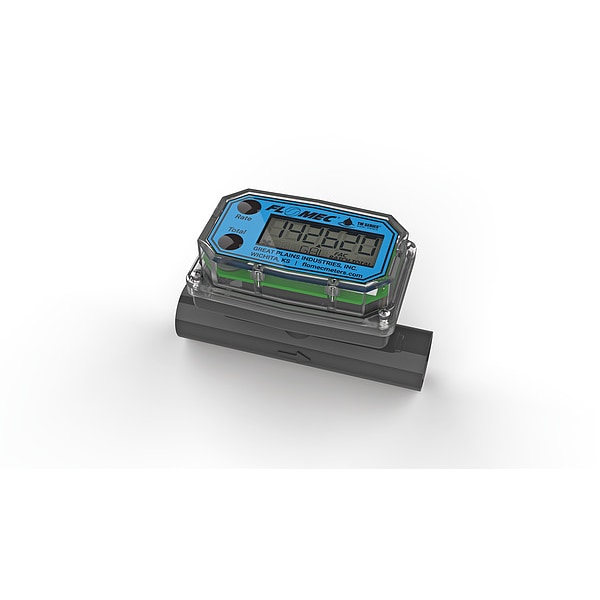

Watermeter

Mfr # TM07SQ9GMA
Zoro # G800389821

$471.62

17% off

$388.00

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Turbine
Accuracy +/-3%
Fluid Temp. Range 32 Degrees to 140 Degrees F
Height (In.) 2 7/10 in
Flow Material Water-based non-corrosive fluids

See all product information

Brand Flomec
MFR # TM07SQ9GMA
Zoro # G800389821
UPC #
41112501
Country of Origin United States
Category Water Testing Meters

Dimensions

Height (In.)	2 7/10 in
Width (In.)	2 1/10 in
For Pipe Size	3/4 in
Length (In.)	4 2/5 in
Connection Size	3/4 in
Overall Width	2.1 in
Overall Height	0.9 in
Overall Length	3.8 in
Manufacturer Warranty Length	1 yr

Details

Item	Watermeter
Type	Turbine
Accuracy	+/-3%
Fluid Temp. Range	32 Degrees to 140 Degrees F
Flow Material	Water-based non-corrosive fluids
Flow Range (LPM)	7.6 to 76
Wetted Materials	316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide
Frequency Range (Hz)	37 to 370
Display Type	Digital
Connection Type	Spigot
Flow Range @ GPH	120 to 1200
Standards	CE Certified
Display Units	Barrels, Cubic Centimeters, Cubic Feet, Cubic Meters, Imperial Gallons, Liters, Ounces, Quarts, gal
Accuracy (%)	+/- 3
Power Requirement	Two Alkaline AAA Batteries
Flow Range (GPM)	2 to 20
Sensor Type	Turbine
Rotor Type	PVDF
Housing Material	PVC
Flow Range	2 to 20 gpm
Max. Viscosity	20 cps
Max. Pressure	225 psig
Flow Rate - Maximum	20 gpm
Flowmeter Type	Turbine
Flow Rate - Minimum	2 gpm
Wetted Material	316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide
Mounting Orientation	Universal
Media Temperature - Minimum	32 Degrees F
Rotor Material	PVDF
Includes Totalizer	Yes
Compatible Flow Material	Water
Unit Of Measure	Gallons, Liters
Viscosity - Maximum	20 cps
Frequency - Minimum	1/4 kHz
Media Temperature - Maximum	140 Degrees F
Product Type	Water Meter
Frequency - Maximum	3 kHz
Operating Pressure - Maximum	225 psi
Shaft Material	Tungsten Carbide
Output Type	4-20 mA

Description

Watermeter, Product Type Water Meter, Flowmeter Type Turbine, Accuracy +/-3 Percent, Connection Size 3/4 in, Connection Type Spigot, Compatible Flow Material Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVC, Rotor Material PVDF, Shaft Material Tungsten Carbide, Wetted Material 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide, Standards CE Certified, Unit Of Measure Gallons, Liters
