Shop FLOMEC

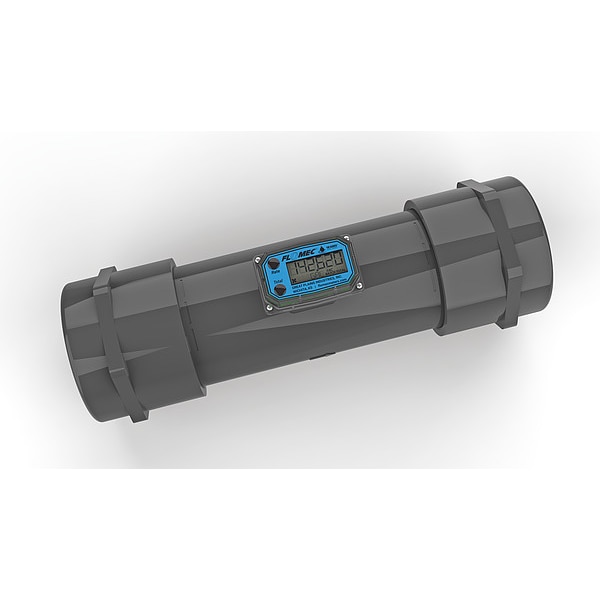

Watermeter

  • Mfr # TM40NQ9GME

  • Zoro # G000389829

product price:  $1,307.99
/ea
Free Shipping & Returns

Key Features

Standards
CE Certified, NSF/ANSI
Width (In.)
5 87/100 in
Max. Viscosity
20 cps
Flow Range (LPM)
227 to 2271
Flow Range
60 to 600 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TM40NQ9GME
Zoro #
G000389829
UPC #
41112501
Country of Origin
United States

Dimensions

Width (In.)
5 87/100 in
Height (In.)
6 7/10 in
Length (In.)
17 in
Connection Size
4 in
For Pipe Size
4 in
Overall Length
17 in
Overall Width
2.1 in
Manufacturer Warranty Length
1 yr
Overall Height
0.9 in

Details

Item
Watermeter
Standards
CE Certified, NSF/ANSI
Max. Viscosity
20 cps
Flow Range (LPM)
227 to 2271
Flow Range
60 to 600 gpm
Power Requirement
Two Alkaline AAA Batteries
Sensor Type
Turbine
Wetted Materials
Acetal, Ferrite, PEEK, PVC, Stainless Steel
Accuracy
+/-3%
Type
Turbine
Rotor Type
PVDF
Max. Pressure
225 psig
Flow Range @ GPH
3600 to 36000
Display Type
Digital
Connection Type
FNPT
Display Units
Barrels, Cubic Centimeters, Cubic Feet, Cubic Meters, Imperial Gallons, Liters, Ounces, Quarts, gal
Frequency Range (Hz)
17 to 170
Accuracy (%)
+/- 3
Housing Material
PVC
Flow Range (GPM)
60 to 600
Flow Material
Water-based non-corrosive fluids
Fluid Temp. Range
32 Degrees to 140 Degrees F
Flowmeter Type
Turbine
Product Type
Flow Meter
Frequency - Maximum
3 kHz
Includes Totalizer
Yes
Compatible Flow Material
Water
Viscosity - Maximum
20 cps
Media Temperature - Minimum
32 Degrees F
Output Type
4-20 mA
Wetted Material
Acetal, Ferrite, PEEK, PVC, Stainless Steel
Rotor Material
Acetal
Flow Rate - Maximum
600 gpm
Shaft Material
Stainless Steel
Frequency - Minimum
1/4 kHz
Mounting Orientation
Universal
Flow Rate - Minimum
60 gpm
Media Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
225 psi
Unit Of Measure
Gallons, Liters

Description

Watermeter, Product Type Flow Meter, Flowmeter Type Turbine, Accuracy +/-3 Percent, Connection Size 4 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVC, Rotor Material Acetal, Shaft Material Stainless Steel, Wetted Material Acetal, Ferrite, PEEK, PVC, Stainless Steel, Standards CE Certified, NSF/ANSI, Unit Of Measure Gallons, Liters, Output Type 4-20 mA
