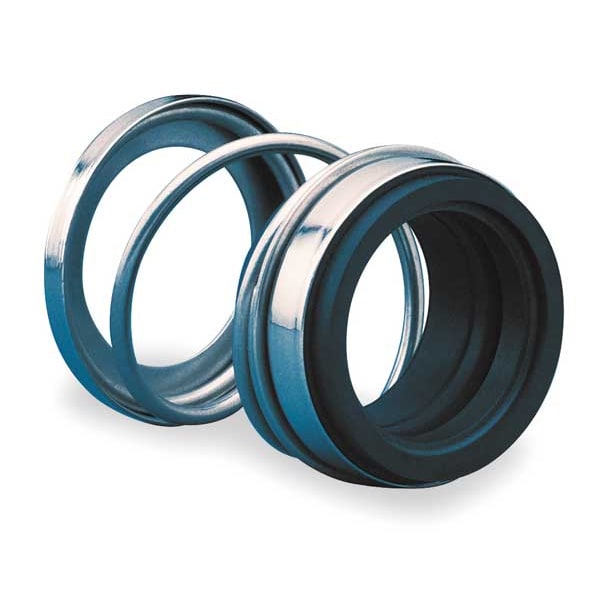

Seal, Pump Shaft, 1 In
Mfr # 52-100-05
Zoro # G1306322
product price: $87.15
/ea
Free Shipping & Returns
Key Features
Shaft Size (In.)
1 in
Nominal Working Length (In.)
1 in
Seat Bore
1.625 in
Seat Thickness
0.437 in
Replacement For
US Seal Types E, D and Crane Types 1 and 2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
52-100-05
Zoro #
G1306322
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Size (In.)
1 in
Nominal Working Length (In.)
1 in
Seat Thickness
0.437 in
Working Length
1 in
For Shaft Diameter
1 in
Details
Seat Bore
1.625 in
Replacement For
US Seal Types E, D and Crane Types 1 and 2
Max. Temp. (F)
400 Degrees F
Material Content Code
VCRJR
Seal Type
52
Item
Narrow Cross-section Replacement Pump Shaft Seal
Min. Temp. (F)
-25 Degrees F
Spring Material
316 Stainless Steel
Seal Type Designation
52
Spring Type
Single Spring
Maximum Temperature
400 Degrees F
Standards
ISO 9001, TS16949
Gasket Material
Rubber
Minimum Temperature
-40 Degrees F
Compatible with Media Type
Chemical, Wastewater
Shaft Seal Type
Mechanical Shaft Seal
Shut Off Pressure (Maximum)
150 psi
Description
Narrow Cross-section Replacement Pump Shaft Seal, For Shaft Diameter 1 in, Gasket Material Rubber, Compatible with Media Type Chemical, Wastewater, Seal Type Designation 52, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 150 psi, Spring Material 316 Stainless Steel, Spring Type Single Spring, Standards ISO 9001, TS16949, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Working Length 1 in
