Shop FLOWSERVE

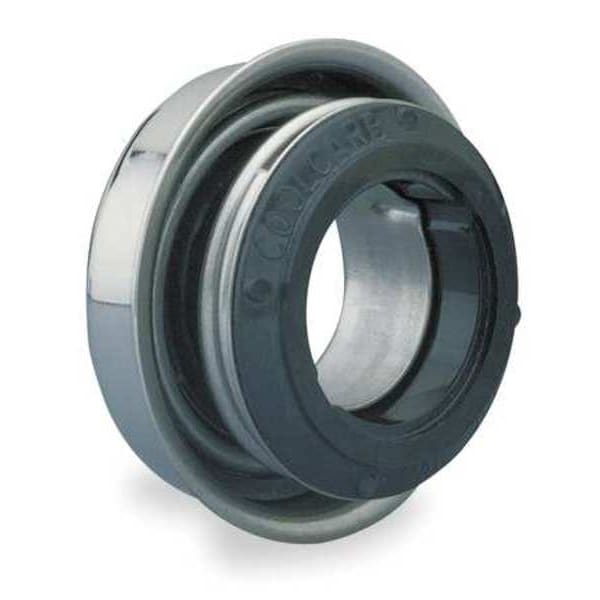

Seal, Pump Shaft, 5/8 In

  • Mfr # 68-062-214

  • Zoro # G2562971

product price:  $75.99
/ea

Key Features

Shaft Size (In.)
5/8 in
Nominal Working Length (In.)
0.615 in
Seat Bore
1.25 in
Seat Thickness
0.0875 in
Standard Industry Seal Number
668
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
68-062-214
Zoro #
G2562971
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Size (In.)
5/8 in
Nominal Working Length (In.)
0.615 in
Seat Thickness
0.0875 in
For Shaft Diameter
5/8 in
Working Length
0.62 in
Seal Head Inside Diameter
0.625 in
Seal Head Outside Diameter
1.25 in
Seat Outside Diameter
1.61 in
Seal Head Thickness
0.2125 in
Seat Inside Diameter
0.625 in

Details

Seat Bore
1.25 in
Standard Industry Seal Number
668
Seal Type
68
Material Content Code
BMFJF
Min. Temp. (F)
-40 Degrees F
Seal Bore (In.)
7/16 in
Replacement For
5P368, 5P369
Item
Replacement Pump Shaft Seal
Max. Temp. (F)
225 Degrees F
Compatible with Media Type
Diesel, Water
Seal Type Designation
68
Minimum Temperature
-40 Degrees F
Spring Material
Stainless Steel
Standards
ISO 9001, TS16949
Maximum Temperature
400 Degrees F
Spring Type
Single Spring
Gasket Material
Buna-N
Shut Off Pressure (Maximum)
75 psi
Shaft Seal Type
Mechanical
Temperature (Minimum)
-40 Degrees F
Product Type
Component Mechanical Seal
Shaft Speed - Maximum
82 fps
Ring Material
Ceramic
Compatible with Pump Type
Centrifugal Pump, Straight Centrifugal Pump
Temperature (Maximum)
400 Degrees F
Chemical Compatibility
Diesel, Water
Shut Off Pressure - Maximum
75 psi
Seal Arrangement
Single
Spring Configuration
Single Spring
Bellows Material
Buna-N

Description

Replacement Pump Shaft Seal, For Shaft Diameter 5/8 in, Gasket Material Rubber, Compatible with Media Type Diesel, Water, Replaces Grainger Seal 5P368, 5P369, Seal Type Designation 68, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 75 psi, Spring Material Stainless Steel, Spring Type Single Spring, Standards ISO 9001, TS16949, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Working Length 0.62 in
