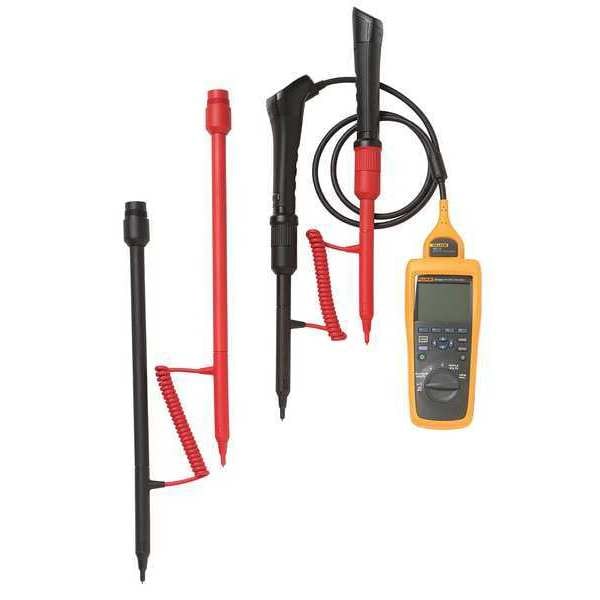

Fluke Battery Cap Analyzer, 600V, Test Probe Set FLUKE-BT520 - main

Battery Cap Analyzer, 600V, Test Probe Set

  • Mfr # FLUKE-BT520

  • Zoro # G9123764

product price:  $6,379.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL20 Intelligent Test Probe Set with Extender (no Temperature Sensor), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries Up to 600V
Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (30 milliohm); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 1% + 8 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Powered By
7.2V Lithium-Ion Battery
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-BT520
Zoro #
G9123764
UPC #
095969780209
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Battery Capacity Analyzer
Includes
(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL20 Intelligent Test Probe Set with Extender (no Temperature Sensor), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries Up to 600V
Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (30 milliohm); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 1% + 8 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Powered By
7.2V Lithium-Ion Battery
Max. Input Volts
1,000V DC
Measures
AC and DC Voltage, Resistance, Ripple Voltage
Tester Battery Chemistry
Lithium Ion
Includes Tester Batteries
Batteries Included
Batteries Tested
Lithium-Ion
Calibration Certificate Type
Not Certified
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Input Voltage - Maximum
600 V
Testing Functions
AC Current, AC Voltage, Battery Discharge, DC Current, DC Voltage, Frequency, Resistance, Ripple Voltage
Input Voltage - Minimum
6 V
Digital Display Screen Type
LCD
Tester Number of Batteries Required
1
Calibration Certificate Included
No Certification Included
Tester Battery Voltage
7.4V

Description

Battery Capacity Analyzer, Works With Batteries Up to 600V, Measures Resistance, DC and AC Voltage, Ripple Voltage, Max. Input Volts 1000 DC, Powered By 7.2V Lithium-Ion battery, LCD Display, Includes Basic Test Lead, Twist Guard Test Lead, Probe Adapter, Probe Light, Interactive Test Probe Set, Battery, Charger, Power Cord, Mini USB, Belt Strap, Shoulder Strap, Magnetic Hanger, Software CD with Operator Manual, Warranty Card, Quick Reference Guide, Spare Fuse, Zero Calibration Board, Soft Case

Restrictions

Hazardous material
