This item is Discontinued.

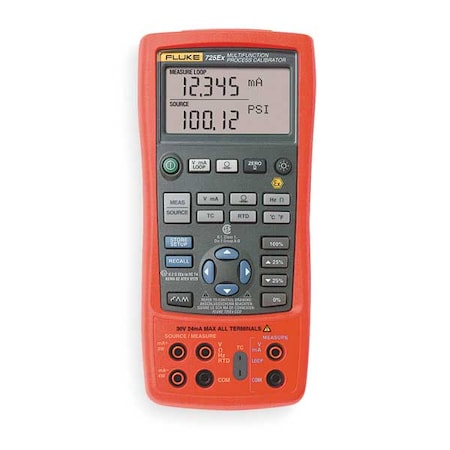

Fluke Calibrator, Intrinsically Safe FLUKE-725EX

Calibrator, Intrinsically Safe (Discontinued)

  • Mfr # FLUKE-725EX
  • Zoro # G0996773
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-725EX
Zoro #
G0996773
UPC #
095969242370
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr

Details

Current Measurement Range
0 to 24mA DC
Item
Multifunction Calibrator
Voltage Measurement Range
0 to 30V DC
Loop Supply Voltage
12V DC
Thermocouple Type
B, BP, E, J, K, L, N, R, S, T, U, XK
Source Voltage
0.01 to 10V DC
Intrinsically Safe
Yes
Pressure Modules
8
RTD Type
Ni 120, Pt 100 (385), Pt 100 (3926), Pt 100 (JIS), Pt 1000 (385), Pt 200 (385), Pt 500 (385)
RTD Temperature Range
-200 Degrees to 800 Degrees C, -328 Degrees to 1472 Degrees F
Basic DC Accuracy
+/-0.02% + 2 Digits
Measurement Functions
F, mA, Ohms, P*, T, V
Source Current
0 to 24mA DC
Thermocouple Temperature Range
-200 Degrees to 1800 Degrees C, -328 Degrees to 3182 Degrees F
Resistance Measurements
15 to 3200 ohm
Source/Simulate
F, mA, Ohms, P*, T, V
External Pressure Range
Dependent On Pressure Module
Calibration Certificate
NIST
Displayed Pressure Units
bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, Psi
Includes
Test Clips, Test Leads
Frequency Measurement Range
1 Hz to 10 kHz, 2 to 1000 CPM
Frequency Source Range
1 Hz to 10 kHz, 2 to 1000 CPM
Safety Rating
ATEX II 1G EEx ia IIB 171 Degrees C KEMA 04ATEX 1303X, I.S. Class I, Division 1 Groups B-D, 171 Degrees C compliance
Max. Loop Current
22 mA DC
Display
Multiline LCD
Powered By
(4) AA batteries
Resistance Source
15 to 3200 ohm
Parameters Measured
RTD, TC

Description

Multifunction Calibrator, Voltage Measurement Range 0 to 30V DC, Loop Supply Voltage 12V DC, Intrinsically Safe Yes, Pressure Modules 8, Measurement Functions F, mA, Ohms, P*, T, V, Source Current 0 to 24mA DC, Current Measurement Range 0 to 24mA DC, Basic DC Accuracy +/-0.02 Percent + 2 Digits, Thermocouple Temperature Range -200 Degrees to 1800 Degrees C, -328 Degrees to 3182 Degrees F, Powered By (4) AA Batteries, Includes Test Clips, Test Leads
