Fluke

Clamp Meter, Backlit LCD, 600 A, 1.3 in (33 mm) Jaw Capacity


original price: $345.24
9% off
new price: $311.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Digital/Analog Digital
  • Max. AC Amps 600
  • Clamp Meter Jaw Style Clamp On
  • Max. DC Volts 600
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 3 yr
Battery Size AA
Overall Height 1.8 in
Overall Width 3.3 in

Details

Promotion Restriction Not eligible for promotion
Item Digital Clamp Meter
Digital/Analog Digital
Max. AC Amps 600
Clamp Meter Jaw Style Clamp On
Max. DC Volts 600
Max. Ohms 6,000
Jaw Capacity 1.3 in (33 mm)
Safety Rating CAT III 600V, CAT IV 300V
Display Backlit LCD
Jaw Opening 1.3 in
Max. AC Volts 600 V
Calibration Frequency 55 to 60 Hz
Auto Power Off Yes
Standards ANSI/ISA S82.02.01:2004, CAN/CSA-C22.2 No 61010-1-04, CE, CSA, IEC/EN61010-1:2001
Data Hold Yes
Audible Continuity Yes
Battery Type AA

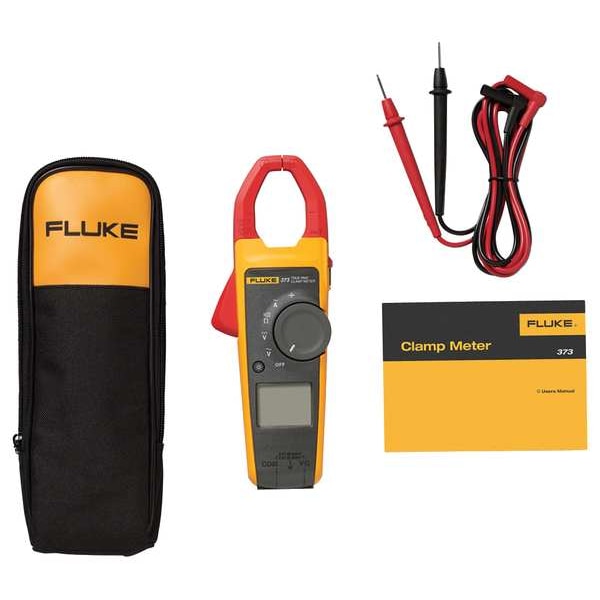

Includes Soft Carrying Case, TL76 Test Leads
AC Current Accuracy +/-2.0% + 5 Digits
Auto Ranging Yes
Counts 6,000
Operating Temp. 14 Degrees to 122 Degrees F
Special Features Signal Processing Allows for use in Noisy Electrical Environments While Providing Stable Readings
Inrush Yes
AC Response TRMS
Data Logging Yes
Basic DC Voltage Accuracy 1 % +/- 5 digits
Resistance Measurement Resolution 0.1 ohm
Minimum Operating Temperature 14 Degrees F
Maximum AC Current Measurement 600 A
Maximum Resistance Measurement 6,000 ohm
AC Current Measurement Resolution 0.1 A
Resistance Measurement Accuracy 1 % +/- 5 digits
Batteries Included Yes
Capacitance Measurement Accuracy 1.9 % +/- 2 digits
Maximum DC Voltage Measurement 600 V
Dustproof No
Maximum Operating Temperature 122 Degrees F
Calibration Certificate Included No
Basic AC Current Accuracy 2 % +/- 5 digits (48 - 62 Hz)
Instrument Counts 6,000
Removable Screen No
Intrinsically Safe No
AC Voltage Measurement Resolution 0.1 V
Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Resistance
Jaw Style Clamp-Jaw
Maximum AC Voltage Measurement 600 V
DC Voltage Measurement Resolution 0.1 V
Thermal Imaging No
Capacitance Measurement Resolution 0.1 uF
Bluetooth Compatible No
Maximum Storage Temperature 140 Degrees F
Waterproof No
Basic AC Voltage Accuracy 1.0 % +/- 5 digits (48 - 62 Hz)
Current Leakage Testing No
AC Response Calculation TRMS
Display Type Backlit LCD

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, CAT IV 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
