  9. Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT

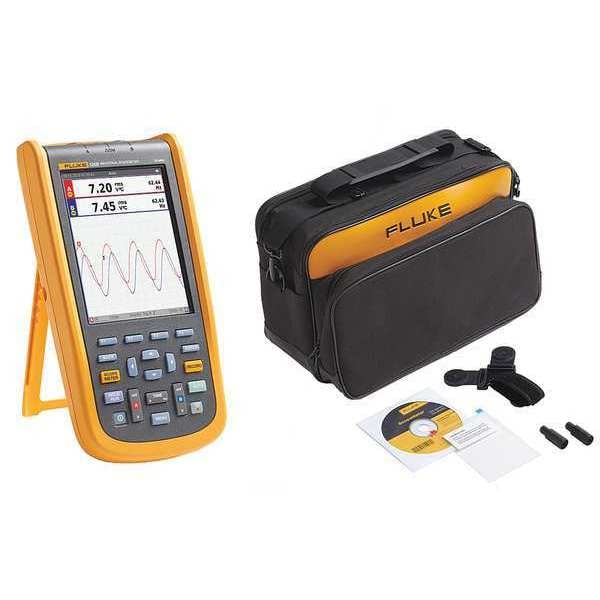

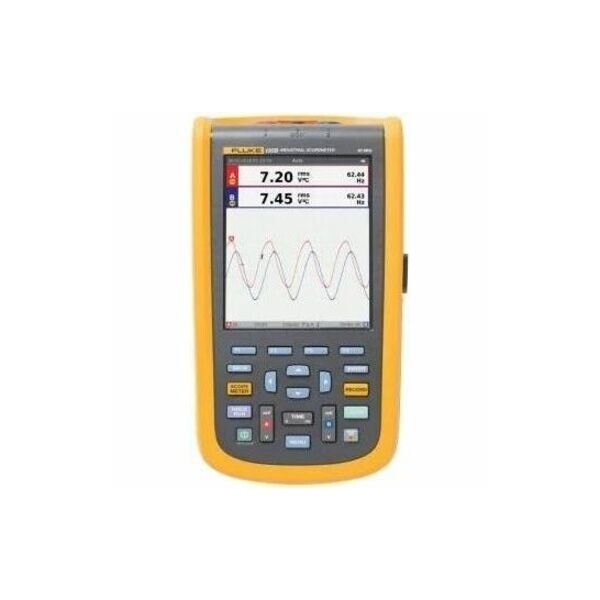

Fluke Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT FLUKE-125B/NA/S - main

Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT

  • Mfr # FLUKE-125B/NA/S

  • Zoro # G3782296

product price: $4,353.99
/ea
Free Shipping & Returns

Key Features

Bandwidth (MHz)
40 MHz
Channels
2
Display
5.7 in Color TFT
Max./Min. Sweep Speed
10 nsec/div to 60 sec/div
Max. Record Length
512 Min/Max Points Per Input
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-125B/NA/S
Zoro #
G3782296
UPC #
095969817103
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
40 MHz
Max. Record Length
512 Min/Max Points Per Input
Manufacturers Warranty Length
3 yr
Display Screen Length
5.7 in
Bandwidth
40 MHz
Memory Depth
400 Mpts

Details

Item
Compact Handheld Oscilloscope
Channels
2
Display
5.7 in Color TFT
Max./Min. Sweep Speed
10 nsec/div to 60 sec/div
Features
Connect Systems of Software Enabled, FLUKE 125 Series, Connect-And-View Auto Trigger, Industrial Network Bus Physical Layer Test, Meter and Waveform Recording with Event Detect, Power and Harmonics, Technology Automatically Sets Numeric Readings Based on Wave Shape
Interface
USB, Wireless
Safety Rating
Cat IV 600V
Battery Type
Li-Ion
Real Time Clock
Yes
FFT Analysis
Yes
Persistence
No
Waveform / Measurement Stored
20
Glitch Capture
Yes
Sampling Rate
400 KS/s
Capacitance Measurements
Yes
Input Sensitivity
5 mV/div to 200 V/div
Battery Life
7 hr
Cursors & Zoom
Yes
Battery Pack Recharge Time (Hr.)
4 hr
Includes
AC Power Adapter, Banana-to-BNC Adapters (Black), Set Hook of Clips (Red, Blue), Shielded Test Leads with Black Ground Leads Pair, Switch Mode Power Supply, Pair of Black Test Lead, USB Angled Adapter, Wi-Fi USB Adapter
Triggering Mode
Repeat
True RMS
Yes
Green Environmental Attribute
Product is Rechargeable
Cursors and Zoom
Yes
Capacitance Measurement - Minimum
50 nF
AC Voltage Measurement - Maximum
1,100 V AC
Power Source
AC Adapter, Battery
Input Sensitivity - Minimum
5 mV/div
Digital Display Screen Type
TFT LCD
DC Voltage Measurement - Maximum
750 V DC
DC Current Measurement - Maximum
0.5 mA
AC Magnitude Calculation
True RMS
DC Current Measurement - Minimum
500 nA
Body Style
Handheld
Calibration Certificate Type
Not Certified
Battery Chemistry
Lithium Ion
AC Voltage Measurement - Minimum
500 mV AC
Battery Run Time
7 hr
Capacitance Measurement - Maximum
500 uF
Number of Channels
2
IP Rating
IP51
DC Voltage Measurement - Minimum
500 mV DC
Input Sensitivity - Maximum
200 V/div
CAT Safety Rating
CAT III 750V, CAT IV 600V
Includes Batteries
Batteries Included
Sound Level Measurement - Maximum
-3 dB
Channel Source Isolation
Fully Isolated

Description

Compact Handheld Oscilloscope, Bandwidth (MHz) 40 MHz, 2 Channels, 5.7 in Color TFT Display, True RMS Yes, Sampling Rate 400 KS/s, 10 nsec/div to 60 sec/div Max./Min. Sweep Speed, 20 Waveform / Measurement Stored, Max. Record Length 512 Min/Max Points Per Input, FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Repeat Triggering Mode, Input Sensitivity 5 mV/div to 200 V/div, No Persistence, Glitch Capture Yes, Capacitance Measurements Yes, USB, Wireless Interface

Restrictions

Hazardous material
