Shop FLUKE

Digital Clamp Meter, 400V Max AC Amps, AC/DC Voltages up to 600V, TRMS, 1.1 in Jaw Opening

  • Mfr # FLUKE-323

  • Zoro # G4628556

product price:
$
176.79
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
4,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-323
Zoro #
G4628556
UPC #
095969638982
Country of Origin
Malaysia

Dimensions

Max. Conductor Size
600 kcmil
Manufacturers Warranty Length
2 yr
Overall Width
2.95 in
Maximum Conductor Size
600MCM
Overall Height
8.14 in
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
4,000
Jaw Capacity
1.1 in (28 mm)
Safety Rating
CAT III 600V, CAT IV 300V
Display
LCD
Jaw Opening
1.1 in
Max. AC Volts
600 V
Includes
Display Container, Soft Carrying Case, Test Leads
Operating Temp.
14 Degrees to 122 Degrees F
AC Current Accuracy
+/-2.0% + 5 Digits
Counts
6,000
Battery Type
AAA
Auto Ranging
Yes
AC Response
TRMS
Auto Power Off
Yes
Peak Hold
No
Bar Graph
No
Audible Continuity
Yes
Data Hold
Yes
Special Features
Reliable Basic True-RMS Clamp Meter, Rugged
Data Logging
Yes
Calibration Certificate Included
No Certification Included
Waterproof
No
Dustproof
No
Thermal Imaging
No
IP Rating
IP30
Jaw Style
Clamp
Display Type
LCD
Maximum DC Voltage Measurement
600 V
Intrinsically Safe
No
Maximum Resistance Measurement
4,000 ohm
Bluetooth Compatible
No
Maximum AC Voltage Measurement
600 V
Maximum AC Current Measurement
400 A
Basic AC Voltage Accuracy
1.5% +/- 5 digits
Bar Graph Included
No
AC Response Calculation
TRMS
Resistance Measurement Accuracy
1.0% +/- 5 digits
Current Leakage Testing
No
Removable Screen
No
Instrument Counts
6,000
Basic DC Voltage Accuracy
1.0% +/- 5 digits
Basic AC Current Accuracy
2% +/- 5 digits (45 Hz to 65 Hz)2.5% +/- 5 digits (65 Hz to 400 Hz)
Parameters Measured
AC Current, AC Voltage, DC Voltage, Resistance
Minimum Operating Temperature
14 Degrees F
Minimum AC Current Measurement
0.1 A
Jaw Detachability
Fixed
CAT Safety Rating
CAT III 600V, CAT IV 300V
Minimum Resistance Measurement
0.1 ohm
Includes Auto Sensing
No Auto Sensing Included
Minimum DC Voltage Measurement
0.1 V

Description

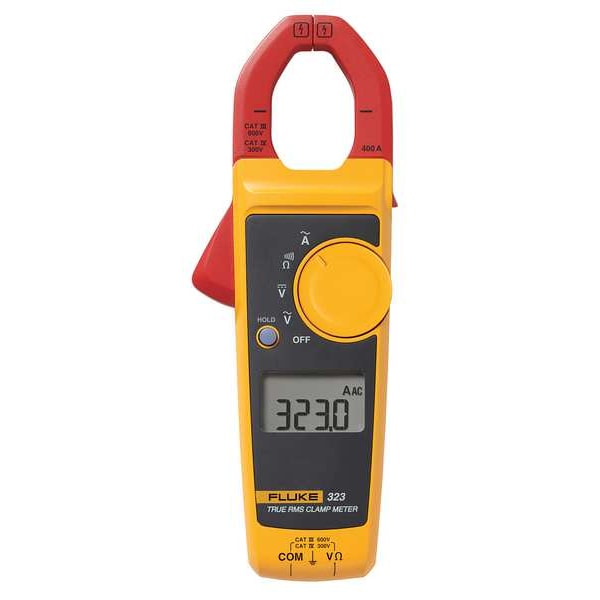

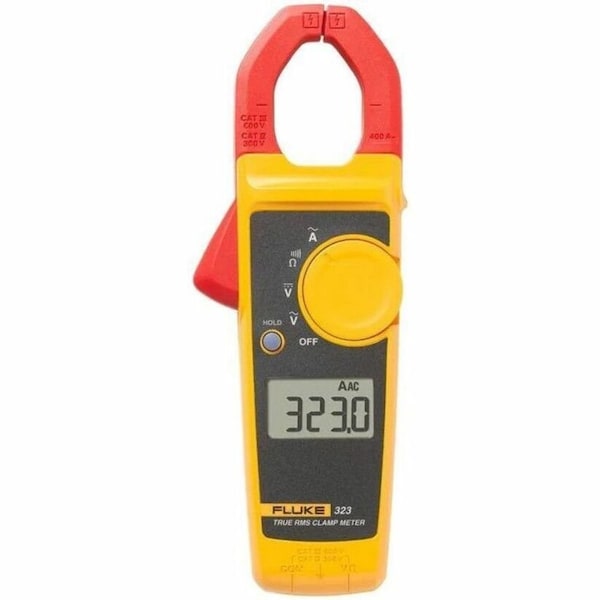

Fluke 323 True-RMS Digital Clamp Meter is a reliable and rugged tool designed for accurate measurement of AC currents up to 400 A and AC/DC voltages up to 600 V. With its true-RMS capabilities and ergonomic design, it is ideal for troubleshooting and diagnosing electrical issues in both residential and commercial settings.


Properties:


  • AC Current Range: Up to 400 A

  • AC/DC Voltage Range: Up to 600 V

  • Resistance Measurement: Up to 4000 Ω

  • Continuity Threshold: ≤ 70 Ω

  • Data Hold: Yes

  • Dimensions: 207 mm x 75 mm x 34 mm

  • Weight: 265 g


Features:


  • True-RMS for accurate measurements on non-linear signals

  • CAT IV 300 V / CAT III 600 V safety rating for enhanced protection

  • Ergonomic, slim design for easy handling

  • Data hold function to capture and view readings

  • Two-year warranty


Applications:


  • Ideal for general electrical troubleshooting in residential and commercial applications

  • Suitable for use in environments where accurate AC current and voltage measurements are critical
