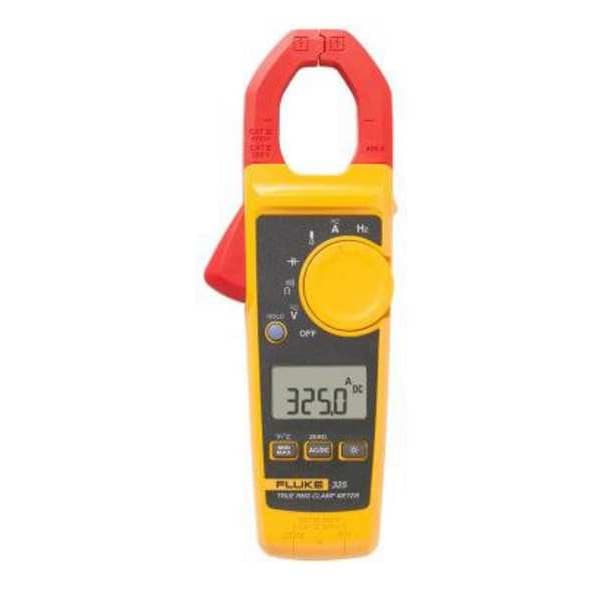

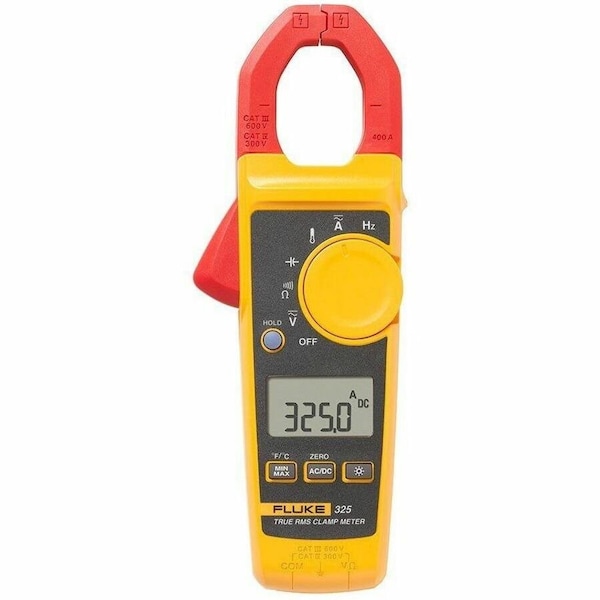

Digital Clamp Meter, Backlit LCD, 400 A, 1.1 in (28 mm) Jaw Capacity

  • Mfr # FLUKE-325

  • Zoro # G4573816

product price:
$
429.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-325
Zoro #
G4573816
UPC #
095969639002
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
2 yr
Max. Conductor Size
600 kcmil
Overall Height
8.14 in
Battery Size
AAA
Overall Width
2.95 in
Maximum Conductor Size
600MCM

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40,000
Jaw Capacity
1.1 in (28 mm)
Temp. Range
14 Degrees to 752 Degrees F
Safety Rating
CAT III 600V, CAT IV 300V
Display
Backlit LCD
Jaw Opening
1.1 in
Max. DC Amps
400
Max. AC Volts
600 V
Audible Continuity
Yes
Operating Temp.
14 Degrees to 122 Degrees F
Memory
Min/Max
Peak Hold
Yes
Frequency Counter
500 Hz
Auto Ranging
Yes
AC Response
TRMS
Auto Power Off
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Counts
6,000
Data Hold
Yes
Thermometer Type
Type K Thermocouple
Special Features
Versatile Tool PerfoRMS Most Front-Line Measurement Tasks
Battery Type
AAA
Bar Graph
No
Diode Test
No
Capacitance
1,000 uF
Includes
Display Container, Soft Carrying Case, Test Leads
Data Logging
Yes
Thermal Imaging
No
AC Response Calculation
TRMS
Dustproof
No
Maximum DC Current Measurement
400 A
Basic DC Current Accuracy
2% +/- 5 digits
Maximum AC Voltage Measurement
600 V
IP Rating
IP30
Maximum DC Voltage Measurement
600 V
Batteries Included
Yes
Instrument Counts
6,000
Removable Screen
No
Maximum Capacitance Measurement
1,000 uF
Basic AC Current Accuracy
2% +/- 5 digits (45 Hz to 65 Hz)2.5% +/- 5 digits (65 Hz to 400 Hz)
Resistance Measurement Accuracy
1.0% +/- 5 digits
Basic DC Voltage Accuracy
1.0% +/- 5 digits
Bar Graph Included
No
Maximum Resistance Measurement
40,000 ohm
Jaw Style
Clamp
Capacitance Measurement Accuracy
0 to 100.0 micronF / 100 micronF to 1000 micronF
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
14 Degrees F
Display Type
Backlit LCD
Waterproof
No
Intrinsically Safe
No
Basic AC Voltage Accuracy
1.5% +/- 5 digits
Frequency Measurement Accuracy
5.0 Hz to 500.0 Hz
Current Leakage Testing
No
Bluetooth Compatible
No
Maximum AC Current Measurement
400 A
Calibration Certificate Included
No Certification Included
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Battery Access
Yes
Maximum Frequency Measurement
500 Hz
CAT Safety Rating
CAT III 600V, CAT IV 300V
Minimum DC Voltage Measurement
0.1 V
Minimum AC Current Measurement
0.1 A
Minimum Resistance Measurement
0.1 ohm
Jaw Detachability
Fixed
Minimum AC Voltage Measurement
0.01 V
Minimum DC Current Measurement
0.01 A
Includes Auto Sensing
No Auto Sensing Included
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, CAT IV 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 400 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating IP30, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No
