  5. Digital Clamp Meter, LCD, 2.5 in (64 mm) Jaw Capacity, CAT III 1000V, CAT IV 600V Safety Rating

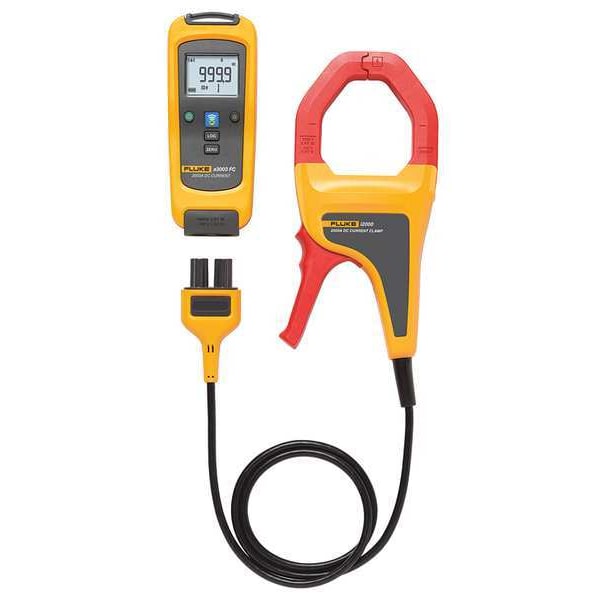

Fluke Digital Clamp Meter, LCD, 2.5 in (64 mm) Jaw Capacity, CAT III 1000V, CAT IV 600V Safety Rating FLK-A3003FC - main

Digital Clamp Meter, LCD, 2.5 in (64 mm) Jaw Capacity, CAT III 1000V, CAT IV 600V Safety Rating

  • Mfr # FLK-A3003FC

  • Zoro # G0083450

product price:  $795.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Clamp Meter Jaw Style
Split
Jaw Capacity
2.5 in (64 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLK-A3003FC
Zoro #
G0083450
UPC #
095969797948
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Max. Conductor Size
2.50 in (25.4mm)
Overall Width
2.5 in
Battery Size
AA
Overall Height
6.5 in
Maximum Conductor Size
2.50 in (25.4mm)

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Clamp Meter Jaw Style
Split
Jaw Capacity
2.5 in (64 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Jaw Opening
2.5 in
Max. DC Amps
2,000
Counts
6,000
Battery Type
(2) AA
Bar Graph
No
Auto Ranging
Yes
Operating Temp.
50 Degrees to 122 Degrees F
Includes
Hanging Strap, Magnet, Quick Start Guide Only
Non-Contact Voltage Detector
Yes
Auto Power Off
Yes
Peak Hold
No
Audible Continuity
No
Diode Test
No
Data Hold
No
Standards
CE, CSA, FCC: T68-FBLE IC: 6627A-FBLE
Special Features
Logging
AC Current Accuracy
+/-2.0% + 5 Digits
Calibration Certificate
Not Included
Inrush
No
Thermometer Type
Type K Thermocouple
Data Logging
Yes
Parameters Measured
DC Current, Temperature (K)
Dustproof
No
Jaw Style
Open-Jaw
AC Response Calculation
Average
IP Rating
IP42
Battery Access
Yes
Bar Graph Included
No
Maximum DC Current Measurement
2,000 A
Maximum Operating Temperature
122 Degrees F
Intrinsically Safe
No
Minimum Operating Temperature
14 Degrees F
Calibration Certificate Included
No
Batteries Included
Yes
Instrument Counts
6,000
Display Type
LCD
AC Current Measurement Resolution
0.1 A
Thermal Imaging
No
Maximum Storage Temperature
140 Degrees F
Waterproof
No
Bluetooth Compatible
Yes
Removable Screen
No
Current Leakage Testing
No
Inrush Current Measurable
No
DC Current Measurement Resolution
0.1 A
Basic DC Current Accuracy
2% +/- 5 digits

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation Average, Maximum AC Current Measurement Not Applicable, Maximum DC Current Measurement 2,000 A, Maximum DC Voltage Measurement Not Applicable, Current Leakage Testing No, IP Rating IP42, Parameters Measured DC Current, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible Yes

Restrictions

Hazardous material
