Shop FLUKE

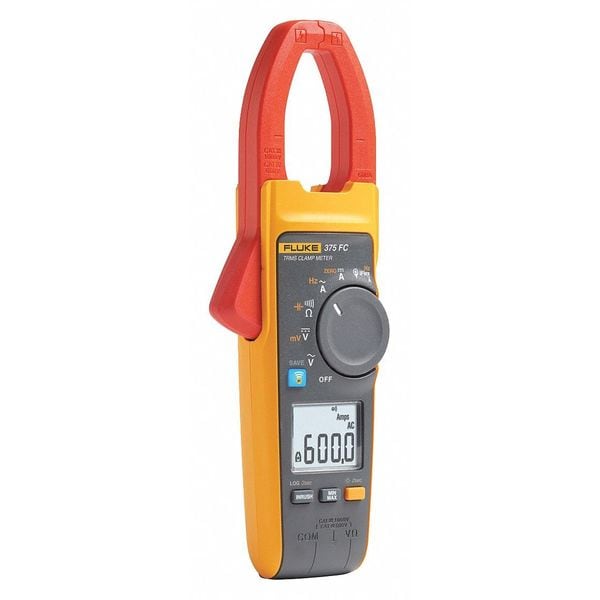

Digital Clamp Meter, LCD, 600 A, 1.6 in (41 mm) Jaw Capacity

  • Mfr # FLUKE-375 FC/WWG

  • Zoro # G1994697

product price:
$
606.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-375 FC/WWG
Zoro #
G1994697
UPC #
095969798464
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Max. Conductor Size
750 kcmil
Overall Height
1.77 in
Overall Width
3.34 in
Maximum Conductor Size
750MCM
Battery Size
AA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60,000
Jaw Capacity
1.6 in (41 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Jaw Opening
1.6 in
Max. DC Amps
600
Max. AC Volts
1,000 V
Calibration Frequency
55 to 60 Hz
Non-Contact Voltage Detector
No
Inrush
Yes
Data Hold
Yes
Counts
6,000
Peak Hold
Yes
AC Response
TRMS
Operating Temp.
50 Degrees to 122 Degrees F
Calibration Certificate
Not Included
Memory
Min/Max/Average
AC Current Accuracy
+/-2.0% + 5 Digits
Diode Test
No
Standards
CE, CSA
Auto Power Off
Yes
Includes
(2) Batteries, Soft Carrying Case, Test Leads (TL75)
Battery Type
AA
Special Features
Internal Memory for Logging
Capacitance
1,000 uF
Audible Continuity
Yes
Midscale Resistance
31 ohm
Auto Ranging
Yes
Thermometer Type
Type K Thermocouple
Data Logging
Yes
Calibration Certificate Included
No Certification Included
AC Current Measurement Resolution
0.1 A
Maximum Capacitance Measurement
1,000 uF
Maximum Storage Temperature
140 Degrees F
Bluetooth Compatible
Yes
DC Voltage Measurement Resolution
0.1 mV
Basic AC Current Accuracy
2% +/-5 digits (10 Hz to 100 Hz)2.5% +/-5 digits (100-500 Hz)
Maximum Operating Temperature
122 Degrees F
Batteries Included
Yes
Capacitance Measurement Resolution
0.1 uF
Capacitance Measurement Accuracy
1% +/-4 digits
Battery Access
Yes
Instrument Counts
6,000
Basic DC Current Accuracy
2% +/- 5 digits
Thermal Imaging
No
Dustproof
No
IP Rating
IP30
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Basic AC Voltage Accuracy
1.5% +/-5 digits (20 Hz to 500 Hz)
Display Type
LCD
Maximum AC Current Measurement
600 A
Intrinsically Safe
No
Maximum DC Voltage Measurement
1,000 V
Waterproof
No
Resistance Measurement Resolution
0.1 ohm
Minimum Operating Temperature
14 Degrees F
DC Current Measurement Resolution
0.1 A
Current Leakage Testing
No
Basic DC Voltage Accuracy
1% +/-5 digits
AC Voltage Measurement Resolution
0.1 V
Maximum Resistance Measurement
60,000 ohm
Frequency Measurement Accuracy
0.5% +/-5 digits
Resistance Measurement Accuracy
1% +/-5 digits
AC Response Calculation
TRMS
Maximum DC Current Measurement
600 A
Frequency Measurement Resolution
0.1 Hz
Inrush Current Measurable
Yes
Jaw Style
Clamp
Removable Screen
No
Battery Chemistry
Alkaline
Maximum AC Voltage Measurement
1,000 V
Minimum AC Voltage Measurement
0.1 V
Jaw Detachability
Fixed
Minimum AC Current Measurement
0.1 A
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Includes Auto Sensing
No Auto Sensing Included
Minimum Resistance Measurement
0.1 ohm
Data Output Type
Bluetooth
Maximum Frequency Measurement
500 Hz
Minimum DC Current Measurement
0.1 A
Minimum DC Voltage Measurement
0.1 V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP30, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No
