Shop FLIR

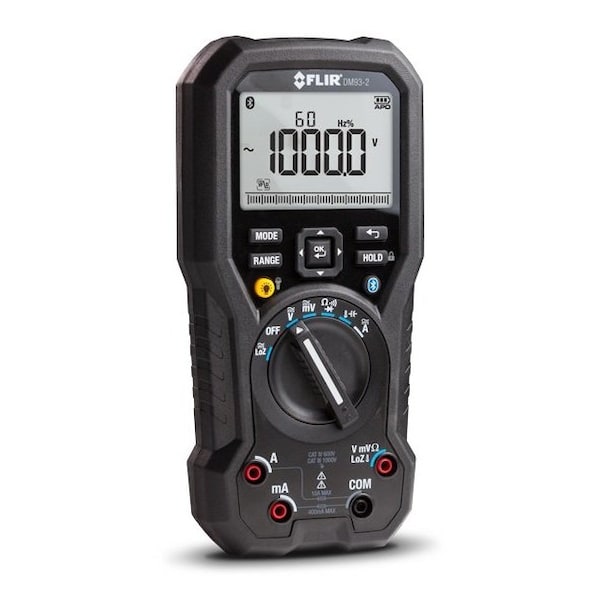

Digital Multimeter, 1,000 V Max DC, TRMS, 40,000 Instrument Counts, Backlit

  • Mfr # DM93-2

  • Zoro # G011208997

product price:
$
469.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
40,000
Includes
Test Leads, Type K Temperature Probe
Standards
CE, FCC, UKCA Certified, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DM93-2
Zoro #
G011208997
UPC #
793950372937
Country of Origin
Taiwan, Province of China

Dimensions

True RMS Bandwidth
40 Hz
Overall Height
8.15 in
Overall Width
3.86 in
Manufacturers Warranty Length
Limited Lifetime
Depth
2.39 in
Battery Size
AAA

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
40,000
Includes
Test Leads, Type K Temperature Probe
Standards
CE, FCC, UKCA Certified, UL
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
No
Diode Test
Yes
Removable Screen
No
Maximum DC Current Measurement
10 A
Waterproof
No
Maximum Frequency Measurement
100 kHz
Basic DC Voltage Accuracy
+/-0.05%
Software Included
No
Fuse Access
Yes
Maximum Capacitance Measurement
40 mF
Bluetooth Compatible
Yes
Capacitance Measurement Accuracy
+/-0.9%
Maximum AC Current Measurement
10 A
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage
Minimum Operating Temperature
14 Degrees F
Time of Day Clock
Yes
Maximum Resistance Measurement
40 megaohm
Frequency Measurement Accuracy
+/-5 Digits
Maximum Sound Level Measurement
20 dB
AC Response Calculation
TRMS
Basic AC Current Accuracy
+/-1%
Capacitance Measurement Resolution
40 mF
Auto Ranging
Yes
IP Rating
IP54
Maximum AC Voltage Measurement
1,000 V
Intrinsically Safe
No
Minimum/Maximum Memory
Min/Max
Battery Access
Yes
Resistance Measurement Accuracy
+/-0.2%
Weight
1.32 lb
Current Leakage Testing
No
Frequency Measurement Resolution
100 kHz
Bar Graph Included
Yes
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
AC Voltage Measurement Resolution
1,000 V
Minimum Temperature Measurement
-328 Degrees F
Maximum DC Voltage Measurement
1,000 V
Maximum Temperature Measurement
2,192 Degrees F
Thermal Imaging
Yes
Battery Chemistry
Alkaline
Computer Interface Connection Type
Bluetooth
Minimum Storage Temperature
-22 Degrees F
Temperature Measurement Accuracy
+/-1%
Peak Hold
Yes
Basic AC Voltage Accuracy
+/-0.5%
Dustproof
Yes
Maximum Storage Temperature
140 Degrees F
Batteries Included
Yes
Battery Voltage
1.5 V
Resistance Measurement Resolution
10 kiloohm
Basic DC Current Accuracy
+/-0.2%
NIST Certification By Manufacturer
Not Certified
AC Current Measurement Resolution
10 A
Calibration Certificate Included
No Certification Included
Temperature Measurement Resolution
0.1 Degrees F
Logging Memory
10,000
Minimum AC Current Measurement
0 mA
Current Units
A
Voltage Units
mV, V
Minimum DC Current Measurement
0 mA
Includes Auto Sensing
No Auto Sensing Included
Minimum AC Voltage Measurement
0 mV
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Minimum DC Voltage Measurement
0 mV
Minimum Resistance Measurement
0 ohm
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Data Output Type
Bluetooth
Special Features
Variable Frequency Drive Filtering, Dual Display

Description

Digital Multimeter, Audible Continuity No, Basic AC Voltage Accuracy +/-0.5 Percent, Basic DC Voltage Accuracy +/-0.05 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.2 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 40,000, Special Features Variable Frequency Drive Filtering, Dual Display, Maximum AC Current Measurement 10 A, Calibration Certificate Included No
