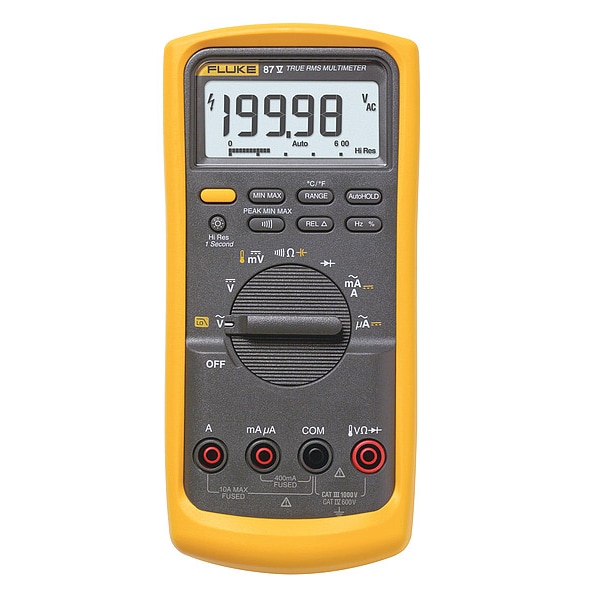

Digital Multimeter, 1,000 V Max DC, 0 V Max AC, TRMS, 6,000/19,999 Instrument Counts, Backlit LCD

  • Mfr # FLUKE-87-5/CWG

  • Zoro # G2965523

product price:  $775.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/19,999 (Depending on Mode)
Includes
Temperature Probe (80BK), Battery, Alligator Clips (AC175 ), Holster with Tilt-Leg, Test Lead Storage, Test Leads (TL175)
Standards
ANSI/ISA S82.01, CE, EN61010-1, SA, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-87-5/CWG
Zoro #
G2965523
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Lifetime
Overall Width
3.85 in
Pulse Width
No
Overall Height
7.91 in
True RMS Bandwidth
20 kHz
Battery Size
9V
Depth
2.04 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/19,999 (Depending on Mode)
Includes
Temperature Probe (80BK), Battery, Alligator Clips (AC175 ), Holster with Tilt-Leg, Test Lead Storage, Test Leads (TL175)
Standards
ANSI/ISA S82.01, CE, EN61010-1, SA, UL
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Max. DC Amps
10 A
AC Response
TRMS
Multimeter Style
Full Size - General Features
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Basic DC Accuracy
+/-0.05% of Reading + 1 Digit
Capacitance Range
1 nF to 9999 uF
Temp. Range
-328 Degrees to 1994 Degrees F
Max. AC Amps
10:00 AM
Calibration Certificate Included
Traceable without Data
Instrument Frequency Counter Range
0.5 Hz to 200 kHz
Display
Backlit LCD
NIST Certification By
Techni-Tool
Peak Hold
Yes
Max. Ohms
50 megohm
Series
FLUKE (R) Fluke-87-V
Auto Ranging
Yes
Duty Cycle
Duty Cycle Test Included
Intrinsically Safe
No
Resistance Measurement Accuracy
+/-0.2%
Minimum Temperature Measurement
-328 Degrees F
Battery Voltage
9 V
Thermal Imaging
No
Maximum Resistance Measurement
50 megaohm
Battery Chemistry
Alkaline
Maximum DC Voltage Measurement
1,000 V
Maximum Temperature Measurement
1,994 Degrees F
AC Response Calculation
TRMS
Minimum Capacitance Measurement
1 nF
Fuse Access
Yes
Removable Screen
No
Current Leakage Testing
No
Frequency Measurement Resolution
0.5 Hz
Basic AC Voltage Accuracy
+/-(0.7% + 2)
Maximum AC Voltage Measurement
1,000 V
Batteries Included
Yes
Software Included
No
Maximum AC Current Measurement
10 A
Minimum/Maximum Memory
Min/Max
Minimum DC Voltage Measurement
0 V
Dustproof
No
Temperature Measurement Accuracy
+/-2.00%
Basic DC Current Accuracy
+/-(0.2% + 2)
Minimum AC Voltage Measurement
0 V
NIST Certification By Manufacturer
Techni-Tool
Minimum DC Current Measurement
0 A
Maximum Frequency Measurement
200 kHz
Minimum AC Current Measurement
0 A
Capacitance Measurement Accuracy
+/-(1% + 2)
Bluetooth Compatible
No
Frequency Measurement Accuracy
+/-(0.005% + 1)
Bar Graph Included
Yes
Maximum DC Current Measurement
10 A
Maximum Storage Temperature
140 Degrees F
Weight
624 g
Basic AC Current Accuracy
+/-(1.0% + 2)
Maximum Capacitance Measurement
9,999 uF
Parameters Measured
AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Battery Access
Yes
Basic DC Voltage Accuracy
+/-0.05% + 1 Digit
Min-Max-Avg Button Included
Yes
Minimum Frequency Measurement
0.5 Hz
Maximum Operating Temperature
131 Degrees F
Waterproof
No
Minimum Storage Temperature
-40 Degrees F
Computer Interface Connection Type
None
Minimum Operating Temperature
-4 Degrees F
Capacitance Measurement Resolution
1 nF
IP Rating
Not Rated
Special Features
Adjustable Speed Motor Drive Test Function
Includes Auto Sensing
No Auto Sensing Included
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Current Units
A, mA

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(0.7 Percent + 2), Basic DC Voltage Accuracy +/-0.05 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/-(0.2 Percent + 2), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/19,999, Special Features Adjustable Speed Motor Drive Test Function, Maximum AC Current Measurement 10 A
