Shop FLUKE

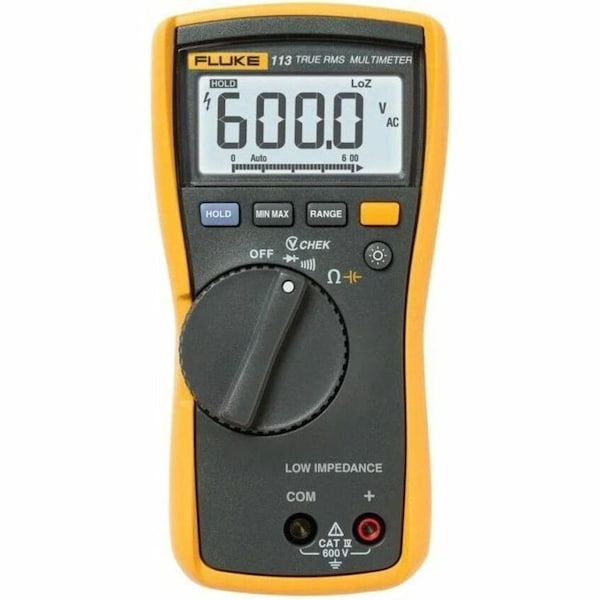

Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

  • Mfr # FLUKE-113

  • Zoro # G0813407

product price:
$
176.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Integrated Holster
Standards
ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, EMC EN61326-1, 600 V, Pollution Degree 2, UL 61010-1 (2004) and IEC/EN61010-1 2nd Edition for measurement Category III
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-113
Zoro #
G0813407
UPC #
095969561174
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Pulse Width
No
Overall Width
3.35 in
Depth
1.81 in
Overall Height
6.58 in
Battery Size
9V

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Integrated Holster
Standards
ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, EMC EN61326-1, 600 V, Pollution Degree 2, UL 61010-1 (2004) and IEC/EN61010-1 2nd Edition for measurement Category III
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Display
Backlit LCD
Auto Ranging
Yes
Multimeter Style
Compact - Basic Features
AC Response
TRMS
Max. Ohms
60 kilohm
Series
FLUKE (R) Fluke-113
Capacitance Range
9999 uF
Max. AC Amps
10:00 AM
Max. DC Amps
10 A
Temp. Range
14 Degrees to 122 Degrees F
Instrument Safety Rating
CAT III 600V, CAT IV 300V
Calibration Certificate Included
No Certification Included
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Duty Cycle
No Duty Cycle Test Included
Peak Hold
No
Intrinsically Safe
No
Basic AC Voltage Accuracy
2.0% + 3
Fuse Access
No
Battery Access
Yes
Minimum Capacitance Measurement
9,999 uF
Minimum Storage Temperature
-22 Degrees F
Waterproof
No
Software Included
No
Minimum/Maximum Memory
Min/Max
Maximum DC Voltage Measurement
600 V
Basic DC Voltage Accuracy
+/-0.50% + 2 Digits
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
14 Degrees F
Maximum Storage Temperature
140 Degrees F
Min-Max-Avg Button Included
Yes
Battery Voltage
1.5 V
Minimum Temperature Measurement
14 Degrees F
Maximum AC Voltage Measurement
600 V
AC Voltage Measurement Resolution
0.001 V
Removable Screen
No
Maximum Temperature Measurement
122 Degrees F
Bar Graph Included
Yes
Maximum Capacitance Measurement
9,999 uF
Capacitance Measurement Accuracy
1.9% + 2
Bluetooth Compatible
No
Thermal Imaging
No
Maximum Resistance Measurement
60 kiloohm
Minimum DC Voltage Measurement
0 V
Dustproof
No
Current Leakage Testing
No
Resistance Measurement Accuracy
+/-0.9%
Battery Chemistry
Alkaline
AC Response Calculation
TRMS
Parameters Measured
AC Voltage, Capacitance, DC Voltage, Resistance
Weight
404 g
Minimum AC Voltage Measurement
0 V
Current Units
A, mA
CAT Safety Rating
CAT III 600V, CAT IV 300V
Includes Auto Sensing
No Auto Sensing Included
Special Features
Integral Holster with Probe Holders, Vchek(Tm) Low Impedance Measurement Function to Simultaneously Test for Voltage or Continuity
IP Rating
Not Rated

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 2.0 Percent + 3, Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy Not Applicable, Instrument Safety Rating CAT III 600V, CAT IV 300V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000, Special Features Integral Holster with Probe Holders, Vchek(Tm) Low Impedance Measurement Function to Simultaneously Test for Voltage or Continuity
