Fluke Digital Multimeter, CAT III 1000V, CATIV 600V, TRMS, Instrument Counts 20,000, Max 10 Amps Fluke-87-V/E2 - main
Shop FLUKE

Digital Multimeter, CAT III 1000V, CATIV 600V, TRMS, Instrument Counts 20,000, Max 10 Amps

  • Mfr # Fluke-87-V/E2

  • Zoro # G2384733

original price:  $779.99 , new price: $676.59 , 13 percent off
new price:  $676.59
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
20,000

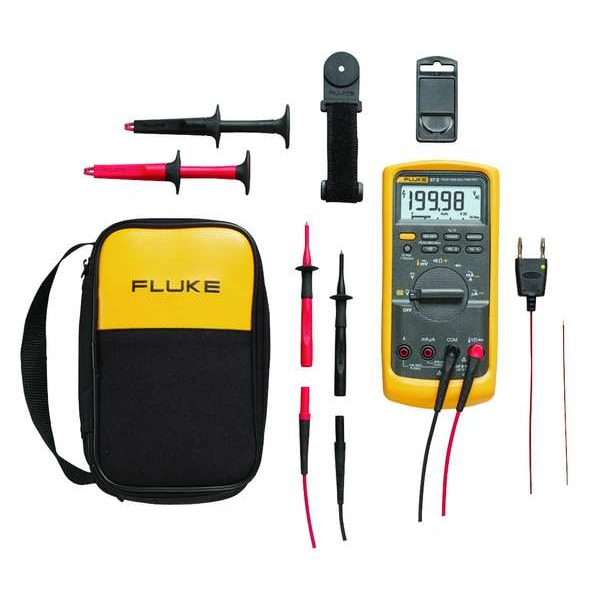

Includes
Alligator Clips, Magnetic Hanging Kit, Soft Case, Temperature Probe, Test Leads, Yellow Meter Boot
Standards
CE, CSA, EN61010-1 CAT III 1000V, TUV, UL, VDE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Fluke-87-V/E2
Zoro #
G2384733
UPC #
095969353274
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Lifetime
Overall Width
3.9 in
Pulse Width
Yes
Battery Size
9V
Depth
2 in
Overall Height
7.9 in
True RMS Bandwidth
20 kHz

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
20,000
Includes
Alligator Clips, Magnetic Hanging Kit, Soft Case, Temperature Probe, Test Leads, Yellow Meter Boot
Standards
CE, CSA, EN61010-1 CAT III 1000V, TUV, UL, VDE
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Instrument Safety Rating
CAT IV 600V
Capacitance Range
100 pF to 9999 uF
Temp. Range
-328 Degrees to 1994 Degrees F
Max. AC Amps
10
Basic DC Accuracy
+/-0.05% of Reading + 1 Digit
Max. DC Amps
10
Instrument Frequency Counter Range
0.5 Hz to 200 kHz
Auto Ranging
Yes
Peak Hold
Yes
Duty Cycle
Yes
Multimeter Style
Full Size - Advanced Features
Calibration Certificate Included
No
Display
Backlit LCD
Max. Ohms
50 megohm
AC Response
TRMS
Series
FLUKE (R) Fluke-87-V/E2
Intrinsically Safe
No
Minimum Operating Temperature
-4 Degrees F
Software Included
No
Maximum Frequency Measurement
200 kHz
DC Current Measurement Resolution
0.01 uA
AC Voltage Measurement Resolution
0.1 V
Maximum AC Voltage Measurement
1,000 V
Parameters Measured
AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
DC Voltage Measurement Resolution
10 V
Maximum DC Voltage Measurement
1,000 V
AC Response Calculation
TRMS
Basic AC Current Accuracy
+/-(1.0% + 2)
Basic DC Voltage Accuracy
+/-0.05% + 1 Digit
Frequency Measurement Resolution
0.01 Hz
Maximum DC Current Measurement
10 A
Basic DC Current Accuracy
+/-(0.2% + 2)
Bar Graph Included
Yes
Resistance Measurement Resolution
0.1 ohm
AC Current Measurement Resolution
0.1 uA
Maximum AC Current Measurement
10 A
Thermal Imaging
No
Capacitance Measurement Accuracy
+/-(1% + 2)
Min-Max-Avg Button Included
Yes
Minimum AC Current Measurement
0 A
Dustproof
No
Waterproof
No
Minimum Storage Temperature
-40 Degrees F
Minimum DC Current Measurement
0 A
Minimum/Maximum Memory
Yes
Battery Chemistry
Alkaline
Maximum Temperature Measurement
1,994 Degrees F
Minimum DC Voltage Measurement
0 V
Maximum Capacitance Measurement
9,999 uF
Minimum Temperature Measurement
-328 Degrees F
Current Leakage Testing
No
Resistance Measurement Accuracy
+/-0.2%
Battery Access
Yes
Basic AC Voltage Accuracy
+/-(0.7% + 2)
Battery Voltage
9V
Maximum Resistance Measurement
50 megaohm
Temperature Measurement Accuracy
+/-2.00%
Frequency Measurement Accuracy
+/-(0.005% + 1)
Capacitance Measurement Resolution
0.01 nF
Minimum Frequency Measurement
0.5 Hz
Weight
624 g
Maximum Storage Temperature
140 Degrees F
Bluetooth Compatible
No
Removable Screen
No
Computer Interface Connection Type
None
Minimum AC Voltage Measurement
0 V
Minimum Capacitance Measurement
100 pF

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(0.7 Percent + 2), Basic DC Voltage Accuracy +/-0.05 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/-(0.2 Percent + 2), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 20,000, Special Features Optimized for Adjustable Speed Motor Drive Testing, Maximum AC Current Measurement 10 A
