Shop FLUKE

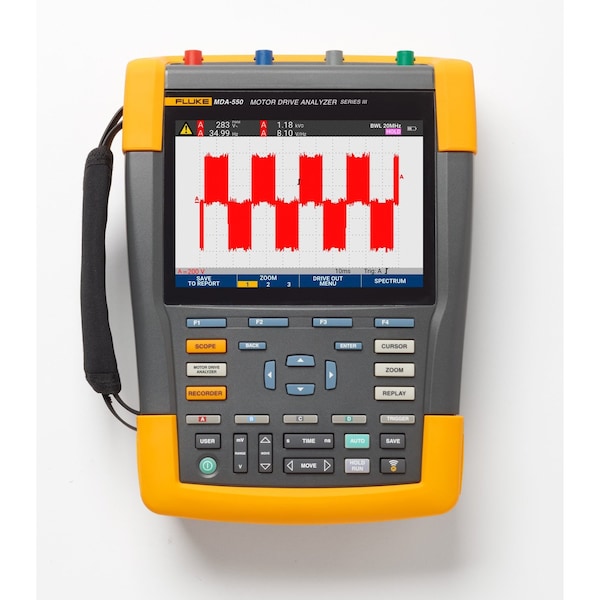

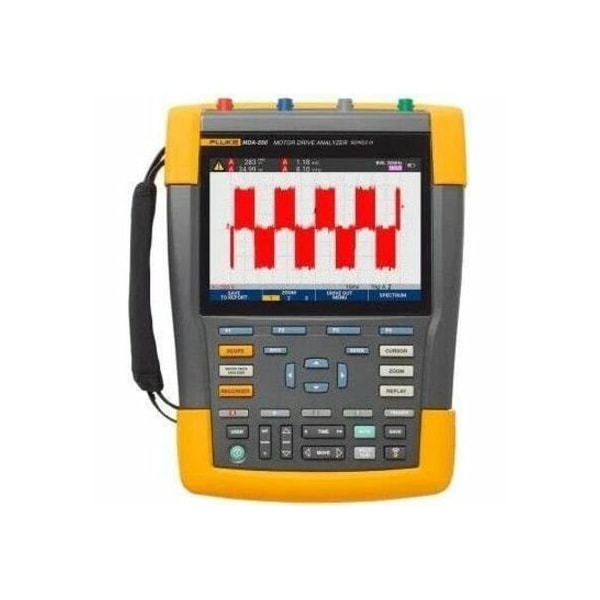

Digital Oscilloscope

  • Mfr # FLUKE-MDA-550-III

  • Zoro # G601866248

product price:
$
11,090.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Extension Rod and Magnetic Base, (3) Brushes, (3) I400S AC Current Clamps, (3) VPS421 100:1 High Voltage Probes with Alligator Clips, AC Power Adapter, Carrying Case, Probe Holder, SVS-500 Shaft Voltage Set, VPS410-II-R 10:1 500MHz Voltage Probe, Wi-Fi Dongle
Features
Measure Additional Electrical Parameters, Measure Key Motor Drive Parameters, Provides Guided Measurements, Quickly and Easily Create Reports, Simplified Measurement Setup
Display
Color LCD
Channels
4
Triggering Mode
Auto
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-MDA-550-III
Zoro #
G601866248
UPC #
195112021958
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
500 MHz
Manufacturers Warranty Length
1 yr (Accessories), 3 yr (Instrument)
Max. Record Length
10k/ Channel
Bandwidth
500 MHz

Details

Item
Digital Oscilloscope
Includes
(2) Extension Rod and Magnetic Base, (3) Brushes, (3) I400S AC Current Clamps, (3) VPS421 100:1 High Voltage Probes with Alligator Clips, AC Power Adapter, Carrying Case, Probe Holder, SVS-500 Shaft Voltage Set, VPS410-II-R 10:1 500MHz Voltage Probe, Wi-Fi Dongle
Features
Measure Additional Electrical Parameters, Measure Key Motor Drive Parameters, Provides Guided Measurements, Quickly and Easily Create Reports, Simplified Measurement Setup
Display
Color LCD
Channels
4
Triggering Mode
Auto
Input Sensitivity
With 10:1 Probe, 20 mV to 1000 V/div_x000B; With 100:1 Probe, 200 mV to 10 kV/div _x000B; Direct (1:1), 2 mV to 100 V/div
Max./Min. Sweep Speed
1 nsec/div to 4 sec/div
Safety Rating
CAT III 1000V/CAT IV 600V
Battery Life
Up to 3 hr
Glitch Capture
Yes
Battery Type
Rechargeable Li-Ion
Calibration Certificate
Yes
True RMS
Yes
Real Time Clock
Yes
Power Source
AC Adapter, Battery
Interface
USB
Battery Run Time
3 hr
Input Sensitivity - Maximum
100 V/div
Digital Display Screen Type
LCD
CAT Safety Rating
CAT III 1000V, CAT IV 600V
AC Current Measurement - Maximum
400 mA
AC Current Measurement - Minimum
0.1 mA
Includes Batteries
Batteries Included
AC Voltage Measurement - Minimum
1 mV AC
AC Magnitude Calculation
True RMS
Body Style
Handheld
DC Current Measurement - Maximum
400 mA
Number of Batteries Required
1
Standards
IEC 61010-1
DC Voltage Measurement - Maximum
1,000 V DC
DC Voltage Measurement - Minimum
1 mV DC
AC Voltage Measurement Resolution
10 mV
AC Voltage Measurement - Maximum
1,000 V AC
Input Sensitivity - Minimum
100 V/div
Number of Channels
4
Calibration Certificate Type
Not Certified
DC Current Measurement - Minimum
0.1 mA
Battery Chemistry
Lithium Ion
Power Source - TS Only
AC Adapter, Battery
Power Source - old
AC Adapter, Battery

Description

Digital Oscilloscope, Bandwidth (MHz) 500 MHz, 4 Channels, Color LCD Display, True RMS Yes, Sampling Rate Not Applicable, 1 nsec/div to 4 sec/div Max./Min. Sweep Speed, Max. Record Length 10k/ Channel, Real Time Clock Yes, Auto Triggering Mode, Input Sensitivity With 10:1 Probe, 20 mV to 1000 V/div_x000B; With 100:1 Probe, 200 mV to 10 kV/div _x000B; Direct (1:1), 2 mV to 100 V/div, Glitch Capture Yes, USB Interface, Safety Rating CAT III 1000V/CAT IV 600V, Rechargeable Li-Ion Battery Type
