- MFR #
- 2700G-G35M
- Zoro #
- G7904504
- UPC #
- 095969623551
- Country of Origin
- China
- Item

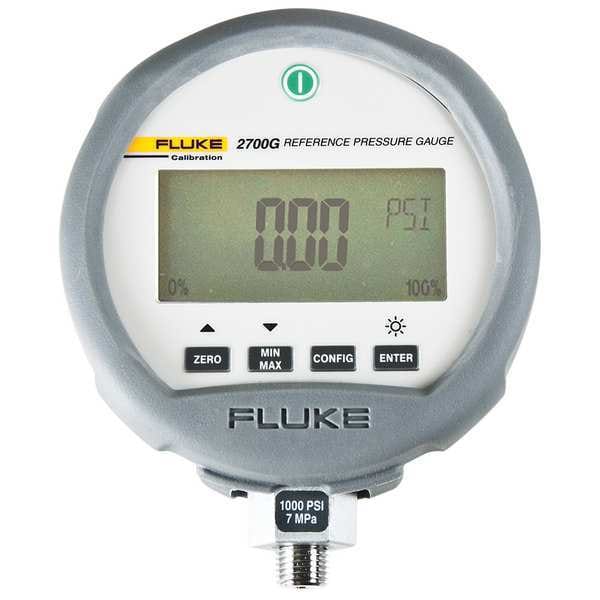

- Digital Test Pressure Gauge
- Accuracy
- +/-0.02%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Hydraulics, Pneumatics
- Gauge Case Material
- Cast Zinc Aluminum
- Series
- 2700G
- Primary Pressure Range
- 0 to 5000
- Primary Scale Units
- psi
- IP/NEMA Rating
- Not Rated
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Socket Material
- Zinc Alloy
- Peak Hold
- No
- Includes
- 1/4 NPT Female to 1/4 BSP Male Adapter, 1/4 NPT Female to M20X1.5 Adapter, Universal AC Power Supply, USB Communication Cable
- Agency Compliance
- CE
- Case Color
- Gray
- Memory Storage
- 8493 Readings
- Calibration Certificate
- NIST Traceable
- Powered By
- (3) AA Batteries or Universal AC Adapter
- Resolution
- Range Dependent
- Features
- Rugged Construction
- Digital Pressure and Vacuum Gauge Type
- Digital Pressure Gauge
- Case Material
- Zinc Alloy
- Display
- LCD
- Display Units
- psi
- Number of Display Digits
- 5
- Wetted Materials
- Zinc
- Connection Type
- MNPT
- Standards
- CE, CSA
- Compatible Brand and Series
- Fluke 700 Series, Fluke P55 Series
- Compatible Manufacturer Model Number
- 700HTPK, 700PTPK, P5510, P5513, P5514, P5515
- Pressure Range Type
- Pressure
- Low Battery Indicator
- Yes
- Backlit Screen
- Yes
- Compatible Process Media
- Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel
- Primary Display Range
- 0 to 5,000
- Memory Storage Capacity
- 8493 Readings
- Accuracy Grade Gauge Type
- Process
- Burst Pressure
- 10,000 psi
- Pressure Gauge Type
- Test Pressure Gauge
- Languages
- English
- Includes Batteries
- No Batteries Included
- Power Source
- Battery
- Includes Rubber Boot
- No
- Includes Mounting Hardware
- No
- Number of Digits
- 5
- Ambient Operating Temperature Range
- 0 Degrees to 50 Degrees C, 32 Degrees to 122 Degrees F
- Display Range
- 0 to 35 Mpa, 0 to 5,000 psi
- Includes Calibration Certificate
- No
- Non-Sparking
- No
- Display Resolution
- 0.1 psi
- Process Temperature Range
- 32 Degrees to 122 Degrees F
- Case Construction
- Rugged
- Bar Graph
- 20 Segments
- Case Shape
- Round
- Display Screen Type
- LCD
- Auto-Shutoff
- Yes
- Battery Run Time
- 75 hr
- Primary Display Units
- psi
- Process Connection Gender
- Male
- Weatherproof
- No
- Adjustable Set Points
- Yes
- Sensor Material
- Silicon Substrate
- Battery Life
- 75 hr
- Automatic Shut-Off Time
- 1 min, 30 min
- Display Type
- LCD
- Operating Temperature Range
- 32 Degrees to 122 Degrees F
- Compatible with Manufacturer Part Number
- 700HTPK, 700PTPK, P5510, P5513, P5514, P5515
- Compatible with Series
- Fluke 700 Series, Fluke P55 Series
- Number of Batteries Required
- 3
- Pressure Measurement - Minimum
- 0 psi
- Accuracy Grade
- Not Graded
- Vacuum Measurement - Minimum
- 0 psi
- Process Media Temperature - Minimum
- 32 Degrees F
- Pressure Measuring Units
- psi
- Includes Low Battery Indicator
- Low Battery Indicator
- IP Rating
- IP67
- Vacuum Measurement - Maximum
- 10,001 psi
- Pressure Measurement - Maximum
- 5,000 psi
- Hazardous Location Specification
- Class I, Div 2, Group A, D
- Resistance Properties
- Explosion Proof
- Process Media Temperature - Maximum
- 122 Degrees F
- Power Source - TS Only
- Battery
- Power Source - old
- Battery
