  5. Earth Ground Tester, 94/105/111/128 Hz

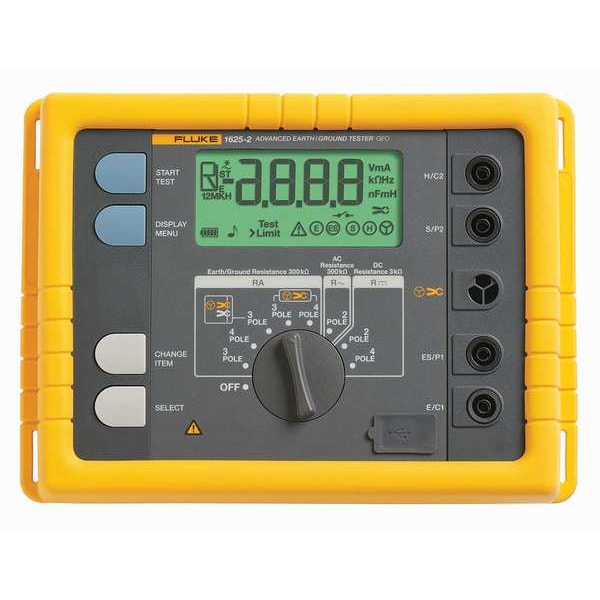

Fluke Earth Ground Tester, 94/105/111/128 Hz FLUKE-1625-2 - main

Earth Ground Tester, 94/105/111/128 Hz

  • Mfr # FLUKE-1625-2

  • Zoro # G6203951

product price:  $4,773.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.001 to 100 ohm
Operating Frequency
94/105/111/128 Hz
Soil Resistivity
Yes
Display
Digital LCD
Earth Measurement Poles
2, 3, 4 (AC), 2, 4 (DC)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-1625-2
Zoro #
G6203951
UPC #
095969666855
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
AA

Details

Item
Earth Ground Tester
Resolution
0.001 to 100 ohm
Operating Frequency
94/105/111/128 Hz
Soil Resistivity
Yes
Display
Digital LCD
Earth Measurement Poles
2, 3, 4 (AC), 2, 4 (DC)
Standards
CE
Counts
2,999
Measuring Voltage
Less Than 20
Accuracy
+/-2% of Reading +/-2 Digits
Earth Measurement Clamps
No
Measuring Current
Greater Than 250mA
Power Source
Battery
Earth Volts
250V AC
Includes
Cables
Safety Rating
CAT II 300V
Interface
USB
Earth Ground Resistance Range
0.020 to 300 kilohm
Communication Protocol
USB
Test Current
Greater Than50 mA
Number of Records Stored
1,500
Maximum Earth Voltage
50 V
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
14 Degrees F
Bluetooth Compatible
No
Dustproof
Yes
Calibration Certificate
None
Includes Batteries
Batteries Included
Resistance Testing Functions
Ground Loop Resistance
Data Output Type
USB
Tester Type
Ground Resistance Tester
Test Voltage
48V AC
Display Screen Type
LCD
Ground Testing Functions
2-Pole, 3-Pole, 4-Pole, Selective, Stakeless
Calibration Certificate Included
No Certification Included
CAT Safety Rating
CAT II 300V
IP Rating
IP40, IP56
Features
Automatic Frequency Control (AFC) to Minimize the Effect of Interference, Performs Testing with and without Stakes

Description

Earth Ground Tester, Bluetooth Compatible No, CAT Safety Rating CAT II 300V, Calibration Certificate None, Dustproof Yes, IP Rating IP40, IP56, Maximum Earth Voltage 50 V, Number of Records Stored 1,500, Test Current greater than 50 mA, Test Voltage 48V AC, Standards CE, Communication Protocol USB, Battery Size AA, Display Screen Type LCD, Features Automatic Frequency Control (AFC) to Minimize the Effect of Interference, Performs Testing with and without Stakes
