Fluke I V Curve Tracer Thermography Kit, LCD FLUKE-SOL-TI-27HZKIT - main

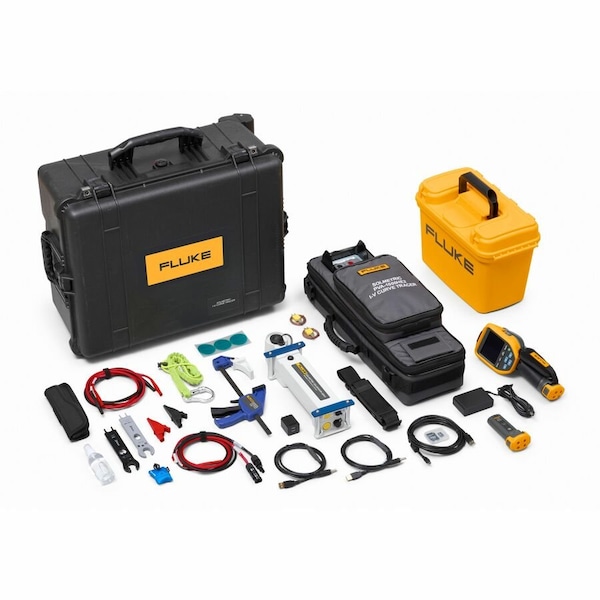

I V Curve Tracer Thermography Kit, LCD

  • Mfr # FLUKE-SOL-TI-27HZKIT

  • Zoro # G912648168

product price: $24,037.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Rugged Lithium Ion Smart Batteries, 2X Thermocouples and Adhesive Disks, 4 GB Micro SD Card, AC Power Supply (Including Universal AC Adapters), Alligator Test Leads, Chargers, Fluke Connect(TM) Software, MC4 Disconnect Tool, PVA Application and Data Analysis Tool, PVA-1500 V Unit, Rugged Hard Carrying Case with Soft Transport Bag and Adjustable Hand Strap, Sensor Cleaning Supplies, SolSensor(TM) and Clamp, Thermal Imager, Transit Case (Included with the PVA-1500HE2), Two-Bay Smart Battery Charger, USB Cable
Auto Power Off
No
Display
LCD
Short Circuit Current Accuracy
+/-0.5%
Includes Batteries
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-SOL-TI-27HZKIT
Zoro #
G912648168
UPC #
195112126349
Country of Origin
United States

Details

Item
I V Curve Tracer Thermography Kit
Includes
(2) Rugged Lithium Ion Smart Batteries, 2X Thermocouples and Adhesive Disks, 4 GB Micro SD Card, AC Power Supply (Including Universal AC Adapters), Alligator Test Leads, Chargers, Fluke Connect(TM) Software, MC4 Disconnect Tool, PVA Application and Data Analysis Tool, PVA-1500 V Unit, Rugged Hard Carrying Case with Soft Transport Bag and Adjustable Hand Strap, Sensor Cleaning Supplies, SolSensor(TM) and Clamp, Thermal Imager, Transit Case (Included with the PVA-1500HE2), Two-Bay Smart Battery Charger, USB Cable
Auto Power Off
No
Display
LCD
Short Circuit Current Accuracy
+/-0.5%
Includes Batteries
Yes
Insulation Resistance Measurement - Minimum
200 kiloohm
Number of Memory Records
500
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty
2 yr
Short Circuit Current Measurement- Minimum
0 A
Open Circuit Voltage Measurement - Minimum
20 V DC
Open Circuit Voltage Measurement - Maximum
1,500 V DC
Maximum Operating Temperature
113 Degrees F
Short Circuit Current Measurement - Maximum
30 A
Open Circuit Voltage Accuracy
+/-0.5%
Open Circuit Voltage Resolution
25 mV
Insulation Resistance Measurement - Maximum
500 gigohm
Short Circuit Current Resolution
2 mA

Description

I V Curve Tracer Thermography Kit, Display LCD, Open Circuit Voltage Measurement - Minimum 20 V DC, Open Circuit Voltage Measurement - Maximum 1,500 V DC, Insulation Resistance Measurement - Minimum 200 kiloohm, Insulation Resistance Measurement - Maximum 500 gigohm, Datalogging Yes
