  9. Immersion Temp Probe, -328 to 788 Deg F

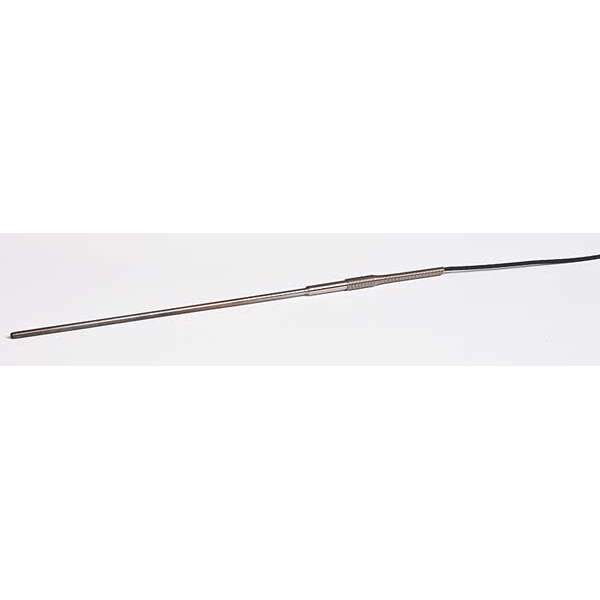

Fluke Immersion Temp Probe, -328 to 788 Deg F 5627A-12-P - main

Immersion Temp Probe, -328 to 788 Deg F

  • Mfr # 5627A-12-P

  • Zoro # G1772242

product price: $1,488.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
RTD
Temp. Range (F)
-328 Degrees to 788 Degrees
Temp. Range (C)
-200 Degrees to 420 Degrees
Probe Length
12 in
Primary Measuring Element
RTD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5627A-12-P
Zoro #
G1772242
UPC #
095969482448
Country of Origin
United States

Dimensions

Probe Length
12 in
Probe Wire Length
6 ft
Wire Length
6 ft.
Manufacturers Warranty Length
1 yr
Probe Dia.
1/4 in
Manufacturer Warranty Length
1 yr
Probe Diameter
0.25 in
Probe Size
1/4 in x 12 in
Cable Length
6 ft

Details

Item
Immersion Temperature Probe
Sensor Type
RTD
Temp. Range (F)
-328 Degrees to 788 Degrees
Temp. Range (C)
-200 Degrees to 420 Degrees
Primary Measuring Element
RTD
Probe Temp. Measuring Element
RTD
Probe Connector
Info-Con Smart Connector
Probe Connection Type
Info-Con Smart Connector
Probe Contact Material
Stainless Steel
Accuracy
+/-0.050 Degrees C
Use
Air or Liquids
Temperature Measuring Element
100 Ohm Industrial PRT
Probe Material
Stainless Steel
Calibration Certificate
NIST
For Use With
Mfr. No. 1523 to 156 and 1524 to 156
Includes Signal Converter
No
Head Material
Stainless Steel
For Surfaces
No
Maximum Temperature C
420 Degrees C
Minimum Temperature C
-200 Degrees C
Handle Material
Steel
For Solids
No
Includes Thermowell
No
For Liquids and Gels
Yes
Flange Material
316 Stainless Steel
For Air
Yes
Connector Type
Info-Con Smart Connector
Handle Type
Straight Handle
Resistance
100 ohm
For Application
Air, Gases
Maximum Temperature F
788 Degrees F
Probe Bend
Angled, Straight
RTD Type
RTD 100 ohm
Temperature Range
-328 Degrees to 788 Degrees F/-200 Degrees to 420 Degrees C
Minimum Temperature F
-328 Degrees F
For Gases
Yes
Probe Sheath Material
316 Stainless Steel
Minimum Temperature °C
-200 Degrees C
Minimum Temperature °F
-328 Degrees F
Maximum Temperature °F
788 Degrees F
Maximum Temperature °C
420 Degrees C

Description

Immersion Temperature Probe, RTD Type RTD 100 ohm, For Application Air, Gases, Number of Wires 4-Wire, Info-Con Smart Connector, Cable Material PTFE Insulated Nickel-Plated Copper, Cable Length 6 ft, Handle Material Steel, -328 Degrees to 788 Degrees F/-200 Degrees to 420 Degrees C
