  9. Infrared Camera, 3.5 in Touch Screen Color LCD, -4 Degrees to 302 Degrees F
Shop All Infrared Thermometers
Fluke

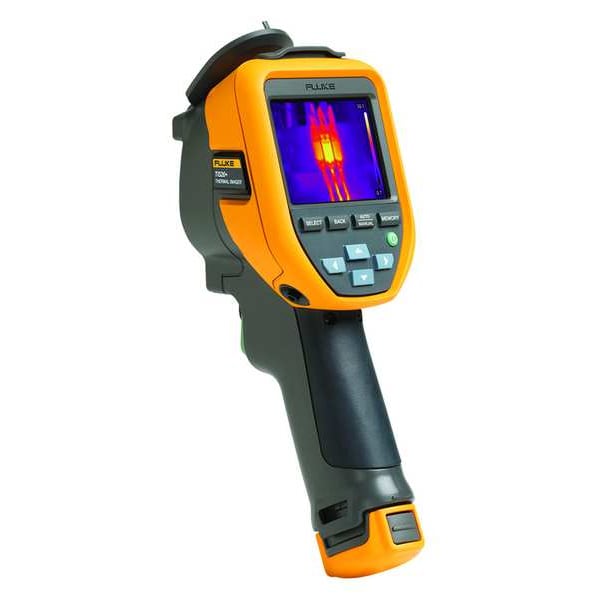

Infrared Camera, 3.5 in Touch Screen Color LCD, -4 Degrees to 302 Degrees F

product price: $2,149.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Temp. Range (F) - Infrared -4 Degrees to 302 Degrees
  • Temp. Range (C) - Infrared -20 Degrees to 150 Degrees
  • Data Logging - Instrument Yes
  • Display - IR Camera 3.5 in Touch Screen Color LCD
See all product information

Product Information

Dimensions

Display Size 3.5 in
Manufacturers Warranty Length 2 yr
Manufacturer Warranty Length 2 yr

Details

Promotion Restriction Not eligible for promotion
Item Infrared Camera
Temp. Range (F) - Infrared -4 Degrees to 302 Degrees
Temp. Range (C) - Infrared -20 Degrees to 150 Degrees
Data Logging - Instrument Yes
Display - IR Camera 3.5 in Touch Screen Color LCD
Included Charger Yes
Wireless Yes
Visual Light Resolution 5 MP
Display Resolution - IR Camera 320 x 240 Pixels
Charger Replacement TI-SBC3B
Articulating Lens No
Special Features IR Fusion, Asset Tagging
Item - Infrared Camera Infrared Camera
Thermal and Visible Light Blending Yes
Multiple Lens Option No
Focus Method Fixed, Manual
Includes AC Power Supply, Battery, USB Cable, Soft Transport Bag
Removable Memory Card Not Included
Detector Resolution - Infrared 120 x 90 Pixels
Thermal Sensitivity 100 mK
Field of View - IR Camera 50.0 Degrees Horizontal x 38.6 Degrees Vertical
File Formats BMP, DIB, GIF, JFIF, JPEG, PNG, TIFF
Focus Distance - Infrared Minimum of 0.50 m
Standards EN 55011: Class A, EN 61000-4-2, EN 60529, EN 60825-1: Class 2, EN 61000-4-3, EN 61010-1: CAT None, Pollution Degree 2, EN 61326-1:2006, EN61326-1, EN62133, FCC Part 5, IEC/EN 61326-1
Display Resolution 320 x 240
Frame Rate - IR Camera 9 Hz
Thermal Sensitivity - IR Camera 60 mK
Field of View 35.7 Degrees x 26.8 Degrees
NIST Certified No
Picture In Picture No
Series Performance
Maximum Temperature Measured Degrees F 662 Degrees F
Number of Batteries Required 1
Temperature Alerts High Temperature, Low Temperature
Alert Type Sound
Calibration Certificate Type Available Separately
Minimum Operating Temperature Degrees F 14 Degrees F
Maximum Temperature Measured Degrees C 50 Degrees C
Emissivity Adjustability Adjustable
Portability Handheld
Lens Angles Included 35.7 Degrees
Accuracy Degrees C +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Battery Run Time 4 hr
Batteries Included Yes
Minimum Focus Distance 0.45 m
Maximum Operating Temperature Degrees F 122 Degrees F
Interface Wireless
Frame Rate 9 Hz
Digital Display Screen Type LCD
Battery Chemistry Lithium Ion
Minimum Temperature Measured Degrees C -20 Degrees C
Data Transfer Type Wireless
Minimum Temperature Measured Degrees F -4 Degrees F
Infrared Resolution 120 x 90

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Sound, Data Transfer Type Wireless, Digital Display Screen Type LCD, Emissivity Adjustability Adjustable, Thermal Sensitivity 100 mK, Minimum Focus Distance 0.45 m, Minimum Operating Temperature Degrees F 14 Degrees F, Minimum Temperature Measured Degrees F -4 Degrees F
