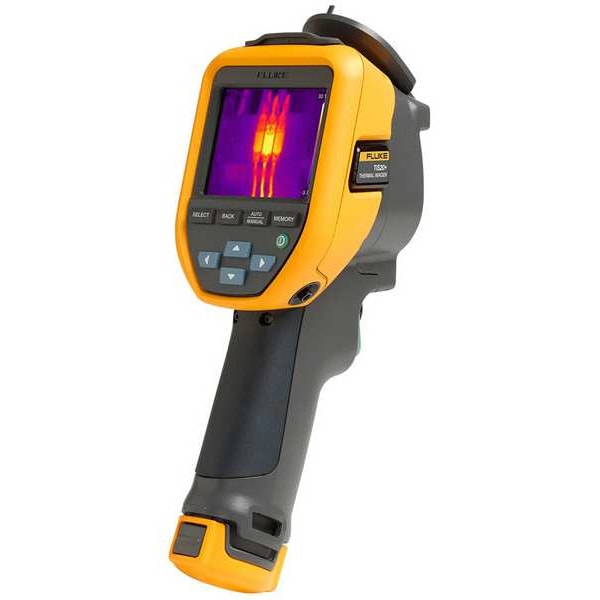

Infrared Camera, 60 mK, 320 x 240 Display, 50 Degrees x 38 Degrees

  • Mfr # FLK-TIS20+ MAX 9HZ

  • Zoro # G001709039


product price: $2,260.00
/ea
Free Shipping & Returns

Key Features

Field of View
50 Degrees x 38 Degrees
Thermal Sensitivity
60 mK
Focus Method
Fixed
Display Resolution
320 x 240
Display Size
3.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLK-TIS20+ MAX 9HZ
Zoro #
G001709039
UPC #
095969979436
Country of Origin
China

Dimensions

Display Size
3.5 in
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Field of View
50 Degrees x 38 Degrees
Thermal Sensitivity
60 mK
Focus Method
Fixed
Display Resolution
320 x 240
File Formats
IS2, JPEG
Includes
Power Supply, Rugged Lithium Ion Smart Battery, Soft Transport Bag, Thermal imager, USB Cable
Standards
CFR, Part 15C, EN 61326-1, CISPR 11: Group 1, Class A, IEC 61010-1: Pollution Degree 2
Minimum Focus Distance
50 cm
Batteries Included
Yes
Lens Angles Included
50 Degrees
Number of Batteries Required
1
Data Transfer Type
Wired, Wireless
Minimum Operating Temperature Degrees F
14 Degrees F
Calibration Certificate Type
Available Separately
Minimum Temperature Measured Degrees C
-20 Degrees C
Minimum Temperature Measured Degrees F
-4 Degrees F
Maximum Temperature Measured Degrees F
752 Degrees F
Digital Display Screen Type
LCD Touchscreen
Battery Chemistry
Lithium Ion
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Battery Run Time
5 hr
Maximum Operating Temperature Degrees F
122 Degrees F
Infrared Resolution
120 x 90
Portability
Handheld
Maximum Temperature Measured Degrees C
50 Degrees C
Emissivity Adjustability
Adjustable
Auto Power Off
Yes
Interface
USB, Wireless
Frame Rate
9 Hz

Description

Infrared Camera, Frame Rate 9 Hz, Calibration Certificate Type Available Separately, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Thermal Sensitivity 60 mK, Minimum Focus Distance 50 cm, Minimum Operating Temperature Degrees F 14 Degrees F, Minimum Temperature Measured Degrees F -4 Degrees F, Maximum Temperature Measured Degrees F 752 Degrees F, Maximum Operating Temperature Degrees F 122 Degrees F
