  9. Insulation Tester, 500 to 1000VDC

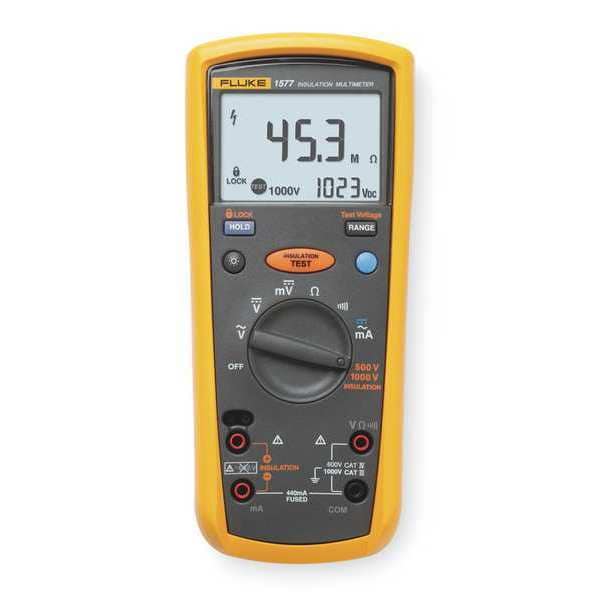

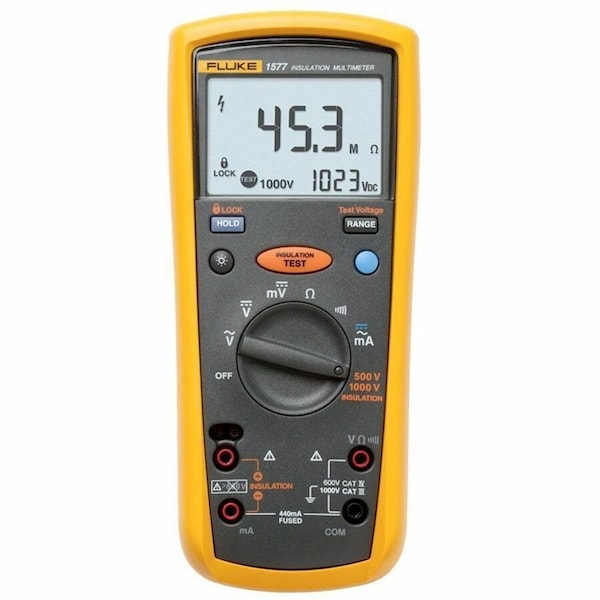

Fluke Insulation Tester, 500 to 1000VDC FLUKE-1577 - main

Insulation Tester, 500 to 1000VDC

  • Mfr # FLUKE-1577

  • Zoro # G1137735

product price: $949.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Alligator Clip, Hard Case, Remote Probe, Test Leads
Insulation Resistance Range
0.1 megaohm to 600 megaohm
Resistance Range
0 to 50 megohm
Output Test Voltage
500/1000V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-1577
Zoro #
G1137735
UPC #
095969319799
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Tool Width
3.9 in
Manufacturer Warranty Length
3 yr
Tool Height
2 in
Battery Size
AA
Tool Length
8 in

Details

Item
Insulation Tester
Power Source
Battery
Includes
Alligator Clip, Hard Case, Remote Probe, Test Leads
Insulation Resistance Range
0.1 megaohm to 600 megaohm
Resistance Range
0 to 50 megohm
Output Test Voltage
500/1000V DC
Max. DC Volts
1,000
Max. DC Amps
400 mA
Auto Ranging
Yes
Display
Multiline LCD
Live Circuit Detection
1000V AC/V DC
Max. AC Amps
400 mA
Safety Rating
CAT III 1000V, CAT IV 600V
Auto Power Off
Yes
Max. AC Volts
600
Leakage Current Range
1 mA
Calibration Certificate
Not Included
Features
AC/DC Milliamps, Accepts Optional Fluke TPAKTM Magnetic Hanging System to Free Your Hands for Other Work, Auto-Discharge of Capacitive Voltage, DC Millivolts, Remote Probe, Test Leads, Alligator Clips, Rugged, Utility Hard Case, True RMS
Backlit Digital Display
Yes
Insulation Resistance Resolution
0.1 to 600 megaohm
Operating Voltage
1,000V
Display Type
Digital
Timed Ramp Voltage Test
Yes
PI/DAR Testing
No
Minimum AC Voltage Measured
0.1 mV
Standards
IEC 61010-1, IEC 61010-2-033
Test Voltage
1,000V DC, 500V DC
Parameters Measured
Resistance
Number of Batteries Required
4
Maximum Operating Temperature
131 Degrees F
Minimum AC Current Measured
0.01 mA
Maximum AC Voltage Measured
1,000 V
Waterproof
No
Live Circuit Voltage
Greater Than30V
Maximum Insulation Resistance
600 megaohm
Greater Than 30V Warning
Yes
Minimum Operating Temperature
-4 Degrees F
Pass/Fail Selection Limits
No
Maximum AC Current Measured
400 mA
Capacitance Auto Discharge
Yes
IP Rating
IP40
Display Screen Type
LCD
Resistance Accuracy
+/-1.20% +2 digits
Dustproof
No
Number of Digits
2
Minimum Insulation Resistance
0.1 megaohm
Maximum DC Voltage Measured
1,000 V
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Testing Functions
Insulation
Battery Chemistry
Alkaline
Remote Test Probe Included
No
USB Data Download Included
No
Test Current
1 mA
Maximum DC Current Measured
400 mA
Includes Batteries
Yes
Insulation Limit Alarm
No
Bluetooth Compatible
No
Maximum Operating Temperature
131 Degrees F

Description

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Alligator Clip, Hard Case, Remote Probe, Test Leads, Insulation Limit Alarm No, Maximum Insulation Resistance 600 megaohm, Minimum Insulation Resistance 0.1 megaohm, PI/DAR Testing No, Parameters Measured Insulation Resistance
