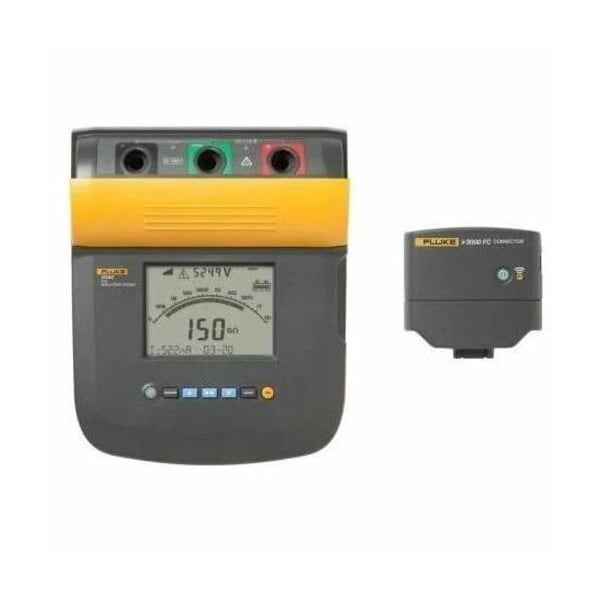

Megohmmeter, 10,000V DC, Battery Operated, 5 Megaohm to 100 Gigohm, USB Data Logging

  • Mfr # FLUKE-1555

  • Zoro # G1249516

product price:
$
7,994.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Power Source
Battery
Includes
AC Power Cord, Alligator Clip Leads, Soft Carrying Case
Insulation Resistance Range
5 megaohm to 100 gigohm
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FLUKE-1555
Zoro #
G1249516
UPC #
095969550925
Country of Origin
United States
Item
Megohmmeter
Power Source
Battery
Includes
AC Power Cord, Alligator Clip Leads, Soft Carrying Case
Insulation Resistance Range
5 megaohm to 100 gigohm
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Interface
USB
Output Test Voltage
50 to 10,000V DC
Data Logging
99 Data Points
Leakage Current Range
1 mA
Capacitance Range
0.01 to 15 uF
Auto Power Off
Yes
Live Circuit Detection
Greater Than 30V
Features
Saves Test Results to the Cloud, Real Time Trending Gives You Easy-to-See Visual Cues, Report Creation Using Fluke Connect Desktop
Calibration Certificate
None
Green Environmental Attribute
Product is Rechargeable
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Parameters Measured
Insulation Resistance
Communication Protocol
USB
Display Type
Digital
Test Voltage
1,000V DC, 10,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC
PI/DAR Testing
Yes
Pass/Fail Selection Limits
Yes
Data Logger
Yes
Greater Than 30V Warning
Yes
Battery Chemistry
Lead Acid
Live Circuit Voltage
Greater Than30V
Waterproof
No
Insulation Limit Alarm
Yes
Capacitance Auto Discharge
Yes
Remote Test Probe Included
No
Minimum Operating Temperature
-4 Degrees F
Display Screen Type
LCD
Maximum Capacitance Measured
15 uF
Minimum Insulation Resistance
5 megaohm
Maximum Operating Temperature
122 Degrees F
Backlit Digital Display
No
Standards
IEC 61326-1, IEC 61326-2-2 CISPR 11
Test Current
1 nA to 2mA
Maximum Insulation Resistance
100 gigohm
USB Data Download Included
Yes
Insulation Resistance Resolution
5 megaohm to 100 gigaohm
Timed Ramp Voltage Test
Yes
Testing Functions
Insulation Resistance
Dustproof
No
IP Rating
IP40
Includes Batteries
Yes
Maximum DC Voltage Measured
5 kV
Number of Records Stored
99
Bluetooth Compatible
Yes
Minimum DC Voltage Measured
250 V
Operating Voltage
600V AC/DC
Minimum Capacitance Measured
0.01 uF
Maximum AC Voltage Measured
600 V
Live Circuit Voltage Measurement - Maximum
30 V
Alert Type
Digital Display, Audible
Instrument Style
Briefcase
Live Circuit Voltage Measurement - Minimum
250 V
Data Output Type
USB
Input Impedance
1 megaohm
Calibration Certificate Included
No Certification Included
Power Source - TS Only
Battery
Power Source - old
Battery

Description

The FLUKE 1555 is a battery-operated megohmmeter used for insulation resistance testing with output test voltages from 50 to 10,000 V DC. It measures insulation resistance from 5 megaohm to 100 gigohm and supports additional insulation test functions including PI/DAR testing and timed ramp voltage testing. This digital megohmmeter is suited for electrical testing and troubleshooting where high-voltage insulation measurement and stored test data are needed.

Key Features of the FLUKE 1555 Megohmmeter:

  • Output test voltage: 50 to 10,000 V DC, with preset test voltages of 250V, 500V, 1,000V, 2,500V, 5,000V, and 10,000V DC.
  • Insulation resistance range: 5 megaohm to 100 gigohm for insulation testing across a wide measurement span.
  • Digital display: LCD digital display for viewing measurement results.
  • Data logging: Stores up to 99 data points/records for retaining test results.
  • Connectivity: Bluetooth compatible with USB interface and USB data download capability.
  • Reporting features: Saves test results to the cloud, provides real-time trending visual cues, and supports report creation using Fluke Connect Desktop.
  • Capacitance functions: Measures 0.01 to 15 uF and includes capacitance auto discharge.
  • Live circuit detection: Detects greater than 30V with warning indication.
  • Pass/fail functions: Includes pass/fail selection limits and an insulation limit alarm.
  • Safety rating: CAT III 1000V, CAT IV 600V.
  • Power and included accessories: Battery powered with included 12V lead acid battery, AC power cord, heavy-duty alligator clip leads, and soft carrying case.
  • Ingress protection: IP40.
