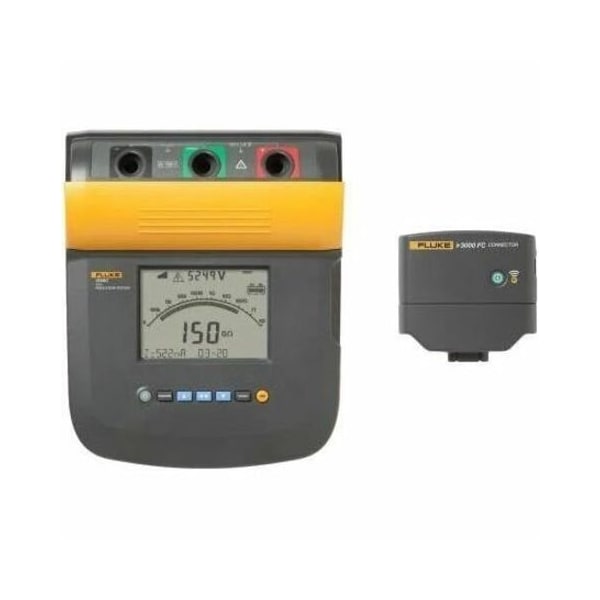

Megohmmeter Kit, 10,000V DC, Battery Operated, Digital, 5 Mohm to 100 Gohm, USB/Bluetooth

The FLUKE 1555/KIT is a battery-operated digital megohmmeter for insulation resistance testing, with an output test voltage range of 50 to 10,000V DC and fixed test voltages of 250V, 500V, 1,000V, 2,500V, and 5,000V DC. It measures insulation resistance from 5 megaohm to 100 gigohm and supports related insulation testing functions such as PI/DAR testing and timed ramp voltage testing. This unit includes data logging, Bluetooth connectivity, and USB communication for storing, downloading, and reporting test results.

Key Features:

• Insulation resistance range: 5 megaohm to 100 gigohm for high-resistance insulation testing.
• Output test voltage: 50 to 10,000V DC, with selectable test voltages of 250V, 500V, 1,000V, 2,500V, and 5,000V DC.
• PI/DAR testing: Supports polarization index and dielectric absorption ratio testing.
• Timed ramp voltage test: Provides ramped insulation testing capability.
• Capacitance measurement: 0.01 to 15 uF, with capacitance auto discharge.
• Data logging: Stores up to 99 records/data points.
• Connectivity: Bluetooth compatible with USB interface and USB data download included.
• Reporting features: Saves test results to the cloud and supports report creation using Fluke Connect Desktop.
• Display: Digital LCD display.
• Warnings and limits: Live circuit detection and greater than 30V warning, plus insulation limit alarm and pass/fail selection limits.
• Safety rating: CAT III 1000V, CAT IV 600V.
• Ingress protection: IP40 rated.
• Included accessories: Heavy-duty alligator clip leads, IP67 hard case, batteries, and calibration certificate.
