Shop FLUKE

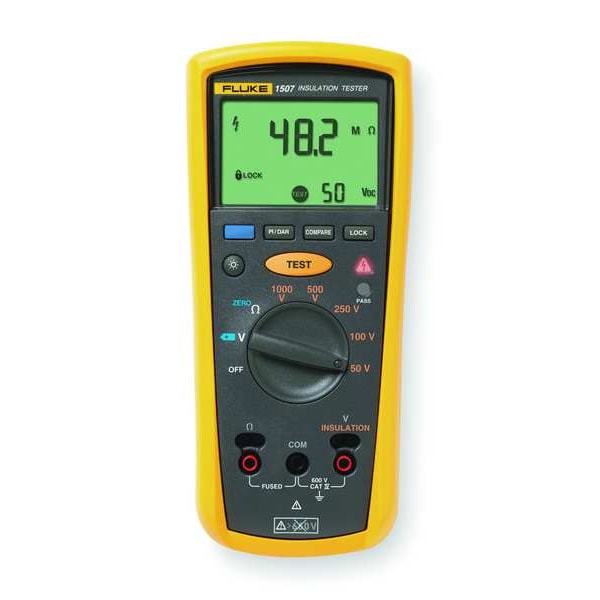

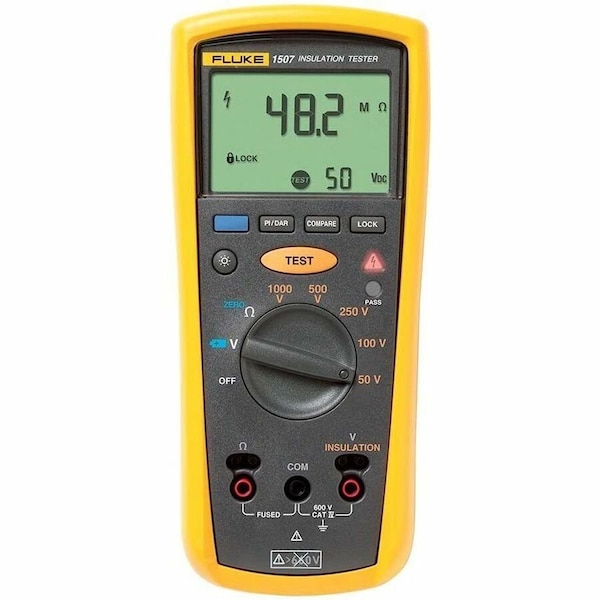

Megohmmeter, CAT III 1000V, CAT IV 600V, Insulation Resistance .01 megaohm to 10 gigohm, Backlit

  • Mfr # FLUKE-1507

  • Zoro # G2224013

product price:
$
880.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Power Source
Battery
Includes
Clips PN 1958654 (Red) and PN 1958646 (Black), Holster, TL224 Test Lead, TP74 Test Probes
Insulation Resistance Range
0.01 gigohm to 10 gigohm
Manufacturers Warranty Length
1 yr
Auto Power Off
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-1507
Zoro #
G2224013
UPC #
095969319805
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Tool Height
8 in
Tool Width
3.9 in
Tool Length
2 in
Battery Size
AA

Details

Item
Insulation Resistance Tester
Power Source
Battery
Includes
Clips PN 1958654 (Red) and PN 1958646 (Black), Holster, TL224 Test Lead, TP74 Test Probes
Insulation Resistance Range
0.01 gigohm to 10 gigohm
Auto Power Off
Yes
Features
Automatically Calculates Polarization Index and Dielectric Absorption Ratio, Makes Repetitive Tests Simple, Rugged, Compact Advanced Insulation Resistance Tester
Output Test Voltage
50/100/250/500/1000V DC
Earth Ground Resistance Range
0.01 to 20 kilohm
Safety Rating
CAT III 1000V, CAT IV 600V
Display
Multiline LCD
Resistance Range
0 to 20 kilohm
Accuracy
+/-2% + 3 Digits
Live Circuit Detection
Greater Than 30V
Leakage Current Range
1 mA
Calibration Certificate
Not Included
Shop By
Hot Buys
Battery Chemistry
Alkaline
Remote Test Probe Included
Yes
Insulation Resistance Resolution
0.01 megaohm to 10 gigaohm
Operating Voltage
600V AC/DC
Includes Batteries
Yes
Display Type
Digital
Minimum Insulation Resistance
0.01 megaohm
Standards
ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, IEC/EN 61010-1
Minimum Operating Temperature
-4 Degrees F
Testing Functions
Insulation Resistance
Maximum AC Voltage Measured
600 V
USB Data Download Included
No
Greater Than 30V Warning
Yes
Capacitance Auto Discharge
Yes
Pass/Fail Selection Limits
Yes
Parameters Measured
Resistance
Display Screen Type
LCD
Bluetooth Compatible
No
Number of Batteries Required
4
Maximum DC Voltage Measured
600 V
Insulation Limit Alarm
No
Timed Ramp Voltage Test
Yes
Dustproof
No
Live Circuit Voltage
Greater Than30V
Number of Digits
3
IP Rating
IP40
Waterproof
No
Test Voltage
1,000V DC, 100V DC, 250V DC, 500V DC, 50V DC
Test Current
Greater Than 200 mA
CAT Safety Rating
CAT IV 600V
PI/DAR Testing
No
Maximum Insulation Resistance
10 gigohm
Resistance Accuracy
+/-1.50% +3 digits
Backlit Digital Display
Yes
Maximum Operating Temperature
131 Degrees F
Maximum Operating Temperature
131 Degrees F
Input Impedance
1 megaohm
Minimum DC Voltage Measured
0.1 V
Data Output Type
No Output
Number of Records Stored
0
Calibration Certificate Included
No Certification Included
Live Circuit Voltage Measurement - Minimum
6 V
Alert Type
Digital Display, Audible
Live Circuit Voltage Measurement - Maximum
30 V
Instrument Style
Handheld
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Clips PN 1958654 (Red) and PN 1958646 (Black), Holster and Remote Probe, TL224 Test Lead, TP74 Test Probes, Insulation Limit Alarm No, Maximum Insulation Resistance 10 gigohm, Minimum Insulation Resistance 0.01 megaohm, PI/DAR Testing No
