Fluke

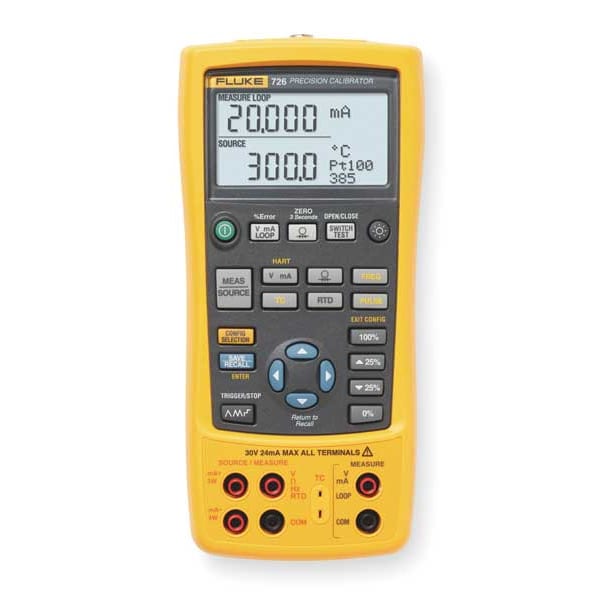

Multifunction Calibrator, Process

product price: $5,288.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Current Measurement Range 0 to 24mA DC
  • Voltage Measurement Range 0 to 30V DC
  • Thermocouple Type B, BP, E, J, K, L, N, R, S, T, U, XK
  • Loop Supply Voltage 24 V DC
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 3 yr

Details

Promotion Restriction Not eligible for promotion
Item Multifunction Calibrator
Current Measurement Range 0 to 24mA DC
Voltage Measurement Range 0 to 30V DC
Thermocouple Type B, BP, E, J, K, L, N, R, S, T, U, XK
Loop Supply Voltage 24 V DC
Source Voltage 0 to 20V DC
Intrinsically Safe No
Pressure Modules 29
RTD Type Cu10, Ni120 (672), Pt100 (365), Pt100 (3916), Pt100 (3926), Pt1000 (385), Pt200 (385), Pt500 (385)
Basic DC Accuracy +/-0.01% + 2mV
RTD Temperature Range -200 Degrees to 800 Degrees C
Measurement Functions F, mA, Ohms, P*, T, V
Source Current 0.001 to 24mA DC
Thermocouple Temperature Range -250 Degrees tO 2500 Degrees C
Max. Loop Current 22 mA DC
Standards CSA C22.2 No. 1010.1:1992
Resistance Source 0 to 4000 ohm
Powered By (4) AA batteries
Frequency Measurement Range 1 Hz to 15.0 kHz, 2 to 1000 CPM
External Pressure Range Dependent On Pressure Module
Calibration Certificate NIST
Displayed Pressure Units bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
Frequency Source Range 1 Hz to 15.0 kHz, 2 to 1000 CPM
Includes 1 Pair Stackable Leads, Batteries and Instructions, Test Clips, Test Leads
Display Multiline LCD
Source/Simulate F, mA, Ohms, P*, T, V
Resistance Measurements 5 to 4000 ohm

Description

Multifunction Calibrator, Voltage Measurement Range 0 to 30V DC, Loop Supply Voltage 24 V DC, Intrinsically Safe No, Pressure Modules 29, Measurement Functions F, mA, Ohms, P*, T, V, Source Current 0.001 to 24mA DC, Current Measurement Range 0 to 24mA DC, Basic DC Accuracy +/-0.01 Percent + 2mV, Thermocouple Temperature Range -250 Degrees tO 2500 Degrees C, Powered By (4) AA Batteries, Includes 1 Pair Stackable Leads, Batteries and Instructions, Test Clips, Test Leads
