Multimeter, Auto Kit

FLUKE| Zoro #: G1613823| Mfr #: Fluke 88 V/A

$669.00 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Capacitance Range: 10.00 nF to 9999 FRPM Range: 30-9000/60-12,000Pulse Width: 0.002-1999.9 mS
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1613823 Mfr #: Fluke 88 V/A
Capacitance Range: 10.00 nF to 9999 FRPM Range: 30-9000/60-12,000

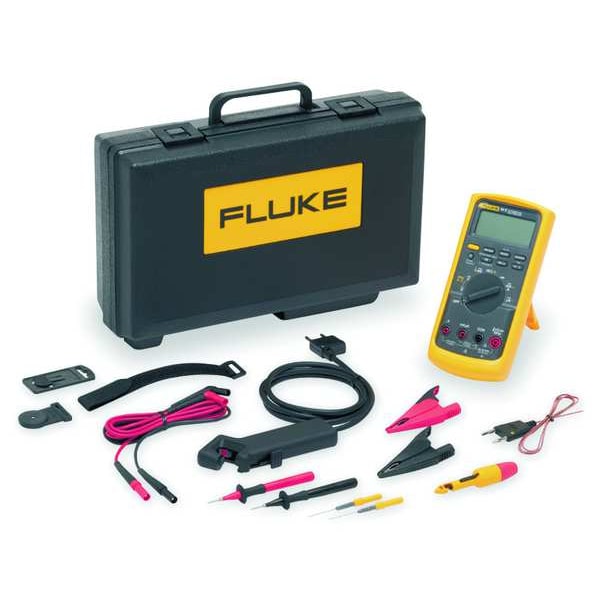

Pulse Width: 0.002-1999.9 mSIncludes: Fluke 88V Automotive Digital Multimeter, No. 3MU86 Leads (TL224), No. 3MU87 Probes (TP220),No. 3MU85 Alligator Clips (AC285), No. 4XL48 Hanger (TPAK) No. 2DPH6 Temp. Probe (80BK-A),No. 5U843 RPM Pick-up (RPM80) 2 Probe Pins, Insulation Piercing Clip, No. 5U830 Case, (C800),No. 4YE79 Holster, 9V Battery and Instructions
Amps DC: 60mA-10AOhms: 600-50M
Manufacturers Warranty Length: Limited LifetimeSafety Rating: CAT IV 600 V, CAT III 1000 V
Duty Cycle: 0-99.9%Basic DC Accuracy: +/-0.1% +1 Dig.
Display: LCDAmps AC: 60mA-10
Temp. Range: -200 To 1090C, -328 To 1994FVoltage (DC): 600 mV-1000
Frequency Range (Hz): 199.99-199.99 KVoltage (AC): 600 mV-1000
Item: Automotive Multimeter KitCountry of Origin (subject to change): United States

Description

A complete automotive diagnostic package with everything you need in an automotive multimeter. Fluke 88V has replaced the 88. The Fluke 88V has improved measurement functions, troubleshooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is made in the U.S.A. and carries the industry leading lifetime warranty. The Fluke 88V operates very similar to the classic Fluke 88, but with more problem solving power, safety, convenience and impact protection. The 88V is independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600 V/CAT III 1000 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes. .

  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Magnetic hanger (included with kit) for easy set-up and viewing while freeing your hands for other tasks
  • Peak min/max to capture intermittent events as short as 250 micro seconds
  • Large digit display with bright, two-level backlight makes the Fluke 88V significantly easier to read than the old Fluke 88
  • Lifetime warranty
  • 6000 counts, 3-3/4 digits
  • Measure up to 1000 V AC and DC
  • Measure up to 10 A, 20 A for up to 30 seconds
  • Built in thermometer lets you carry one less tool (temperature probe included)
  • Frequency to 200 kHz and % duty cycle
  • Resistance, continuity
  • RPM measurements with inductive pickup
  • Millisecond pulse width measurements for fuel injectors
  • Magnet hanger to attach meter to the vehicle and free your hands for other tasks
  • 10,000 µF capacitance range for components and motor caps
  • Min/Max-Average recording with Min/Max Alert to capture variations automatically
  • Peak capture to record transients as fast as 250 µs
  • Relative mode to remove test lead interference from low ohms measurements
  • Auto and manual ranging for maximum flexibility
  • Touch Hold to capture stable readings avoiding noisy signals
  • Large display digits and two-level bright white backlight for increased visibility
  • Analog bargraph for fast changing or unstable signals
