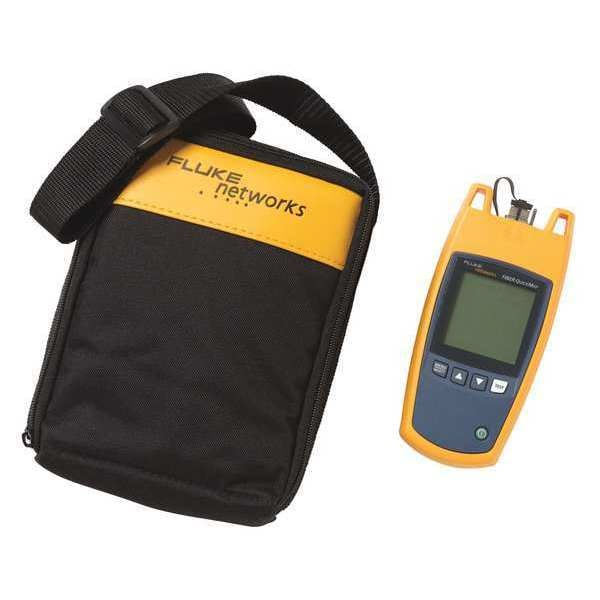

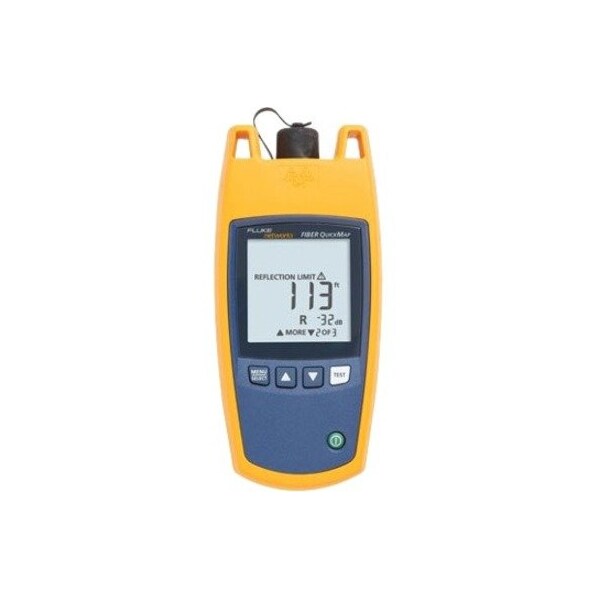

Fluke Networks Fiber Optic Fault Locator, SC Connector FQM-M - main

Fiber Optic Fault Locator, SC Connector

  • Mfr # FQM-M

  • Zoro # G9191500

product price: $2,401.99
/ea
Free Shipping & Returns

Key Features

Application
Fiber Troubleshooting
For Use With
Multimode Fiber
Display
Yes
Measures
Fiber Verification and Fault Location
Features
Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FQM-M
Zoro #
G9191500
UPC #
754082138211
Country of Origin
United States

Dimensions

Maximum Wavelength Measurement
850 nm
Battery Size
AA
Output wavelengths
850 nm ± 10 nm
Battery Size Supported
AA

Details

Item
Fiber Optic Fault Locator
Application
Fiber Troubleshooting
For Use With
Multimode Fiber
Display
Yes
Measures
Fiber Verification and Fault Location
Features
Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber
Connector Type
SC
Includes
FT Adapter, LC Adapter, ST Adapter
Adapter Type
SC
Calibration Certificate
None
Waterproof
No
Line Polarity Indicator
No
Standards
CE, CSA, FCC, N10140
Product Type
Fiber Optic Tester
Battery Chemistry
Alkaline
Maximum Operating Temperature
122 Degrees F
Number of Batteries Required
2
Auto Power Off
Yes
Includes Batteries
Yes
Testing Functions
Cable Length Display, Distance to Fault
Alert Type
Digital Display
Adapters Included
FT, LC, ST
Fiber Mode Measured
Multi-Mode
Display Screen Type
LCD
Backlit Digital Display
Yes
Minimum Operating Temperature
32 Degrees F
Maximum Operating Humidity
95 %
Certifications and Compliance
Conforms to relevant European Union , Listed by the Canadian Standards Association CSA , Conforms to FCC Rules, Part A, Class A , Conforms to relevant Australian standards , C22. 2 No. 61010. 1. 04, directives
Testing speed
< 6 seconds typical
Dynamic range
>11 dB
Altitude
3000m
Operating temperature with the battery
0ºC to 50ºC
Shock
1 meter drop test
Laser safety
Class 1 CDRH Complies to EN 60825-2
Battery type
2 AA alkaline batteries (no battery charger)
LCD type
Backlit black and white (segments)
Live fiber detection
Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Maximum reflectance measurement
-20 dB
Package Contents
Fiber QuickMap FQM-M Fiber Distance/Fault Locator, Multimode Fiber Fault Locator Unit, Screw On Interchangeable SC Adapter, 4-language Quick Reference Guide (Manuals In 9 Languages Available On-line), Safety Instruction Manual, Batteries
Battery life
1500 tests (typical)
Device Function
Multiple Cable Testing, Cable Signal Testing, Speed Testing, Cable Fault Testing, Bandwidth Monitor, Network Troubleshoot, Fiber Optic Cable Testing, Data Analyzer, OTDR Testing, Visual Fault Locator, Device Detection
Connector
Removable/cleanable SC adapter, UPC polish
Detection of loss incidents5
0. 70 dB default threshold (user-configurable from 0. 5 dB to 6. 1 dB in 0. 2 dB increments)
Number of Batteries Supported
2
Index of refraction range
1. 45 to 1. 5 (factory default is 1. 496)
Reflectance accuracy4
± 4 dB
Product Name
Fiber QuickMap FQM-M Fiber Distance/Fault Locator
Product Line
Fiber QuickMap
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)
± (1 m + 0. 1 % x length) for reflective incidents || ± (3 m + 0. 1 % x length) for non-reflective incidents
Laser classification
Class 1 CDRH Complies to EN 60825-2
Detection of reflective incidents3
-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Vibration
Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Operating relative humidity (without condensation)
95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Fiber types tested
50/125 µm or 62. 5/125 µm multimode
Maximum number of incidents shown
9
Auto turn off
Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Maximum distance
1500 meters or 4921 feet
Non-operating temperature
-20ºC to 60ºC

Description

Fiber Optic Fault Locator, Calibration Certificate None, Connector Type SC, Adapters Included Screw-on Interchangeable SC Adapter, Alert Type Digital Display, Fiber Mode Measured Multi-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Cable Length Display, Distance to Fault, Auto Power Off Yes, Backlit Digital Display Yes, Battery Chemistry Alkaline, Battery Size AA, Display Screen Type LCD
