This item is Discontinued.

Fluke Networks Pocket Toner PTNX2-DLX

Pocket Toner (Discontinued)

  • Mfr # PTNX2-DLX
  • Zoro # G4094142
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTNX2-DLX
Zoro #
G4094142
UPC #
754082085775
Country of Origin
Malaysia

Dimensions

Cable Length Display
No
Height
1.7"
Width
3.9"
Depth
7.1"
Battery Size Supported
AAA
Battery Size
AAA
Maximum Cable Length
1,000 ft

Details

Item
Toner
For Use With
Voice, Data and Video Cables
Display
8-segment LED
Primary Function
Copper Cable Tracing (Tone)
Application
Continuity, AC and DC Voltage, Shorts, Opens and 50-75 Ohm Termination
Features
Bi-gender toner unit with Speed 81, LED,Low-voltage Circuit Protection,Auto shutoff feature
Instrument Display
None
Includes
Deluxe Case with Belt Clip, Dial Tone Detective(TM)
Connector Type
66 Block, Alligator Clips, F-Type, RJ11, RJ45
Adapter Type
66 Block, BNC, F-Type, RCA, RJ11, RJ45
Calibration Certificate
Not Included
WiFi Capability
No
Service Detection
No
Data Line Polarity Indicator
No
Wiremapping
No
Continuity Testing
Yes
Ethernet Service Detection
No
Pair Tracing
No
Distance to Fault
No
PoE/PoE+ Detection
No
Impedance Detection
No
Crosstalk Detection
No
Line Polarity Indicator
Y
Tone Generator
Yes
Cable Certification
No
Telephone Service Detection
No
Endpoint Testing
No
Standards
CSA C22.2 No. 61010.1.04, N10140, US Listed
Cable Speed Qualification
No
Waterproof
No
Opens/Shorts Detection
Yes
Tone Detection
Yes
Data Safe Monitor
No
Output Amplitude
3.6 V DC
Product Type
Tone Generator
Voltage
52V
Storage Temperature
-30 °C to +70 °C
Output voltage in continuity mode
3. 6 Vdc (with a new battery)
Toner frequency
Main unit: 2. 7 kHz. Toner cap: 2. 3 kHz
Altitude
3,000 m (10,000 ft) maximum
Auto shut-off
10 minutes
Maximum input voltage
60 Vdc
Operating Temperature
-20 °C to +65 °C
Relative Humidity
5 % to 95 % (non-condensing)
Approximate distance
RG6: 300 m (1,000 ft)
Battery type
1. 5 V AAA alkaline
Device Function
Cable Testing, Continuity Testing, Open Circuit Testing, Short Circuit Testing
Product Line
Pocket Toner
Number of Batteries Supported
1

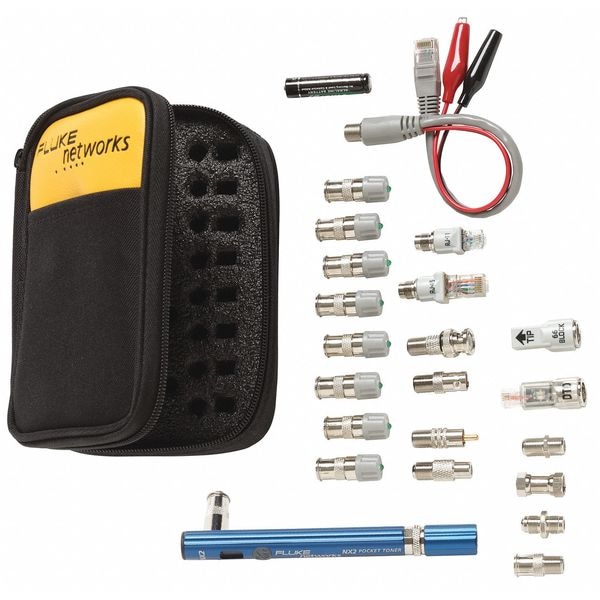

Package Contents
Pocket Toner NX2DLX KIT-Main, Toner, 66 Block Adapter, RJ-11 Adapter, RJ-45 Adapter, Dial Tone Detective, Alligator Clips with RJ-45 Adapter, F-type (F, 9-M-push, M-71, Speed 81) Adapters, RCA (M, F) Adapters, BNC (M, F) Adapters, 1-AAA Battery, Deluxe Case with Belt Clip
Product Name
Pocket Toner NX2DLX KIT-Main
Adapters Included
66 Block, BNC, F-Type, RCA, RJ11, RJ45
Includes Batteries
Yes
Testing Functions
Continuity Testing, Line Polarity Indication, Tone Detection
Maximum Impedance Measured
75 ohm
Maximum DC Voltage Measured
3.6 V DC
Number of Batteries Required
1
Maximum Operating Humidity
95 %
Auto Power Off
Yes
Data Logger
No
Port Number Display
No
Display Screen Type
LED
Maximum Operating Temperature
149 Degrees F
Battery Chemistry
Alkaline
Minimum Operating Temperature
-4 Degrees F
Compatible Cable Type
Coax
Alert Type
Sound, Vibration
Wire Mapping Detections
Opens, Shorts
Operating Voltage
52V

Description

Toner, Testing Functions Continuity Testing, Line Polarity Indication, Tone Detection, Adapters Included 66 Block, BNC, F-Type, RCA, RJ11, RJ45, Connector Type 66 Block, Alligator Clips, F-Type, RJ11, RJ45, Maximum Speed Measured Not Applicable, Data Safe Monitor No, Display Screen Type LED, For Use With Voice, Data and Video Cables, Includes Deluxe Case with Belt Clip, Dial Tone Detective(TM), Maximum Cable Length 1,000 ft, Fault Location Pulse Duration Not Applicable
