This item is Discontinued.

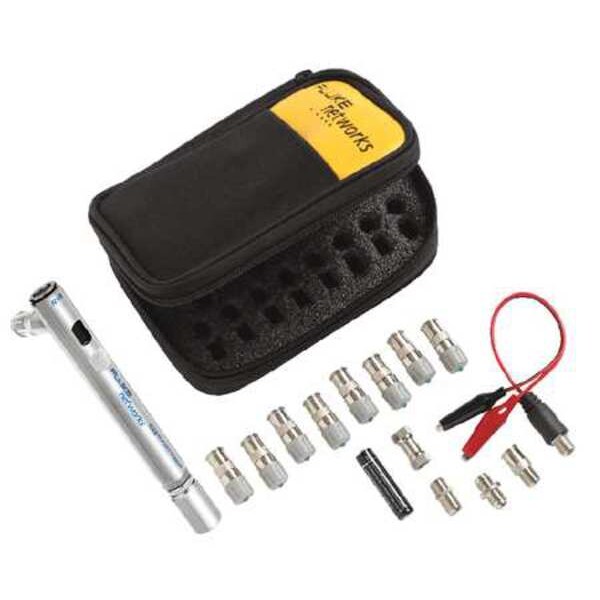

Fluke Networks Pocket Toner PTNX8-Cable

Pocket Toner (Discontinued)

  • Mfr # PTNX8-Cable
  • Zoro # G3972017
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTNX8-Cable
Zoro #
G3972017
UPC #
754082085805
Country of Origin
Malaysia

Dimensions

Cable Length Display
No
Maximum Cable Length
1,000 ft
Battery Size
AAA

Details

Item
Toner
For Use With
Voice, Data and Video Cables
Primary Function
Copper Cable Tracing (Tone)
Application
Continuity, AC and DC Voltage, Shorts, Opens and 50-75 Ohm Termination - 8x Faster
Display
8-segment LED
Features
Bi-gender toner unit with Speed 81, LED,Low-voltage Circuit Protection,Auto shutoff feature
Instrument Display
None
Includes
(8) ID Caps, Deluxe Case with Belt Clip
Connector Type
Alligator Clips
Adapter Type
F-Type
Calibration Certificate
Not Included
PoE/PoE+ Detection
No
Line Polarity Indicator
Y
Distance to Fault
No
Crosstalk Detection
No
Cable Speed Qualification
No
Ethernet Service Detection
No
Pair Tracing
No
Tone Detection
No
Continuity Testing
Yes
WiFi Capability
No
Endpoint Testing
No
Cable Certification
No
Waterproof
No
Wiremapping
No
Tone Generator
No
Opens/Shorts Detection
Yes
Data Line Polarity Indicator
Yes
Impedance Detection
No
Service Detection
No
Telephone Service Detection
Yes
Standards
CSA C22.2 No. 61010.1.04, N10140, US Listed
Data Safe Monitor
No
Output Amplitude
3.6 V DC
Product Type
Tone Generator
Altitude
3,000 m (10,000 ft) maximum
Relative Humidity
5 % to 95 % (non-condensing)
Auto shut-off
10 minutes
Output voltage in continuity mode
3. 6 Vdc (with a new battery)
Storage Temperature
-30 °C to +70 °C
Approximate distance
RG6: 300 m (1,000 ft)
Battery type
1. 5 V AAA alkaline
Toner frequency
Main unit: 2. 7 kHz. Toner cap: 2. 3 kHz
Maximum input voltage
60 Vdc
Operating Temperature
-20 °C to +65 °C
Battery Chemistry
Alkaline
Adapters Included
F-Type
Display Type
Digital
Compatible Cable Type
Coax
Maximum Impedance Measured
75 ohm
Wire Mapping Detections
Opens, Shorts
Testing Functions
Continuity Testing, Line Polarity Indication, Tone Detection
Data Logger
No
Maximum Operating Humidity
95 %
Display Screen Type
LED
Auto Power Off
Yes
Maximum Operating Temperature
149 Degrees F
Alert Type
Digital Display, Sound, Vibration
Maximum DC Voltage Measured
3.6 V DC
Number of Batteries Required
1
Port Number Display
No
Includes Batteries
Yes
Minimum Operating Temperature
-4 Degrees F

Description

Toner, Testing Functions Continuity Testing, Line Polarity Indication, Tone Detection, Adapters Included F-Type, Connector Type Alligator Clips, Maximum Speed Measured Not Applicable, Data Safe Monitor No, Display Screen Type LED, For Use With Voice, Data and Video Cables, Includes (8) ID Caps, Deluxe Case with Belt Clip, Maximum Cable Length 1,000 ft, Fault Location Pulse Duration Not Applicable
