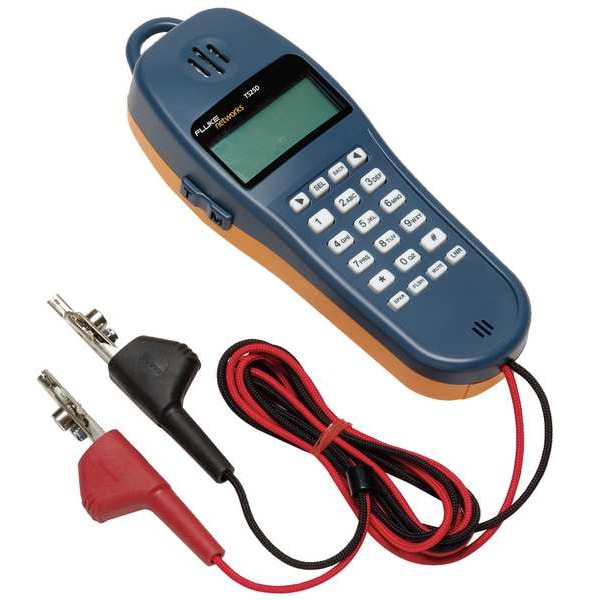

Fluke Networks Test Set, TS25D w/Earpc & Pouch 25501109 - main

Test Set, TS25D w/Earpc & Pouch

  • Mfr # 25501109

  • Zoro # G1838304

product price: $450.99
/ea
Free Shipping & Returns

Key Features

For Use With
Telephone Lines
Application
Butt in Test Set, Call Waiting Caller ID, Caller ID, Data Safe, Digit Grabbing, Line Monitor, Telephone Test Set, Tone Generator
Display
LCD
Features
Amplified Speakers for Hands-Free Monitoring, Caller ID with Call Waiting, Data Lockout Protection
Connector Type
ABN
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
25501109
Zoro #
G1838304
UPC #
754082038801
Country of Origin
Taiwan, Province of China

Dimensions

Height
7.8"
Depth
1.6"
Width
2.7"
Battery Size
9V

Details

Item
Test Set
For Use With
Telephone Lines
Application
Butt in Test Set, Call Waiting Caller ID, Caller ID, Data Safe, Digit Grabbing, Line Monitor, Telephone Test Set, Tone Generator
Display
LCD
Features
Amplified Speakers for Hands-Free Monitoring, Caller ID with Call Waiting, Data Lockout Protection
Connector Type
ABN
Dialing Method
Pulse, Tone
Line Polarity Indicator
Yes
Data Safe Monitor
Yes
Waterproof
No
Automatic Speaker Shut Off Duration
User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes
Altitude
Up to 10,000 ft (3,000 m)
Battery
9 V alkaline or lithium battery
Resistance During Break
>100 kΩ
Storage
-40 °F to 150 °F (-40 °C to 65 °C)
Pulsing Rate
10 pps ±1 pps
Return Loss
>14 dB (ref 600 Ω)
Off-Hook
150 Ω nominal, 600 Ω nominal; 300 Hz to 3400 Hz
Relative Humidity
5 % to 95 %
Break/Make Ratio
60/40
Hook Flash Duration
User programmable Default: 600 ms
Memory Capacity
10 speed dial memories plus one last number redial memory
High versus Low Tone Difference
2 dB ± 2 dB
Tone Level
“1 dBm combined (typical)
Interdigit Interval
>300 ms
Digit Capacity
23 digits per memory
Temperature Range Operating
32°F to 122 °F (0 °C to 50 °C)
Pause Duration
User programmable Default: 4 seconds
Measurement
7. 8 in x 2. 7 in x 1. 6 in (20 cm x 6. 8 cm x 4 cm)
On-Hook
>120 kΩ; 300 Hz to 3400 Hz, >1 MΩ
Tone Frequency Error
±1. 5 % maximum
Battery Chemistry
Alkaline, Lithium
Number of Batteries Supported
1
Product Name
TS 25D Test Sets Device Tester
Package Contents
TS 25D Test Sets Device Tester, Pouch, Earpiece
Display Screen Type
LCD
Product Series
TS
Includes Batteries
Yes
Maximum Operating Temperature
122 Degrees F
Maximum Operating Humidity
95 %
Display Type
Digital
Testing Functions
Continuity Testing, Tone Generator
Number of Digits
23
Auto Power Off
Yes
Adapters Included
ABN
Minimum Operating Temperature
32 Degrees F

Description

Test Set, Adapters Included ABN, Connector Type ABN, Data Safe Monitor Yes, Dialing Method Pulse, Tone, Features Amplified Speakers for Hands-Free Monitoring, Caller ID with Call Waiting, Data Lockout Protection, IP Rating Not Applicable, Number of Digits 23, Testing Functions Continuity Testing, Tone Generator, Auto Power Off Yes, Battery Chemistry Alkaline, Lithium, Battery Size 9V, Display Screen Type LCD, Display Type Digital, Includes Batteries Yes, Maximum Operating Humidity 95 Percent
