- Item
- Cable Tester Kit
- Primary Function
- Copper Cable Testing Verification
- For Use With
- Voice, Data and Video Cables
- Display
- Monochrome LCD with backlight
- Accuracy (%)
- +/-3
- Instrument Display
- LCD
- Connector Type
- RJ11, RJ45
- Includes

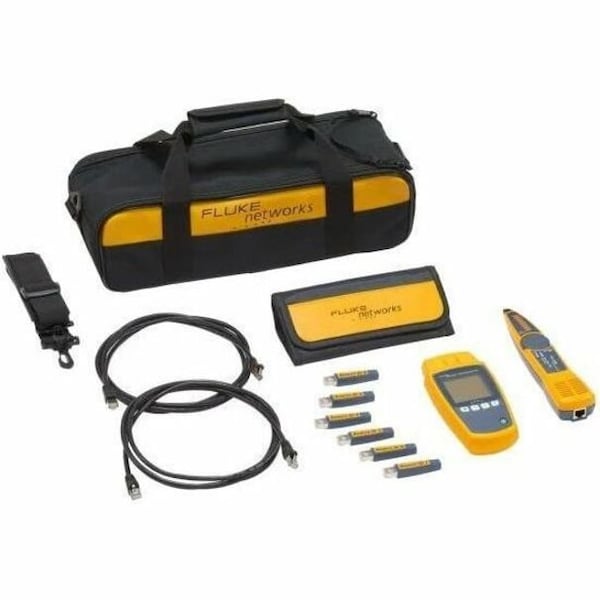

- (2) Patch Cords, (6) Remote IDs, Carrying Case, IntelliTone Pro 200 Probe
- Adapter Type
- RJ45
- Calibration Certificate
- Not Included
- Special Features
- Auto Power Off, POE Testing, Tone Generation
- Ethernet Service Detection
- Yes
- Distance to Fault
- Yes
- Telephone Service Detection
- Yes
- Waterproof
- No
- Impedance Detection
- Yes
- Tone Detection
- Yes
- Cable Certification
- No
- Output Amplitude
- 15 V DC
- Standards
- IEEE-802.3
- WiFi Capability
- No
- Cable Speed Qualification
- Yes
- Service Detection
- Yes
- Wiremapping
- Yes
- PoE/PoE+ Detection
- Yes
- Opens/Shorts Detection
- Yes
- Continuity Testing
- Yes
- Pair Tracing
- Yes
- Endpoint Testing
- Yes
- Tone Generator
- Yes
- Crosstalk Detection
- Yes
- Data Safe Monitor
- Yes
- Data Line Polarity Indicator
- No
- Product Type
- Cable Tester Kit
- Product Name
- MS-POE-KIT Testing Device Remote Kit
- Compatibility
- MicroScanner PoE, MS-PoE Remote ID Kit (2-7), Intellitone Probe, Duffle bag, RJ45 patch cords
- Minimum Operating Temperature
- 32 Degrees F
- Adapters Included
- Wiremap
- Data Logger
- Yes
- Maximum Speed Measured
- 10 GBps
- Number of Results Stored
- 1,000
- Maximum Operating Humidity
- 75 %
- Port Number Display
- Yes
- Includes Batteries
- Yes
- Backlit Digital Display
- Yes
- Testing Functions
- Cable Length Display, Continuity Testing, PoE/PoE+ Detection, Tone Generation, Wire Mapping
- Wire Mapping Detections
- Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs
- Alert Type
- Digital Display
- Number of Batteries Required
- 2
- Compatible Cable Type
- Twisted Pair
- Battery Chemistry
- Alkaline
- Maximum Operating Temperature
- 113 Degrees F
- Display Screen Type
- LCD with Backlight
- Safety
- IEC 61010-1 3rd Edition
- Cable test
- Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner™ PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
- Cable types tested
- Twisted pair: UTP, FTP, SSTP
- EMC
- IEC 61326-1
- Operating temperature
- 32 °F to 113 °F (0 °C to 45 °C)
- PoE
- MicroScannerâ„¢ PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco's Universal Power over Ethernet) compatible PoE devices
- Test connectors
- Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs.
- Altitude
- 4,000 m; Storage: 12,000 m
- Storage temperature
- -4 °F to +140 °F (-20 °C to +60 °C)
- Ethernet port detection
- MicroScannerâ„¢ PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.
- Wiremap test
- Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
- Power
- Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
- Operating relative humidity (% RH without condensation)
- 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
- Shock and Vibration
- Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
