  5. Power Quality Analyzer, 6000MW, Soft Case

This item is Discontinued.

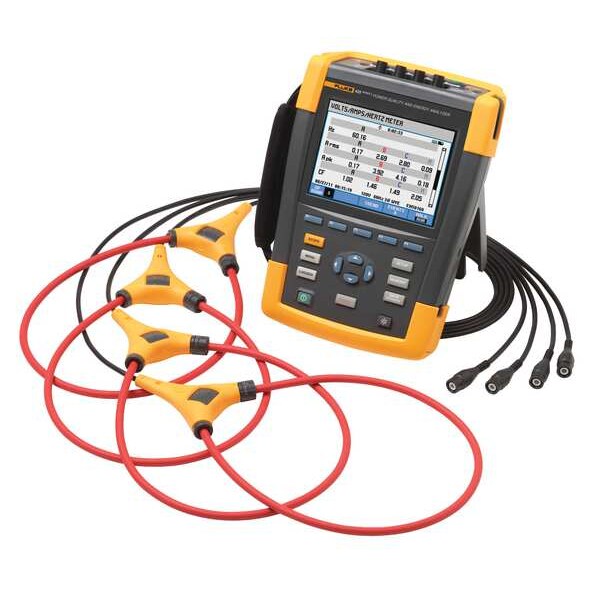

Fluke Power Quality Analyzer, 6000MW, Soft Case FLUKE-435-II

Power Quality Analyzer, 6000MW, Soft Case (Discontinued)

  • Mfr # FLUKE-435-II
  • Zoro # G4313321
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-435-II
Zoro #
G4313321
UPC #
095969615563
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
1 yr (Accessories), 3 yr (Instrument)

Details

Item
Power Quality Analyzer
Sampling Rate
200 kHz
Phase
3
Includes
(4) 24 in L Flexible Current Probes, 8 GB SD Card, BC430 Power Adapter, BP290 Single Capacity Li-ion Battery, 28 Wh (8 hr or More), C1740 Soft Case, International Plug Adapter Set, Operator Manuals In PDF Format, PowerLog on CD, TL430 Test Lead and Alligator Clip Set, USB Cable A - Mini B, WC100 Color Coding Clips and Regional Decals, i430flex-TF-II
Max. Watts
6,000 MW
Kit Current Capability
3,000 A
Display
Color LCD
Max. DC Amps
2,000 A
Max. AC Amps
6,000 A
Storage
8 GB Standard Up to 32 GB
Current Channels
4
Crest Factor
0 to 10
Power Factor
0 to 1
Current Accuracy
+/-0.5% +30 Digits
Max. DC Voltage
1,000V
Display Resolution
320 x 240
AC Response
TRMS
Peak Capture
Yes
Max. AC Voltage
1,000
Min. Transient Duration
10 uS
Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Certificate
NIST
Data Logging
Yes
Voltage Accuracy
+/-0.1%
Voltage Channels
5
Harmonic Capture Range
50th
Communication Protocol
USB, Mini-USB-B, SD Card
IP Rating
IP51
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F

Description

Power Quality Analyzer, Calibration Certificate NIST, Current Channels 4, Includes (4) 24 in L Flexible Current Probes, 8 GB SD Card, BC430 Power Adapter, BP290 Single Capacity Li-ion Battery, 28 Wh (8 hr or More), C1740 Soft Case, International Plug Adapter Set, Operator Manuals In PDF Format, PowerLog on CD, TL430 Test Lead and Alligator Clip Set, USB Cable A - Mini B, WC100 Color Coding Clips and Regional Decals, i430flex-TF-II, Peak Capture Yes, Power Factor 0 to 1, Voltage Channels 5

Restrictions

Hazardous material
