This item is Discontinued.

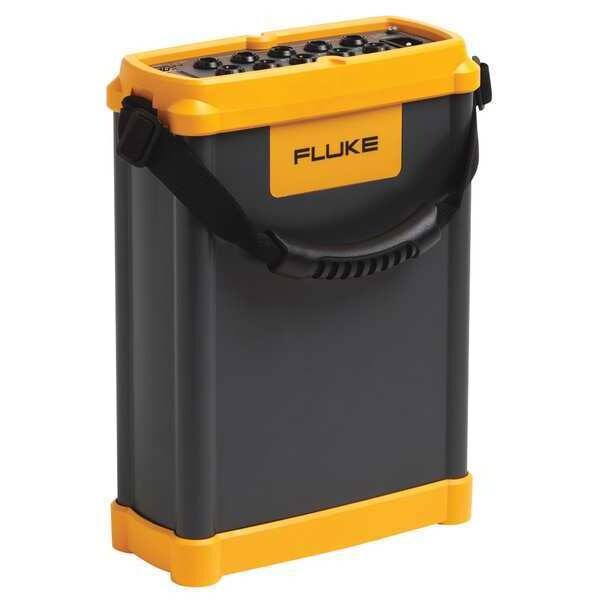

Fluke Power Recorder, 1.56GW Max. Watts, 2 GB FLUKE-1750-TF/ET

Power Recorder, 1.56GW Max. Watts, 2 GB (Discontinued)

  • Mfr # FLUKE-1750-TF/ET
  • Zoro # G8500619
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-1750-TF/ET
Zoro #
G8500619
UPC #
095969843744
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
No Warranty (Service Available)

Details

Item
Power Recorder
Sampling Rate
1 MHz, 256 sec/cycle
Phase
3
Includes
4 x 3210-PR-TF-II 1,000 A, 5 Test Leads and Clips, Android Tablet Wireless, Front Panel Interface and Charger Power Plug Adapters, SD Memory Card, TF/ET, Thin Flex-II 61cm 24 in
Max. Watts
1.56 GW
Kit Current Capability
1,500 A
Calibration Frequency
42.5 to 69 Hz
Harmonic Capture Range
50th
Crest Factor
Less Than 3
Min. Transient Duration
200 nS
Power Factor
-1 to 1
Calibration Certificate
NIST
Max. AC Voltage
1,000
Voltage Accuracy
+/-10%
Safety Rating
2000, EN 61010-1 2nd Edition
Data Logging
Yes
Voltage Channels
4
Storage
2 GB
Current Accuracy
+/-0.1%
Max. DC Amps
1,000 A
Max. VA
1,100 VA
Max. AC Amps
1,000 A
Peak Capture
Yes
Current Channels
5
AC Response
7 kHz
Max. DC Voltage
1,000V
Communication Protocol
Bluetooth, RJ-45, Ethernet
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
IP Rating
IP30

Description

Power Recorder, Calibration Certificate NIST, Current Channels 5, Includes 4 x 3210-PR-TF-II 1,000 A, 5 Test Leads and Clips, Android Tablet Wireless, Front Panel Interface and Charger Power Plug Adapters, SD Memory Card, TF/ET, Thin Flex-II 61cm 24 in, Peak Capture Yes, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol Bluetooth, RJ-45, Ethernet, Crest Factor Less Than 3, Current Accuracy +/-0.1 Percent
