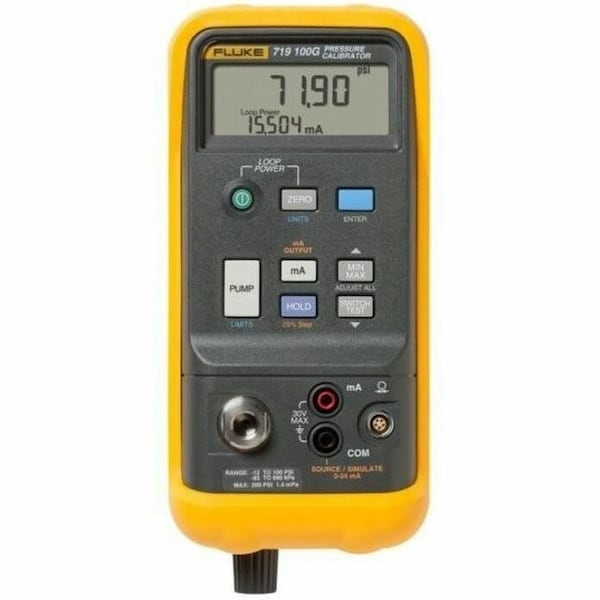

Fluke Pressure Calibrator, -12 to 120 psi FLUKE-719 100G - main

Pressure Calibrator, -12 to 120 psi

  • Mfr # FLUKE-719 100G

  • Zoro # G8393515

product price: $5,009.99
/ea
Free Shipping & Returns

Key Features

Includes
Alligator Clips, Hose Kit, Protective Yellow Holster, Test Leads
Display
Multiline LCD
Standards
CSA C22.2 No. 1010.1:1992, EN50082-1:1992 and EN55022:1994 Class B
Loop Supply Voltage
24 V DC
Powered By
(2) 9V Alkaline Batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-719 100G
Zoro #
G8393515
UPC #
095969465373
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Battery Size
9V

Details

Item
Handheld Pressure Calibrator
Includes
Alligator Clips, Hose Kit, Protective Yellow Holster, Test Leads
Display
Multiline LCD
Standards
CSA C22.2 No. 1010.1:1992, EN50082-1:1992 and EN55022:1994 Class B
Loop Supply Voltage
24 V DC
Powered By
(2) 9V Alkaline Batteries
Current Measurement Range
0 to 24mA DC
Displayed Pressure Units
bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
Internally Generated Pressure Range
0 to 100 psi
Pressure Range with External Modules
1 in wc to 10,000 psi
Pressure Source
Internal Electric Pump
Internal Pressure Measurement Range
-12 to 120 psi
Calibration Certificate
NIST
Measurement Functions
mA DC, Pressure
Pressure Modules
750P Series (50 Ranges)
Source Current
4 to 20mA
Internal Pressure Range Accuracy
+/-0.035% of Full Scale
Parameters Sourced
AC Current, DC Current, Pressure
Voltage Measurement - Maximum
24 V DC
Communication Protocol
HART
Pressure Measurement - Minimum
-12 psi
Intrinsic Safety
Not Specified Intrinsically Safe
Parameters Measured
AC Current, DC Current, Pressure
Includes Batteries
Batteries Included
Voltage Measurement - Minimum
0 V DC
Current Measurement - Minimum
0 mA
Battery Chemistry
Alkaline
Calibration Certificate Type
NIST
Digital Display Screen Type
LCD
Source Current - Maximum
24 mA
Source Current - Minimum
0 mA
Current Measurement - Maximum
24 mA
Pressure Measuring Units
bar, mbar, psi
Pressure Measurement Accuracy
0.025% (6 Months); 0.035% (1 Year)
Number of Batteries Required
1
Pressure Measurement - Maximum
120 psi

Description

Handheld Pressure Calibrator, Internal Electric Pump Pressure Source, Measurement Functions mA DC, Pressure, Internal Pressure Measurement Range -12 to 120 psi, Internally Generated Pressure Range 0 to 100 psi, Pressure Range with External Modules 1 in wc to 10,000 psi, Loop Supply Voltage 24 V DC, Current Measurement Range 0 to 24mA DC, Source Current 4 to 20mA, Display Multiline LCD, Standards CSA C22.2 No. 1010.1:1992, EN50082-1:1992 and EN55022:1994 Class B, Calibration Certificate NIST
