Shop FLUKE

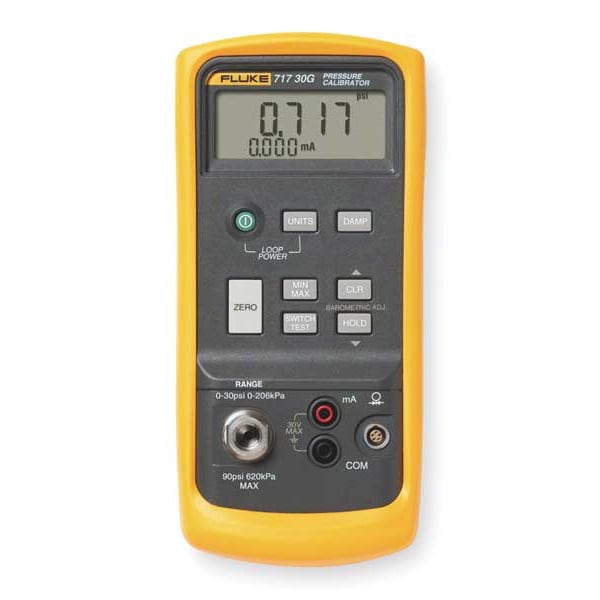

Pressure Calibrator, -12 to 30 psi

  • Mfr # Fluke-717 30

  • Zoro # G8020363

product price:
$
2,394.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes
Alligator Clips, Protective Yellow Holster with Test Lead Storage, Test Leads
Display
Multiline LCD
Standards
ANSI/NEDA 1604A or IEC 6LR61
Loop Supply Voltage
24 V DC
Powered By
9V Alkaline Battery
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Fluke-717 30
Zoro #
G8020363
UPC #
095969059893
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Battery Size
9V

Details

Item
Handheld Pressure Calibrator
Includes
Alligator Clips, Protective Yellow Holster with Test Lead Storage, Test Leads
Display
Multiline LCD
Standards
ANSI/NEDA 1604A or IEC 6LR61
Loop Supply Voltage
24 V DC
Powered By
9V Alkaline Battery
Current Measurement Range
0 to 24mA DC
Displayed Pressure Units
bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
Pressure Modules
750P Series (50 Ranges)
Pressure Source
External
Measurement Functions
mA DC, Pressure
Calibration Certificate
NIST
Pressure Range with External Modules
1 in wc to 10,000 psi
Internal Pressure Measurement Range
-12 to 30 psi
Internal Pressure Range Accuracy
+/-0.05% Full Scale
Pressure Measurement - Minimum
-12 psi
Voltage Measurement - Maximum
30 V DC
Voltage Measurement - Minimum
0 V DC
Intrinsic Safety
Not Specified Intrinsically Safe
Source Current - Minimum
0 mA
Pressure Measuring Units
bar, kPa, mbar, psi
Parameters Measured
AC Current, DC Current, Pressure
Source Current - Maximum
24 mA
Parameters Sourced
AC Current, DC Current, Pressure
Digital Display Screen Type
LCD
Includes Batteries
Batteries Included
Current Measurement - Minimum
0 mA
Battery Chemistry
Alkaline
Pressure Measurement Accuracy
0.05% Full Scale
Current Measurement - Maximum
24 mA
Calibration Certificate Type
NIST
Number of Batteries Required
1
Pressure Measurement - Maximum
30 psi

Description

Handheld Pressure Calibrator, External Pressure Source, Measurement Functions mA DC, Pressure, Internal Pressure Measurement Range -12 to 30 psi, Pressure Range with External Modules 1 in wc to 10,000 psi, Loop Supply Voltage 24 V DC, Current Measurement Range 0 to 24mA DC, Display Multiline LCD, Standards ANSI/NEDA 1604A or IEC 6LR61, Calibration Certificate NIST, Powered By 9V Alkaline Battery, Manufacturers Warranty Length 3 yr
