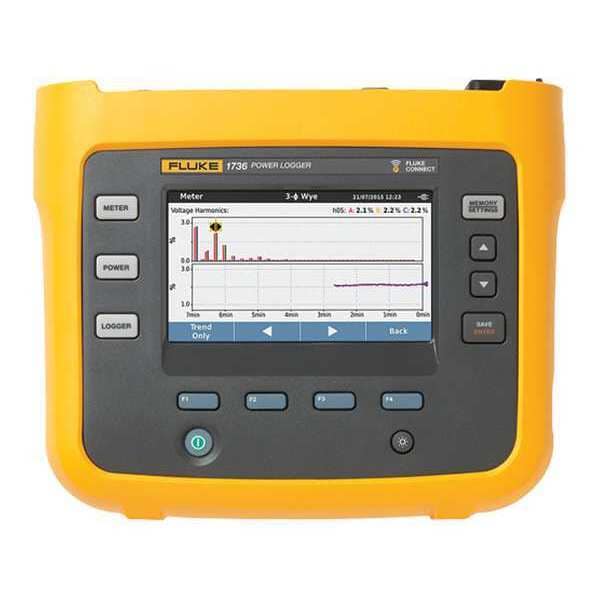

Fluke Pwr Quality Anlyzr Kit, 4 Current Probes FLUKE-1736/EUS/WWG - main

Pwr Quality Anlyzr Kit, 4 Current Probes

  • Mfr # FLUKE-1736/EUS/WWG

  • Zoro # G3111921

product price:  $8,039.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
97 sec/cycle
Phase
3
Includes
(3) Line Cords, (4) 1500 A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1736, Soft Case, Voltage Test Leads, WiFi Adapter
Max. Watts
1,000 TW
Kit Current Capability
1,500 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-1736/EUS/WWG
Zoro #
G3111921
UPC #
095969810760
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
2 yr

Details

Item
Power Logger Kit
Sampling Rate
97 sec/cycle
Phase
3
Includes
(3) Line Cords, (4) 1500 A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1736, Soft Case, Voltage Test Leads, WiFi Adapter
Max. Watts
1,000 TW
Kit Current Capability
1,500 A
Display
Color LCD Touch Screen
Display Resolution
480 x 272
Voltage Accuracy
+/-0.2%
Data Logging
Yes
Current Channels
4
Peak Capture
No
Harmonic Capture Range
20uS
Current Accuracy
+/-1%
Voltage Channels
4
Crest Factor
Less Than 3
Storage
2 GB
Max. AC Voltage
1,000
Power Factor
-1 to 1
Max. AC Amps
6,000 A
Calibration Certificate
Included
Min. Transient Duration
10.24 kHz
AC Response
5 kHz
Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Frequency
42.5 to 69 Hz
Max. VA
1,000 TVA
Communication Protocol
Bluetooth, USB-A, USB-Mini, Wi-Fi
For Phase
Single, Split, Three
Maximum AC Current Measured
6,000 A
IP Rating
IP50
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
14 Degrees F
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Certificate Included
No Certification Included
AC Magnitude Calculation
True RMS
Testing Functions
Current, Energy, Phase Load, Power, Power Factor, Voltage
Display Type
Digital
Alert Type
Light
Input Impedance
10 megaohm
Maximum DC Voltage Measured
1,000 V
Maximum AC Voltage Measured
1,000 V
Power Source
Battery, Measurement Line, Wire Leads
Data Output Type
Bluetooth, USB, Wi-Fi
Maximum Wattage
1,000 TW

Description

Power Logger Kit, Current Channels 4, For Phase Single; Split; Three, Includes (3) Line Cords, (4) 1500 A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1736, Soft Case, Voltage Test Leads, WiFi Adapter, Maximum AC Current Measured 6,000 A, Peak Capture No, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol Bluetooth, USB-A, USB-Mini, Wi-Fi, Crest Factor Less Than 3, Current Accuracy +/-1 Percent
