-328 Degrees to 1472 Degrees F, (-200 Degrees to 800 Degrees C) (Dependent on Type RTD)
Voltage Measurement Range
0 to 30V DC
Resistance Source
15 to 3200 ohm
Source Voltage
-10mV to 10V DC
Calibration Certificate
NIST
Thermocouple Temperature Range
-328 Degrees to 2498 Degrees F, (-200 Degrees to 1370 Degrees C) (Dependent on Thermocouple Type)
Max. Loop Current
22mADC
Thermocouple Type
J , K, T, E, R, S, B, L, U, N, XK and BP
Source/Simulate
T, Ohms, V
Resistance Measurements
0 to 3200 ohm
Measurement Functions
Current, Resistance, Temperature, Voltage
Millivolt Range
0 to 100mV DC
Sensor Temperature Range
-20 Degrees to 1,750 Degrees C (Type R), -20 Degrees to 1,750 Degrees C (Type S), -200 Degrees to 1,200 Degrees C (Type J), -200 Degrees to 1,370 Degrees C (Type K), -200 Degrees to 13,000 Degrees C (Type N), -200 Degrees to 400 Degrees C (Type T), -200 Degrees to 600 Degrees C (Type U), -200 Degrees to 900 Degrees C (Type L), -200 Degrees to 950 Degrees C (Type E), 600 Degrees to 1,800 Degrees C (Type B)
Number of Digits
5
Sensor Minimum Temperature C
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type J), -200 Degrees C (Type K), -200 Degrees C (Type L), -200 Degrees C (Type N), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
Accuracy - Measure
0.02% +2 Counts
Auto Power Off
Yes
Accuracy - Source
0.025 % +1 Count
RTD Temperature Range C
-200 Degrees to 800 Degrees C
Sensor Type
RTD, Thermocouple
Thermocouple Temperature Range C
-200 Degrees to 1,370 Degrees C
Data Hold
No
Temperature Range
-328 Degrees to 1,472 Degrees F/-200 Degrees to 800 Degrees C (RTD), -328 Degrees to 2,498 Degrees F/-200 Degrees to 1,370 Degrees C (Thermocouple)
Sensor Maximum Temperature C
1,800 Degrees C (Type B), 950 Degrees C (Type E), 1,200 Degrees C (Type J), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 13,000 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 600 Degrees C (Type U)
Includes NIST-Traceable Certificate
Yes
Resistance Range
0 to 3,200 ohm
Resistance Accuracy
15 to 3,200 ohm
Calibration Details
+/-0.005% of Range per Degrees C from -10 Degrees to 18 Degrees C, 28 Degrees to 55 Degrees C
Millivolt Accuracy
0.02% +2
RTD Temperature Range F
-328 Degrees to 1,472 Degrees F
For Thermocouple Type
Type B, Type BP, Type E, Type J, Type K, Type L, Type N, Type R, Type S, Type T, Type U, Type XK
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type J), -200 Degrees C (Type K), -200 Degrees C (Type L), -200 Degrees C (Type N), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
Sensor Maximum Temperature °C
1,800 Degrees C (Type B), 950 Degrees C (Type E), 1,200 Degrees C (Type J), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 13,000 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 600 Degrees C (Type U)
Sensor Maximum Temperature °C
1,800 Degrees C (Type B), 950 Degrees C (Type E), 1,200 Degrees C (Type J), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 13,000 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 600 Degrees C (Type U)
Sensor Minimum Temperature °C
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type J), -200 Degrees C (Type K), -200 Degrees C (Type L), -200 Degrees C (Type N), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
Description

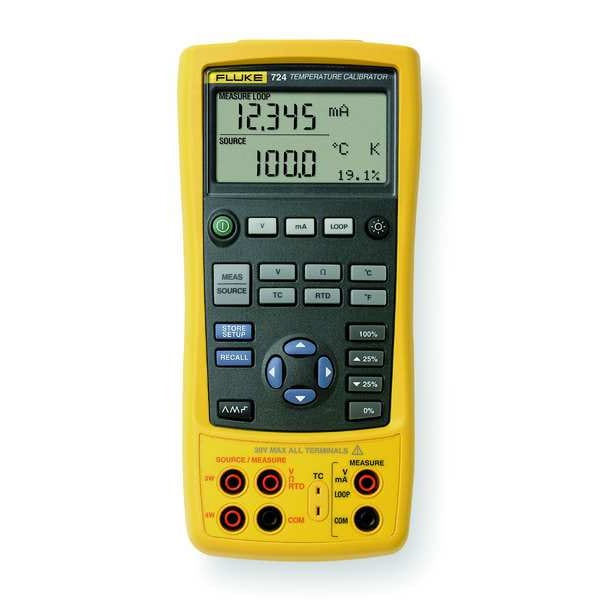

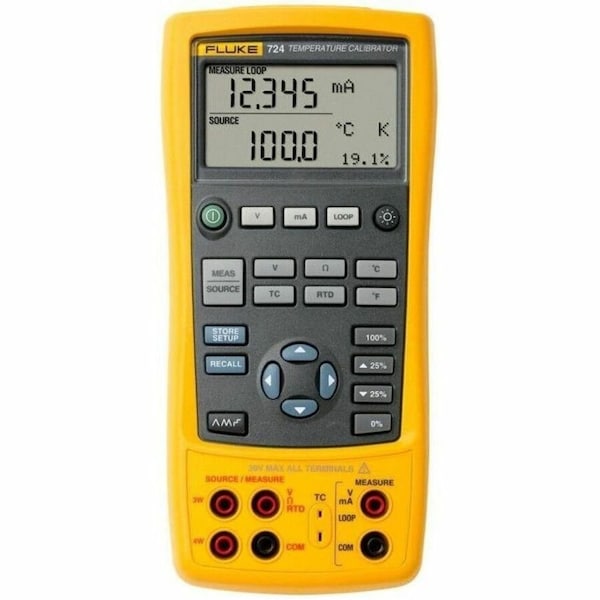

Handheld Temperature Calibrator, Sensor Type RTD, Thermocouple, +/-0.005 Percent of Range per Degrees C from -10 Degrees to 18 Degrees C, 28 Degrees to 55 Degrees C, -328 Degrees to 1,472 Degrees F/-200 Degrees to 800 Degrees C (RTD), -328 Degrees to 2,498 Degrees F/-200 Degrees to 1,370 Degrees C (Thermocouple)
