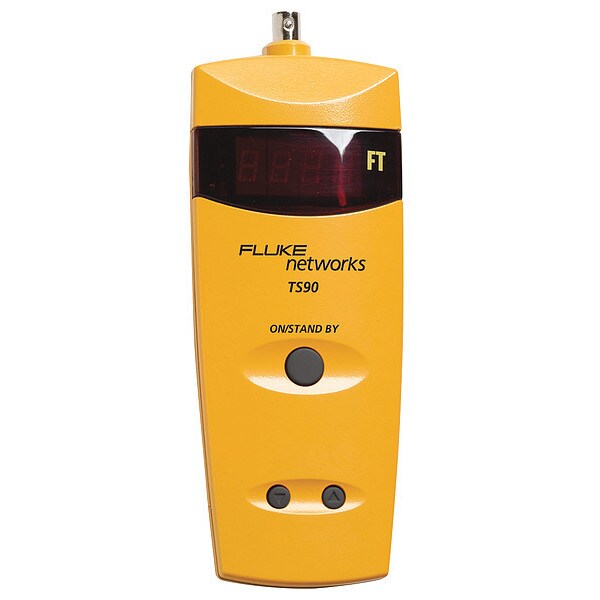

Fluke

Tester, TS90 BNC


product price: $332.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • For Use With Electrical, Security
  • Standards CAN/CSA-C22.2 No. 1010.1-92, CAN/CSA-C22.2 No. 60950-1-03, CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
  • Product Type Time Domain Reflectometer
  • Calibration Certificate Not Included
See all product information

Product Information

Dimensions

Minimum Cable Length 24 in
Maximum Cable Length 2,500 ft
Battery Size AA

Details

Promotion Restriction Not eligible for promotion
Item Cable Tester
For Use With Electrical, Security
Standards CAN/CSA-C22.2 No. 1010.1-92, CAN/CSA-C22.2 No. 60950-1-03, CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
Product Type Time Domain Reflectometer
Calibration Certificate Not Included
Maximum Operating Humidity 100 %
Number of Batteries Required 4
Includes Batteries Yes
Output Amplitude 6 V
Maximum Operating Temperature 158 Degrees F
Connector Type Alligator Clips
Data Safe Monitor Yes
Maximum Impedance Measured 330 ohm
Testing Functions Cable Length Display, Distance to Fault, Tone Generation
Alert Type Digital Display
Adapters Included BNC
Fault Location Pulse Duration 2 sec
Battery Chemistry Alkaline
Minimum Operating Temperature -40 Degrees F
Display Screen Type LED
Compatible Cable Type Telephone
Port Number Display No
Waterproof No
Wire Mapping Detections Opens, Shorts
Data Logger No

Description

Cable Tester, Testing Functions Cable Length Display, Distance to Fault, Tone Generation, Adapters Included BNC, Connector Type Alligator Clips, Maximum Speed Measured Not Applicable, Data Safe Monitor Yes, Display Screen Type LED, For Use With Electrical, Security, Maximum Cable Length 2,500 ft, Fault Location Pulse Duration 2 sec, Wire Mapping Detections Opens, Shorts, Alert Type Digital Display, Port Number Display No, Waterproof No, Product Type Time Domain Reflectometer
