  5. Thermal Camera, -4 Degrees to 842 Degrees F, 40 mK, 640 x 480 Display, 28 Degrees x 20 Degrees

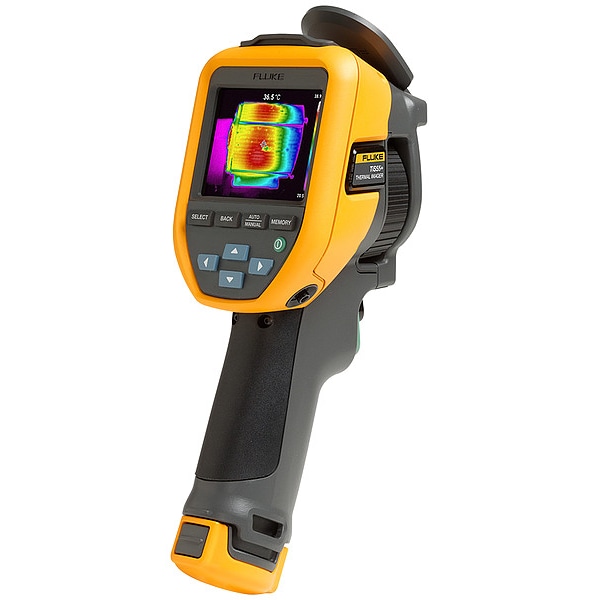

Fluke Thermal Camera, -4 Degrees to 842 Degrees F, 40 mK, 640 x 480 Display, 28 Degrees x 20 Degrees FLK-TIS55+ 27HZ - main

Thermal Camera, -4 Degrees to 842 Degrees F, 40 mK, 640 x 480 Display, 28 Degrees x 20 Degrees

  • Mfr # FLK-TIS55+ 27HZ

  • Zoro # G000422571

original price:  $4,356.99 , new price: $4,349.99
new price:  $4,349.99
/ea
Free Shipping & Returns

Key Features

Field of View
28 Degrees x 20 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 842 Degrees
Features
IR-Fusion(R)
Thermal Sensitivity
40 mK
Focus Method
Fixed, Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLK-TIS55+ 27HZ
Zoro #
G000422571
UPC #
095969946261
Country of Origin
China

Dimensions

Display Size
3.5 in
Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr

Details

Item
Thermal Camera
Field of View
28 Degrees x 20 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 842 Degrees
Features
IR-Fusion(R)
Thermal Sensitivity
40 mK
Focus Method
Fixed, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
BMP, GIF, IS2, JPEG, PNG, TIFF
Removable Memory Card
4GB MicroSD
Includes
Two-Bay Battery Charger
Standards
47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249, IEC 61010-1: Pollution Degree 2, IEC 61326-1: Portable Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A, RCM IEC 61326-1
Wireless
Yes
Multiple Lens Option
Yes
Articulating Lens
No
Display - IR Camera
3.5 in LCD
Charger Replacement
TI-SBC3B
NIST Certified
No
Included Charger
Yes
Picture In Picture
Yes
Ambient Temp. Range (F)
14 Degrees to 122 Degrees
Display Resolution - IR Camera
320 x 240 Pixels
Detector Resolution - Infrared
220 x 165 Pixels
Safety Rating
EN 61010-1: CAT None; Pollution Degree 2; EN 60825-1: Class 2; EN 60529; EN 62133
Temp. Range (C) - Infrared
-20 Degrees to 450 Degrees
Frame Rate - IR Camera
27 Hz
Laser Sighting
Yes
Temp. Accuracy (C) - Infrared
+/-2.0%
Image Notation
Voice
Thermal and Visible Light Blending
Yes
Temp. Accuracy (F) - Infrared
+/-2.0%
Alarm
Yes
Focus Distance - Infrared
Minimum of 0.15 m
Auto Power Off
No
Interface
Wireless
Minimum Temperature Measured Degrees C
-20 Degrees C
Laser Sighting Type
Single Dot
Lens Angles Included
28 Degrees
Minimum Temperature Measured Degrees F
-4 Degrees F
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Minimum Focus Distance
0.15 m
Calibration Certificate Type
Available Separately
Accuracy Degrees F
+/-2.0% of Reading
Maximum Temperature Measured Degrees C
50 Degrees C
Maximum Operating Temperature Degrees F
122 Degrees F
Battery Chemistry
Lithium Ion
Maximum Emissivity Setting
1.00
Battery Run Time
3.5 hr
Number of Batteries Required
1
Infrared Resolution
256 x 192
Maximum Temperature Measured Degrees F
842 Degrees F
Emissivity Adjustability
Adjustable
Batteries Included
Yes
Frame Rate
9 Hz, 27 Hz
Minimum Operating Temperature Degrees F
14 Degrees F
Portability
Handheld
Data Transfer Type
Wireless
Minimum Emissivity Setting
0.01
Digital Display Screen Type
LCD Touchscreen
Alert Type
Digital Display, Sound
Shop By
Hot Buys

Description

Thermal Camera, Frame Rate 9 Hz, 27 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 40 mK, Minimum Focus Distance 0.15 m, Minimum Operating Temperature Degrees F 14 Degrees F, Minimum Temperature Measured Degrees F -4 Degrees F
