Temperature Alarm, Coil Spring, Adjustable
Mfr # MTA-2
Zoro # G404393019
product price:
$
118.99
/ea
Free Shipping & Returns
Key Features
Width
4-1/2 in
Height
3-1/4 in
Product Type
Mechanical Temperature Monitor
Time Delay
14 min
Alarm Style
Audible
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MTA-2
- Zoro #
- G404393019
- UPC #
- 082075011518
- Country of Origin
- China
Dimensions
- Width
- 4-1/2 in
- Height
- 3-1/4 in
- Length
- 1 in
Details
- Item
- Temperature Alarm
- Product Type
- Mechanical Temperature Monitor
- Time Delay
- 14 min
- Alarm Style
- Audible
- Adjustable
- Adjustable
- Output Contact Default
- NO/NC
- Remote Alarm Connections
- Dry Contact 12V @ 50mA
- Contact Rating
- 50 mA at 12V DC
- Sensor Type
- Coil spring
- Accuracy
- +/-1.7 Degrees C, +/-3 Degrees F
- Number of Set Points
- Dual Point
- Alarm Temperature Range
- -6.7 Degrees to 37.8 Degrees C, 20 Degrees to 110 Degrees F
- Power Source Details
- None
- Scale
- Celsius, Fahrenheit
- Application
- CommercialResidential
- Number of Zones
- 1
- Set Point Type
- Dual Point
- Temperature Units
- Celsius, Fahrenheit
- Temperature Setting - Maximum
- 110 Degrees F
- Temperature Setting - Minimum
- 20 Degrees F
- Adjustability
- Adjustable
Description

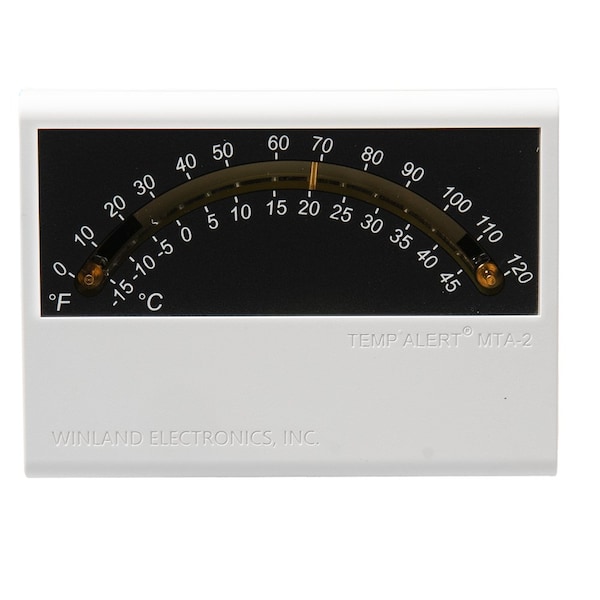

The Temp°Alert® MTA-2 is a reliable and economical temperature-monitoring device that can be used in residential or commercial applications. Integrate into a security panel, set the desired temperature parameters, and have peace of mind that you will be notified of an incident where corrective action is needed. Alarm contacts may not function outside of the alarm use range. Non-condensing environments only. Do NOT put device into cooler/freezer environments. Use an EnviroAlert® or EnviroAlert Professional® with a wired sensor for cooler/freezer environments.
- • No power required to operate and connects to most hard wire or wireless alarm systems.
- • Separate output for high and low alarm signals.
- • Do not place the Temp°Alert® MTA-2 into cooler/freezer environments. Non-condensing environments only.
- • Normally Open (N.O.) device with gold plated dry contact outputs (not for high voltage use)
- • Contact output rating of 12V DC at 50mA
- • Unit operating range of (1) for alarm use of 20 to 110 °F (-6.7 to +43.3 °C) and (2) for display use of 0 to 120 °F (-17.8 to +48.9 °C)
- • Minimum temperature span of 10 °F (5.6 °C)
- • Temperature accuracy of ±3.0 °F (±1.7 °C)
- • Temperature response time of TC = 14 minutes.
