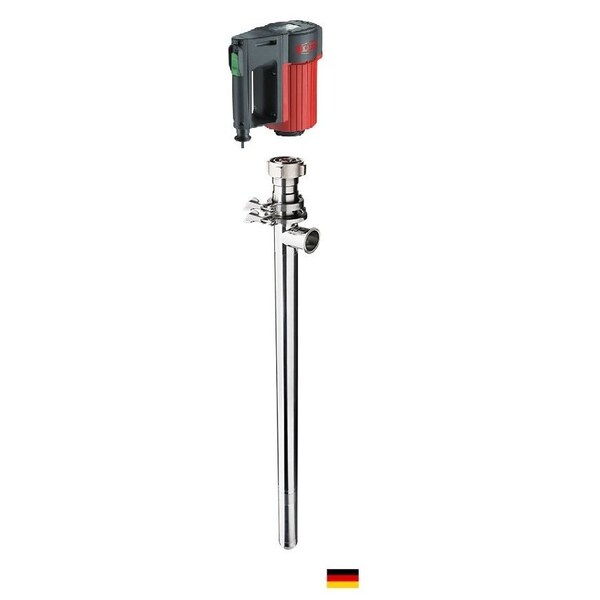

Drum Pump Tube, Stainless Steel, 47in Long, Motor 120V, 60Hz, 1ph 800 Watts Power

  • Mfr # 24-ZORO0314

  • Zoro # G711628583

product price:
$
7,652.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

For Use With
Chemical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Outlet Size
2 inch tri clamp with adapter to 1.5 inch hose barb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24-ZORO0314
Zoro #
G711628583
UPC #
-
Country of Origin
Germany

Dimensions

Outlet Size
2 inch tri clamp with adapter to 1.5 inch hose barb
Hose Length
47 inch (1000 mm)
Power Cord Length (Ft.)
16 ft long with plug
For Container Size
Totes / IBC tanks or smaller
Outside Diameter
2.01 inch (53 mm)

Details

For Use With
Chemical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Motor Enclosure
Polypropylene
Max. Flow GPM
12 gpm
Max. Pressure
116 psi
Amps
7.5
Motor Power
800 Watts
Material
316 S.S.
Weight
29 Lbs

Description

F570-1200-FKMo-FKM-SP-TS-R52-PTFE-G16, 47in pump tube with F457 motor 120V, 60Hz, 1ph, 800 Watts power. For high viscosity applications. For industrial applications. Not for sanitary / food applications. FLUX F570-1200-FKMo-FKM-SP-TS-R52-PTFE-G16, 47in drum pump in S.S./FKM construction, for use in totes/IBCs or smaller containers. Includes F457 motor 120V, 60Hz, 1ph, 800 Watts power, adapter for pump discharge from 2 inch tri clamp to 1.5 inch hose barb. Details: 1200 mm 47in tube length for use in totes/IBCs or smaller containers, 53 mm 2.1in tube OD, progressive cavity pump, mechanical seal, PTFE stator, Max flow: 12 GPM*, Max pressure: 116 psi*, Viscosity 500 - 30,000 cPs Max, Temp range: 32 Degrees F - 212 Degrees F.. *As tested with water at 68 Degrees F at pump outlet with full, open discharge +/- 10%; Max pressure measured with closed outlet. Performance will vary based on type of liquids or products being transferred.. For High Viscosity Products
