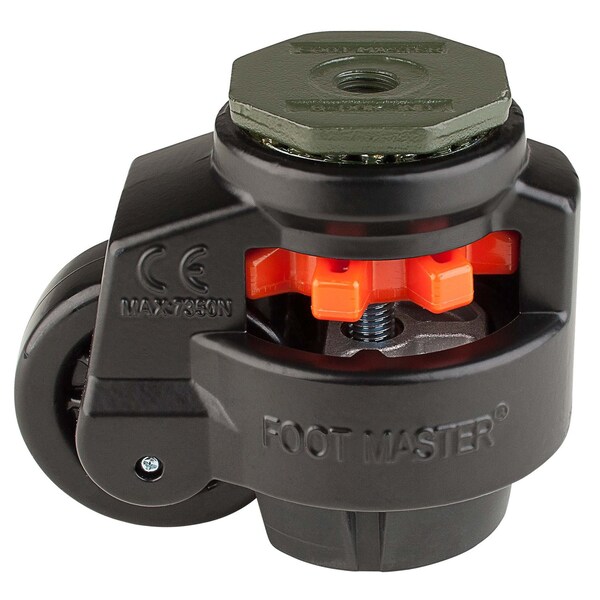

Leveling Caster, Alum, Swivel, M16
- Mfr # GD-100-S-NYN-FBL
- Zoro # G1875917
product price:Â
$
42.69
/ea
Key Features
Wheel Width
30 mm
Frame Finish
Powder Coated & Zinc Galvanized
Includes
Mounting Hardware
Frame Material
Aluminum
Wheel Dia. (In.)
75 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- GD-100-S-NYN-FBL
- Zoro #
- G1875917
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Frame Finish
- Powder Coated & Zinc Galvanized
- Includes
- Mounting Hardware
- Frame Material
- Aluminum
- Color
- Black
- Caster Mounting Type
- Stem
- Wheel Material
- Nylon
- Series
- GD Series
- Finish
- Black
- Capacity
- 1650 lbs
- Weight
- 3.6 lbs
- Adjustment Style
- Thumbwheel
- Foot/Pad Material
- NBR Rubber
- Number of Wheels
- 1
- Operating Temperature Range
- 14 Degrees to 194 Degrees F
- Wheel/Tread Hardness Rating
- Soft
- Caster Stem Type
- Threaded Bolt Hole
- Item
- Leveling Caster
- Caster Frame Material
- Aluminum
- Load Rating
- 1,764 lb
- Swivel Raceway Type
- Double Ball
- Wheel/Tread Material
- Nylon
- Caster Sub-Type
- Swivel
- Features
- Anti-Vibration NBR Pad, Hardened Bearing Seats in the Swivel Head
- Wheel/Tread Hardness
- 70 Shore D
Dimensions
- Wheel Width
- 30 mm
- Wheel Dia. (In.)
- 75 mm
- Overall Height
- 132 mm
- Height
- 120 mm
- Bolt Hole Diameter
- 53 mm
- Thread Size
- M16
- Wheel Diameter1
- 75 mm
- Maximum Leveling Height
- 12 mm
