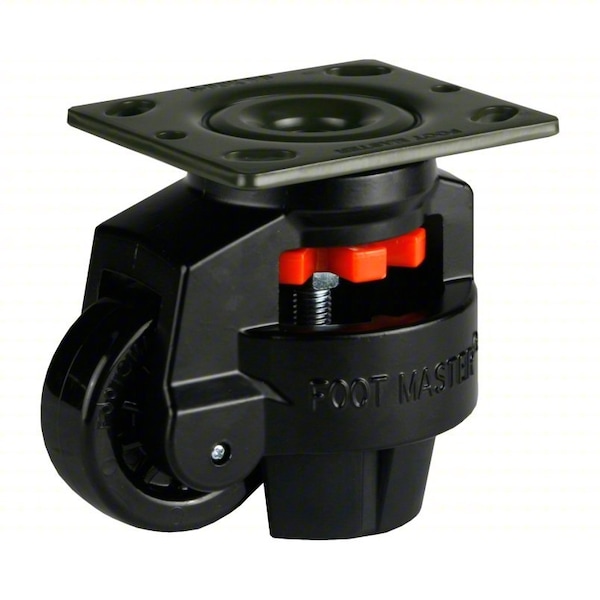

Plate Caster, Nylon, 120mm H
Mfr # GD-100F-BLK-PUS
Zoro # G411745153
product price:Â
$
49.99
/ea
Key Features
Wheel Width
30 mm
Standards
RoHS Compliant
Inside Bolt Hole Spacing
2 3/4 in x 2 3/4 in
Number of Wheels
1
Mounting Bolt Dia.
11 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GD-100F-BLK-PUS
- Zoro #
- G411745153
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Wheel Width
- 30 mm
- Mounting Bolt Dia.
- 11 mm
- Wheel Dia.
- 75 mm
- Mounting Height
- 120 mm
- Mounting Plate Size
- 3.73 in x 3.73 in
Details
- Standards
- RoHS Compliant
- Inside Bolt Hole Spacing
- 2 3/4 in x 2 3/4 in
- Number of Wheels
- 1
- Caster Frame Material
- Aluminum
- Wheel/Tread Hardness Rating
- Soft
- Load Rating
- 1,764 lb
- Outside Bolt Hole Spacing
- 2 3/4 in x 2 3/4 in
- Features
- Anti-Vibration NBR Pad, Hardened Bearing Seats in the Swivel Head, Height Adjustment, Ivory-Colored Frame, Pressed Steel Plate
- Item
- Plate Caster
- Number of Mounting Holes
- 4
- Caster Mounting Type
- Plate
- Adjustment Style
- Handle/Spanner
- Swivel Raceway Type
- Double Ball
- Operating Temperature Range
- 14 Degrees to 194 Degrees F
- Wheel/Tread Material
- Nylon
- Wheel Hardness Rating
- 70 Shore D
- Load Capacity - Maximum
- 1,764 lb
Description
Plate Caster, Load Rating 1,764 lb, Wheel Dia. 75 mm, Wheel Width 30 mm, Wheel/Tread Material Nylon, Number of Wheels 1
