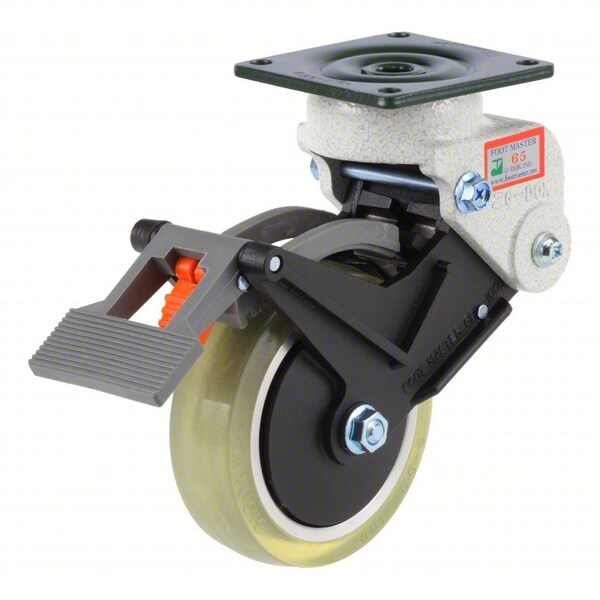

Plate Caster, Swivel, Polyurethane, 160mm H

Mfr # GDS-100B-65SF
Zoro # G311745284

100.99

Free Shipping & Returns

Key Features

Includes

Brake

Wheel Dia.

100 mm

Caster Brake Type

Swivel With Brake

Caster Mounting Type

Plate

Inside Bolt Hole Spacing

2.28 in x 2.28 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: GDS-100B-65SF
Zoro #: G311745284
UPC #: -
Country of Origin: Korea, Republic of

Dimensions

Wheel Dia.: 100 mm
Mounting Height: 160 mm
Wheel Width: 30 mm
Mounting Bolt Dia.: 7 mm
Mounting Plate Size: 2.87 in x 2.87 in

Details

Includes: Brake
Caster Brake Type: Swivel With Brake
Caster Mounting Type: Plate
Inside Bolt Hole Spacing: 2.28 in x 2.28 in
Caster Frame Material: Aluminum
Load Rating: 220 lb
Features: Fine Shock Absorption Function With Special Rubber (Select Between A65 and A75), Special Wheel Axle for Reinforce of Smooth Rolling
Number of Wheels: 1
Item: Plate Caster
Wheel/Tread Hardness Rating: Firm
Number of Mounting Holes: 4
Caster Sub-Type: Swivel
Standards: RoHS Compliant
Swivel Raceway Type: Double Ball
Wheel/Tread Material: Polyurethane
Brake Location: Face
Operating Temperature Range: 14 Degrees to 194 Degrees F
Wheel Bearing Type: Ball
Wheel Core Material: Aluminum
Frame Color: Off-White
Load Capacity - Maximum: 220 lb
Wheel Hardness Rating: 90 Shore A
Caster Features: Shock-Absorbing

Description

Swivel, Plate Caster, Load Rating 220 lb, Wheel Dia. 100 mm, Wheel Width 30 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Number of Wheels 1, Caster Brake Type Swivel With Brake
